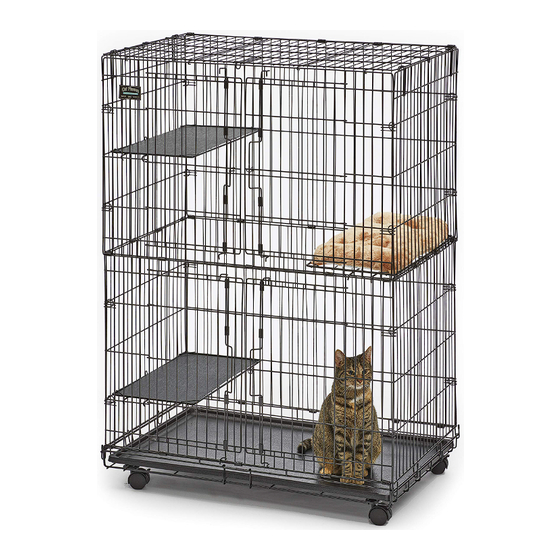

Assembly Instructions for Model Number 130
IMPORTANT INFORMATION
Remove collars, tags, and leads from pet before placing it in the pen to prevent possible entanglement.
Unwrap and remove all parts from the box. Keep the box and packing material until the product is assembled. In case of return or
exchange, failure to return product in similar condition as received could result in limited reimbursement. Please save sales receipt
as proof of purchase for warranty purposes. Check to ensure you have all the parts below. If you discover any parts are missing,
immediately call our toll-free service helpline at 1-800-428-8560 (Monday - Friday 9 a.m. to 4 p.m. EST) or email us at
info@midwesthomes4pets.com.
To protect the finish of your playpen and the bottom pan, use only mild, non-abrasive cleaners and water. Any coarse
scrubbing or abrasive materials could damage the finish.
For instructions in Spanish and French, please visit www.midwesthomes4pets.com.
PARTS IDENTIFICATION
NOTE: You will need a Phillips head screwdriver for assembly.
A.
Playpen - Wire Structure
A
F.
Plastic Caster Plate (4)
I.
Lock Washers (16)
B.
C.
Plastic Pan
Shelf (3)
G.
Steel Caster Plate (4)
J.
Washers (16)
800-428-8560
midwesthomes4pets.com
3142 S. Cowan Rd.
Muncie, Indiana 47302
D.
Bed (1)
C
E
H.
Screws (16)
K.
Nuts (16)
F
G
E.
Casters (4)
D
H
I
J
K
1.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midwest Cat Playpen 130
Summary of Contents for Midwest Cat Playpen 130
- Page 1 800-428-8560 midwesthomes4pets.com 3142 S. Cowan Rd. Muncie, Indiana 47302 Assembly Instructions for Model Number 130 IMPORTANT INFORMATION Remove collars, tags, and leads from pet before placing it in the pen to prevent possible entanglement. Unwrap and remove all parts from the box. Keep the box and packing material until the product is assembled. In case of return or exchange, failure to return product in similar condition as received could result in limited reimbursement.
- Page 2 ASSEMBLY INSTRUCTIONS Note: You will need a large floor space to assemble your playpen. Although it can be assembled by one person, due to its size, you may find it easier to assemble the playpen with two people. Remove the folded pen from the carton and cut the plastic ties.
- Page 3 Before moving to Step 6, be sure the bottom of the Back Panel is rolled to the inside of the pen as shown. If you must roll it from the outside to the inside, be sure to double check that the hooks you secured in Step 4 did not become disengaged.
- Page 4 Lift the Front Panel into the upright position. As you did in Step 5, make sure the bottom of the Front Panel is rolled to the inside of the pen. The Front Panel has four rounded hooks on each side. Lift and lower each Side Panel into the hooks of the Front Panel as you did in Step 4.
- Page 5 Next, secure each End Panel to the Top Panel. Each End Panel has two hooks, one in the front and one in the back; secure these over the Top Panel. The Top Panel has a hook in the middle; secure this over the End Panel. Wrap the hooks on the Side Panels over the Top Panel.
- Page 6 C. MIDWEST may require the purchaser to present the sales receipt or other proof of purchase prior to authorizing any return or replacement. No returns or replacements will be permitted without proper authorization. If a return or replacement is authorized, you may be requested to return the item to MIDWEST or to make the item available for pickup by MIDWEST.
