Midwest Feline Nuvo 139S-TN Assembly Instructions

Assembly Instructions for Model Number 139S-TN (Summit)
Pour des instructions en français, veuillez visiter : https://www.midwesthomes4pets.com.
Para obtener instrucciones en español, por favor visite: https://www.midwesthomes4pets.com.
IMPORTANT INFORMATION
Unwrap and remove all parts from the box. Keep the box and packing material until the product is assembled. In case of
return or exchange, failure to return product in similar condition as received could result in limited reimbursement. Please
save sales receipt as proof of purchase for warranty purposes. Check to ensure you have all the parts below. If you discover
any parts are missing, immediately call our toll-free service helpline at 1-800-428-8560 (Monday - Friday 9 a.m.
to 4 p.m. EST) or at info@midwesthomes4pets.com.

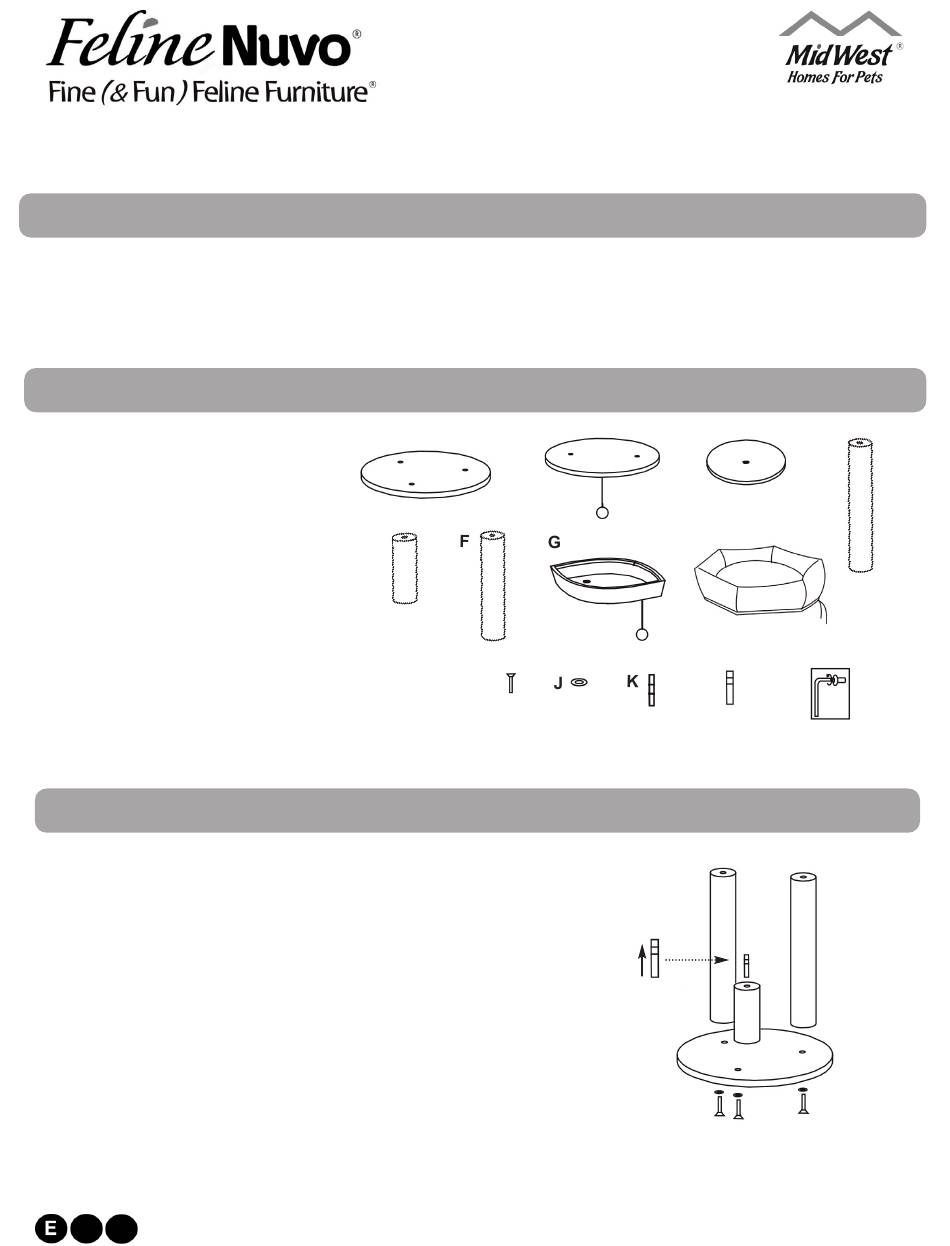

PARTS IDENTIFICATION
A - Base
B - Large Platform
C - Small Platform (2)
D - Long Post (2)
E - Short Post (2)
F - Medium Post
G - Cat's Eye Platform
H - Bolstered Drawstring Pillow (2)
I - Long Screw
(2"/ 50mm)
J - Washer
K - Dual Screw w/ Even Threads
L - Dual Screw w/ Uneven Threads
M - Allen Wrench
ASSEMBLY INSTRUCTIONS
1.
Place the Washer (J) over each of the Long Screws (I). Push the
Washer and Screws up through the bottom of the Base (A). Twist
the two Long Posts (D) and one Short Post (E) onto the screws and
secure them to the Base. Place a Dual Screw w/ Uneven Threads
(L) into the Short Post. The short threads should point upward.
A
E
(3)
(2)
(2.8"/ 70mm)
(3)
(2.4"/ 60mm)
800-428-8560
midwesthomes4pets.com
3142 S. Cowan Rd.
Muncie, Indiana 47302
B
I
C
D
H
M
L
1
