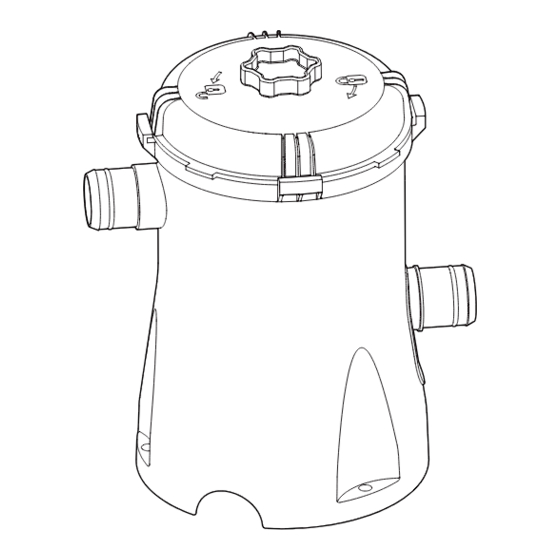

Polygroup SUMMER WAVES RP400 Owner's Manual

Cartridge filter pump for above ground swimming pools
Hide thumbs Also See for SUMMER WAVES RP400:

Advertisement

Quick Links

Download this manual
SUMMER WAVES
CARTRIDGE FILTER PUMP
READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
For answers to common questions, setup videos and
troubleshooting tips, please visit support.polygroupstore.com
or call Customer Service: +1 (888) 919-0070
DO NOT RETURN PRODUCT TO STORE
Should you encounter a problem with your Polygroup
be made directly to Polygroup
. For any setup and troubleshooting issues, please visit support.polygroupstore.com. Customer Service: +1 (888) 919-0070.
®
You may be asked to return all or part of the product for inspection and/or repair. Do not return any product to Polygroup
Merchandise Authorization number.
DISTRIBUTED BY: Polygroup
Should you encounter any problems, contact Customer Service at +1 (888) 919-0070 from 8AM to 5PM MST, Monday-Friday.
FOR ABOVE GROUND SWIMMING POOLS
RP350 / RP400 Models
Product, please DO NOT return the product to the place of purchase. All warranty claims must
®
Trading Limited Unit 606, 6th Floor, Fairmont House, No.8 Cotton Tree Drive, Central, Hong Kong
®
Extended operating days and hours during peak season requirements.
OWNER'S MANUAL
OWNER'S MANUAL
®
To order parts and accessories,
please visit
www.polygroupstore.com
without a Return
®
09C3A4USA200
© 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUMMER WAVES RP400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Polygroup SUMMER WAVES RP400

Summary of Contents for Polygroup SUMMER WAVES RP400

  • Page 1 . For any setup and troubleshooting issues, please visit support.polygroupstore.com. Customer Service: +1 (888) 919-0070. ® You may be asked to return all or part of the product for inspection and/or repair. Do not return any product to Polygroup without a Return ®...
  • Page 2 18 ~19 ASME compliant suction fitting info Limited Warranty Polygroup Trading Limited (hereinafter “Polygroup ”) makes products at the best quality we are able to offer. All Polygroup products ® ® ® have been inspected against defects in materials and workmanship prior to leaving factory. Polygroup is happy to offer warranty for the ®...
  • Page 3 CUSTOMERS WHO PURCHASE POOLS MAY BE REQUIRED BY LOCAL OR STATE LAW TO INCUR ADDITIONAL EXPENSES WHEN INSTALLING A POOL, IN ORDER TO COMPLY WITH STATE OR LOCAL LAWS REGARDING FENCING AND OTHER SAFETY REQUIREMENTS. CUSTOMERS SHOULD CONTACT THEIR LOCAL BUILDING CODE ENFORCEMENT OFFICE FOR FURTHER DETAILS. POLYGROUP IS NOT RESPONSIBLE FOR ANY ADDITIONAL EXPENSES THAT YOU MAY INCUR.
  • Page 4 Turn on the pump for the recommended hours daily. If you are unsure of the time frames please refer to support.polygroupstore.com for the recommended Pump Operation Hours based on pool types and sizes. Clean and replace filter cartridge frequently. Replace only with a genuine Polygroup / Summer Waves Brand filter cartridge.
  • Page 5 OWNER’S MANUAL First Aid 1. Keep a working phone and a list of emergency numbers near the pool. 2. Become certified in cardiopulmonary resuscitation (CPR). In the event of an emergency, immediate use of CPR can make a lifesaving difference. Special Warning 1.
  • Page 6 ASME American Society of Mechanical Engineers Two Park Avenue, New York NY 10016-5990 Contact: 800-843-2763 (U.S. & Canada) 973-882-1170 (outside North America) www.asme.org NSPI National Spa and Pool Institute (see APSP) UL Underwriters Laboratories 333 Pfingsten Road,Northbrook IL 60062-2096 Contact: 877-854-3577 or 847-272-8800 www.ul.com NSF NSF International P.O.
  • Page 7 3. DO NOT use this product to dispense powdered chlorine, shock treatment, or any other type of chemicals as damage to the pump, filter cartridge, and pool will occur. 4. The RP Series Filter Pump systems are manufactured by Polygroup and ETL control number 4000608 and 4006317 - double insulated and grounded - 120 Volts ®...
  • Page 8 RP350 / RP400 RETURN FITTING SUCTION FITTING...
  • Page 9 OWNER’S MANUAL 17 A RP350 RP400...
  • Page 10 SETUP INSTRUCTIONS Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. WARNING: CLIMBING HAZARD! PLEASE PREVENT CHILDREN FROM CLIMBING ON THE FILTER CANISTER TO GAIN ACCESS TO THE POOL. 1.
  • Page 11 OWNER’S MANUAL 5. Lubricate the O-rings on the Suction Fitting and the Filter Pump Inlet 6. Lubricate the O-rings on the Return Fitting and the Filter Pump Outlet with petroleum jelly (not included). Connect the Hose from the with petroleum jelly (not included). Connect the Hose from Suction Fitting to the Filter Pump Inlet.
  • Page 12 USE OF PUMP 1. Locate a grounded receptacle at least 15 feet (4.5 m) away from the pool. GFCI Plug with 2. To turn on the Pump, plug in the GFCI power cord set to the power outlet. Timer Function 3.
  • Page 13 . Also, a well-maintained, clean cartridge assures you that your filter will always be ready to operate at peak efficiency. 9. Filter cartridges may be purchased at the store you purchased your pool from, or ordered from Polygroup at polygroupstore.com. Always replace with genuine ®...
  • Page 14 2. Use test kit daily to check pH and chlorine levels. Adjust accordingly using the required chemicals. NOTE: Excessive levels of chlorine or low pH levels will damage pool liner. 3. The pool can be cleaned using a garden hose powered vacuum from Polygroup or a pool supply store.
  • Page 15 OWNER’S MANUAL TROUBLESHOOTING GUIDE WARNING: TURN OFF THE PUMP AND UNPLUG THE POWER CORD BEFORE TROUBLESHOOTING THE FILTER PUMP. SYMPTOM CAUSE SOLUTION A Unit must be plugged into a 3-wire grounded power outlet. Press the reset button on A Unit not plugged in or the GFCI to start the pump.
  • Page 16 PUMP REMOVAL INSTRUCTIONS FOR TROUBLESHOOTING 1. First turn the pump off and unplug the main power cord of the system. Remove the RF Diverter from the Return Fitting and then seal the Return Fitting with the Service Plug , Hand tighten the Service Cap onto the Suction Fitting 2.
  • Page 17 OWNER’S MANUAL 5. Please see Pool Support - Filtration System Troubleshooting for the RP350/RP400 Filtration System at support.polygroupstore.com. PLEASE NOTE: Even if the rotor assembly is in perfect condition; if it is not seated properly between the volute housing and the pump it will not function correctly. 6.
  • Page 18 REPLACEMENT PARTS ORDERING INFO RP350 RP400 P58PF1520K01 P58PF1520K01 P58281283W05 P58281283W05 P58PF1510K01 P58PF1510K01 P58PF1430W05 P58PF1430W05 P58PF2820P01 P58PF2820P01 P58PF7800W05 P58PF7800W05 P58PF7790W05 P58PF7790W05 P58PF0620K01 P58PF0620K01 P58125036W01 P58125036W01 P58220221W05 P58220221W05 P58534000W05 P58534000W05 P58031000K01 P58031000K01 P58PF5290W05 P58PF5290W05 P58096000K01 P58096000K01 P58530000W05 P58530000W05 P53F0350C001 P58F0400C000 P581041037PR P581041037PR P581160049B1 P58050400001 P58PF5270K01...
  • Page 19 OWNER’S MANUAL RP350 RP400 P58030001K01 P58030001K01 P58031001K01 P58031001K01 P5816400290A P5816400290A P584150006W1 P584150006W1 P58PF5620P01 P58PF5620P01 P58003689W05 P58003689W05 P53FR035AW05 P53FR0400W05...
  • Page 20 ASME COMPLIANT SUCTION FITTING INFORMATION PSF-100A and PSF-100B Suction Outlet Fitting (For Aboveground Pool) 1. PSF-100A and PSF-100B Suction Outlet Fitting are certified by IAPMO in accordance with the ASME/ANSI/APSP/ICC-16 2011 Suction Fittings for Use in Swimming Pools, Wading Pools, Spas, and Hot Tubs. 2.
