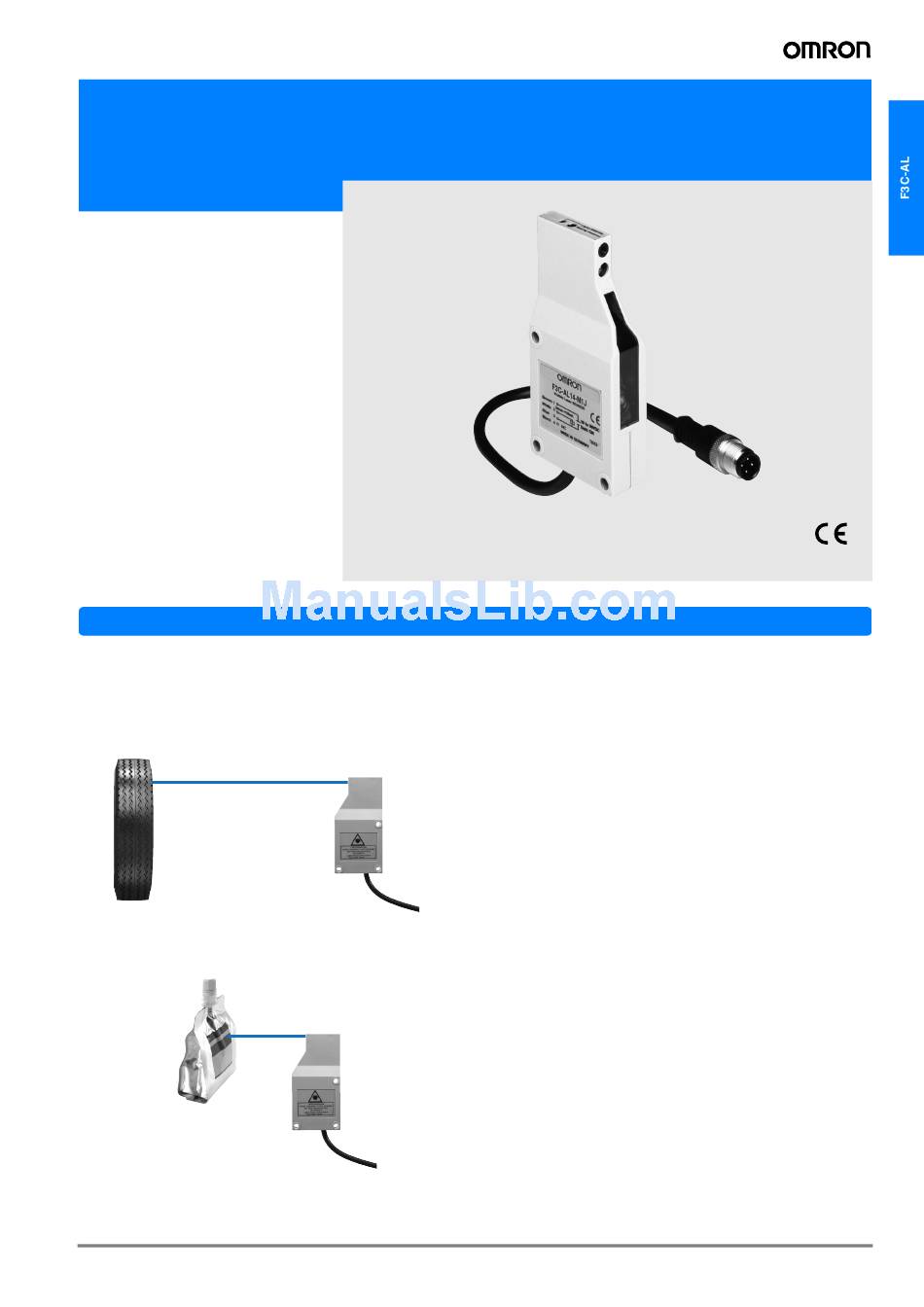

Distance setting laser photoelectric sensor
F3C-AL
• 700 mm max setting distance
• small visible Laser light spot for simple
adjustment
Clear red spot ensures easy setting.
With its wide setting range 170 to 700 mm, F3C-AL is compat-
ible with standard conveyors. In the setting distance of 700
mm, the distance can be set easily with a 1.5x4 mm red spot.
700mm
Secure detection of shiny surface
Ensures stable detection of a 45-degree shiny surface. Detec-
tion of pouches, laminated packages or like minimizes setup
change time.
170mm
F3C-AL
Features
Unaffected by a shiny background.
Insensitive to shiny objects in the background, the Sensor can
be installed in any place.
Small Black/White error:
2% (Setting distance 300 mm),
8% max. (Setting distance 500 mm)
A little black/white error saves adjustment time during setup
change.
Full hysteresis detection range 0.5% max.
(for white paper)
6-turn adjuster ensures ease of adjustment.
A-177
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omron F3C-AL
Summary of Contents for Omron F3C-AL
- Page 1 Insensitive to shiny objects in the background, the Sensor can ible with standard conveyors. In the setting distance of 700 be installed in any place. mm, the distance can be set easily with a 1.5x4 mm red spot. Small Black/White error: 2% (Setting distance 300 mm), 700mm 8% max.
-
Page 2: Ordering Information
Application Detection of food being transferred Detection of wafers through view port (Reflective model) Since it is a reflection type, a viewport is OK with one place! The cup of yogurt Detection of the object Wafer between 150 to 700 mm max. - Page 3 3 times each in X, Y, and Z directions Protective structure IEC Standard IP40 Connection method M12 connector joint type (standard cable length 200 mm) / 4 x 0.34 mm² (PVC) Weight (packed state) Approx. 80 g Case Material...
- Page 4 Characteristic data (typical) Parallel operating range Black/White error Short distance characteristic chart Sensing object Setting distance 700mm White paper: reflectivity 90 % 170mm Black paper: reflectivity 5 % 150mm 400mm 700mm 600 700 Distance X (mm) 185mm 90mm 70mm 50mm...
-
Page 5: Output Circuit Diagram
Output Circuit Diagram NPN output Operating status of Mode Model Timing chart Output circuit output transistor selection 10 to 30 VDC Light Stability indicator indicator Load (red) (green) (Relay) 150 mA Incident max. Interrupted Main Light circuit Connect B indicator... -
Page 6: Sensitivity Adjustment
1. Output stable ON (red LED on) 2. Output stable OFF (red LED off) Best performance can be achieved if the sensing object is located closer than -10 % of the setting distance or the shiny background is fixed +10 % behind the switching position. A-182... -
Page 7: Safety Precaution
F3C radiates a visible-light laser. Do not look into it directly. room, or the inter- lock of the door. Use F3C so that the light path of the laser beam is terminated. Do not keep the If there is a mirror-smooth reflector in the light path, confine... -
Page 8: Dimensions (Unit: Mm)
Mounting Brackets ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. E510-E2-01-X In the interest of product improvement, specifications are subject to change without notice.
