Summary of Contents for Uniden UH6160

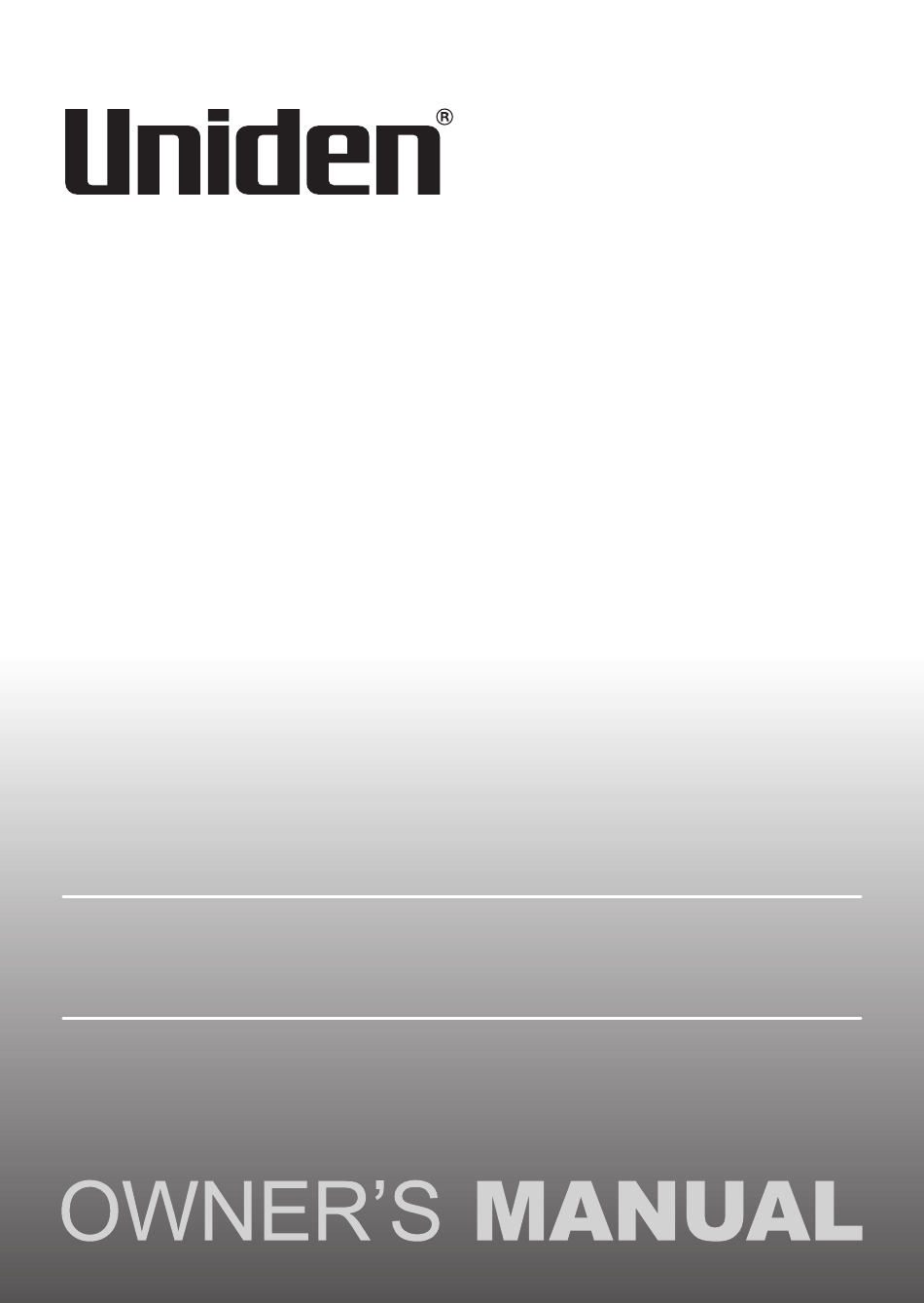

- Page 1 UH6160 Remote Speaker MIC UHF CB Transceiver For more exciting new products please visit our website: Australia: www.uniden.com.au...
-
Page 2: Table Of Contents
Contents Introduction Controls & Connectors Indicators Included with your UH6160 Transceiver Connecting the Microphone Mounting the MIC Hanger Operation Turning on the Power Setting the Auto Squelch | Monitor Selecting a Channel Transmitting Enabling the Instant Priority Channel Recalling the Instant Channel... -
Page 3: Introduction
Introduction The Uniden UH6160 is designed to provide you with years of trouble free service. Its rugged components and materials are capable of withstanding harsh environments. Please read this Operating Manual carefully to ensure you gain the optimum performance of the unit. -
Page 4: Controls & Connectors
Controls & Connectors UNIDEN UH6160 UHF CB Transceiver... - Page 5 EMG - Emergency CH 05/35 RJ45 plug to Base | - Add/Remove CH from Detachable RJ45 plug Scan Memory MIC Jack Cover - Channel/Select Down Button Indicates 2nd function SCAN - Scan Button (press & hold) UNIDEN UH6160 UHF CB Transceiver...
-
Page 6: Indicators
Channel is in Scan Memory (Repeater) /Flashes during Scan Replay function - Play BCL - Busy Channel Lockout recorded conversation DCS - Digital Coded Squelch Power Indicator - is set for current channel High(Hi)/Low(Lo) MON - Monitor Mode UNIDEN UH6160 UHF CB Transceiver... -
Page 7: Included With Your Uh6160 Transceiver
DC Power Cord mounting screws with fuse Optional Accessories: • UHF Antenna • External Speaker • Earpiece Mic Visit the UH6160 page on the website for more information on the availability of optional accessories; www.uniden.com.au for Australia UNIDEN UH6160 UHF CB Transceiver... -
Page 8: Connecting The Microphone
MIC plug towards the MIC cord and at the same time tug on the MIC cord to draw back the MIC plug. UNIDEN UH6160 UHF CB Transceiver... -
Page 9: Mounting The Mic Hanger
MIC hanger will determine which parts to use. Conventional Mounting with Screws Use the front part of the MIC Hanger only. Locate a suitable mounting position and mark and drill two 3mm holes. Fix the MIC Hanger into place with screws. UNIDEN UH6160 UHF CB Transceiver... - Page 10 Secure the front and back pieces of the MIC Hanger using the supplied binding screws. Locate a suitable mounting position. Remove (peel off) the plastic covering the adhesive tape on the flat area of the MICHanger back piece and then press firmly to the mounting position. UNIDEN UH6160 UHF CB Transceiver...
- Page 11 UNIDEN UH6160 UHF CB Transceiver...
-
Page 12: Operation
If the input voltage falls below 10VDC, LO DC flashes for every 2 seconds. The power turns off automatically if voltage falls below 8.5VDC. Switch your UH6160 OFF and disconnect it from the power source, before locating the cause of the power supply problem. UNIDEN UH6160... -
Page 13: Setting The Auto Squelch | Monitor
The squelch setting flashes. 2. Press to change the setting. 3. Press [SQL] again to store the setting. Monitor Press and hold [SQL] to open the squelch and receive all weak signals. Press and hold [SQL] to cancel. UNIDEN UH6160 UHF CB Transceiver... -
Page 14: Selecting A Channel
Hold the microphone approx. 7cm from your mouth. Press the microphone’s [PTT] button and speak normally across (not into) the microphone. Release the [PTT] button to end the transmission and listen for a reply. UNIDEN UH6160 UHF CB Transceiver... -
Page 15: Enabling The Instant Priority Channel
You may select from 5 types of tones (see p.21). Current regulations require calling tones to be restricted to one transmission per minute. If a second transmission is attempted within one minute then an error tone will sound. NOTE UNIDEN UH6160 UHF CB Transceiver... -
Page 16: Triple Watch
If there is a barrier that partially blocks your transmitted signal, the probability of another radio receiving the signal is very slim. Hills, tall buildings, metallic structures,...etc tend to act as a screen between radios. Standard Operation without the aid of a Repeater station. UNIDEN UH6160 UHF CB Transceiver... -
Page 17: Operating The Uhf Cb Radio In Duplex Mode
Duplex mode. 3. Press and hold [MENU] again on the repeater channel to disable Duplex mode. Check with your local Retailer or ACMA (AUS) / RSM (NZ) website for information on available repeaters. NOTE UNIDEN UH6160 UHF CB Transceiver... -
Page 18: Scanning
To deactivate SCAN, press [SCAN]. If SCAN is deactivated while on an active channel, the UHF CB Radio will stay on that active channel. If no channels are active, the UHF CB Radio will reinstate the starting channel. NOTE UNIDEN UH6160 UHF CB Transceiver... -
Page 19: Group Scan (Gs) Mode
If scanning stops on a channel which is not a Priority Channel, UHF CB Radio will continue monitoring the Priority Channel for activity along with listening to the active one. To deactivate SCAN, press [SCAN]. UNIDEN UH6160 UHF CB Transceiver... -
Page 20: Setting A Priority Channel
Select the scan mode (OS or GS) you wish to add/remove channels from scan memory. Select the channel you want to add/remove. Press and hold [EMG] to add/remove. The mem icon appears or disappears and a short tone. UNIDEN UH6160 UHF CB Transceiver... -
Page 21: Selecting The Call Tone
When the function is enabled, the “ ” icon will appear on screen. If a button is not pressed within 5 seconds the UHF CB Radio will automatically save the selected option and exit the Menu Mode. NOTE UNIDEN UH6160 UHF CB Transceiver... -
Page 22: Instant Replay Function
Instant Replay Playback. • Older recordings are automatically over written when new recordings are stored. NOTE • Most received communications are short and the 1 minute buffer may contain several recordings. • Tranmission (TX) are not recorded. UNIDEN UH6160 UHF CB Transceiver... -
Page 23: Roger Beep
Remote SPK/MIC to select the desired CTCSS code 01 - 50. Press [DCS/CTCSS] once to store the new setting. To turn off CTCSS (or DCS) select the off (oF) code during setting selection. UHF CB Transceiver UNIDEN UH6160... -
Page 24: Dcs (Digital Coded Squelch)
1. Press [MENU] eight times. The display brightness (br) setting flashes. 2. Press to change the setting between 01 (min) to 03 (max). 3. Press the [MENU] button to save & move down in the menu mode. UHF CB Transceiver UNIDEN UH6160... -
Page 25: Key Beep On/Off
3. Press the [MENU] button to save & exit from the menu mode. If a button is not pressed within 5 seconds the UHF CB Radio will automatically save the selected option and exit the Menu Mode. NOTE UHF CB Transceiver UNIDEN UH6160... -
Page 26: Ctcss & Dcs Codes Tables
88.5 218.1 91.5 225.7 94.8 233.6 97.4 241.8 100.0 250.3 103.5 69.4 107.2 159.8 110.9 165.5 114.8 171.3 118.8 177.3 123.0 183.5 127.3 189.9 131.8 196.6 136.5 199.5 141.3 206.5 146.2 229.1 151.4 254.1 156.7 UNIDEN UH6160 UHF CB Transceiver... - Page 27 DCS codes table DCS Code DCS Code DCS Code Code No. Code No. Code No. (Octal) (Octal) (Octal) UNIDEN UH6160 UHF CB Transceiver...
-
Page 28: Uhf Cb Channel Guidelines
The above situations are not a fault of the radio but a symptom of mixed wideband and narrowband radios in current use. It is expected that as the number of older wideband radios in use drops this issue will be reduced. UHF CB Transceiver UNIDEN UH6160... -
Page 29: Uhf Cb Channels & Frequencies
477.050 476.575 477.325 (CH 37) 477.075 476.600 477.350 (CH 38) 477.100 476.625 477.125 476.650 477.150 476.675 477.175 476.700 477.200 476.725 477.225 476.750 477.250 476.775 477.275 476.800 477.300 476.825 477.325 476.850 477.350 476.875 477.375 476.900 477.400 UHF CB Transceiver UNIDEN UH6160... - Page 30 477.0625 476.5875 477.3375 (CH 77) 477.0875 476.6125 477.3625 (CH 78) 477.1125 476.6375 477.1375 476.6625 477.1625 476.6875 477.1875 476.7125 477.2125 476.7375 477.2375 476.7625 477.2625 476.7875 477.2875 476.8125 477.3125 476.8375 477.3375 476.8625 477.3625 476.8875 477.3875 476.9125 477.4125 UHF CB Transceiver UNIDEN UH6160...
-
Page 31: Warranty
(“Uniden Aust”). Terms of Warranty: Uniden Aust warrants to the original retail purchaser only that the UH6160 (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below. - Page 32 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 33 THANK YOU FOR BUYING A UNIDEN PRODUCT. © 2023 Uniden Australia Pty Limited. Printed in PRC.
