Summary of Contents for Uniden Handheld UHF Transceiver UH076SX

  • Page 1 UH076SX Handheld UHF Transceiver OWNER’S MANUAL...
  • Page 2: Lithium Ion Battery Pack Warning

    WATERPROOF: JIS7 Uniden's UH076SX radio is designed to meet the water proofing standard of JIS7. This Means: Being defined as having no ingress of water when immersed at 1 metre for 30 minutes. The UH076SX will only meet this rating if fully assembled and all rubber seals and bungs are well maintained and correctly fitted.
  • Page 3: Table Of Contents

    Introduction Features ...2 Included in your Package ...3 Optional Accessories ..3 Getting Started Mounting the Drop-in Charger ...4 Attaching the Antenna ...4 Attaching the Battery Pack ...5 Attaching the Beltclip ...5 Charging the Battery Pack...6 Battery Level Display...7 SPKR/MIC Jack Cap ...7 Connecting the SPKR/MIC ...7 Operation Power On/Off ...8...
  • Page 4: Features

    INTRODUCTION The UH076SX is a JIS7 Waterproof, portable two-way UHF-CB radio. It is compact, rugged and fits easily in your hand. This hand held UHF radio will give you consistent, outstanding performance in virtually all conditions and situations. To ensure that you get the most from the UH076SX features, please read this operating guide carefully before using the unit.
  • Page 5: Included In Your Package

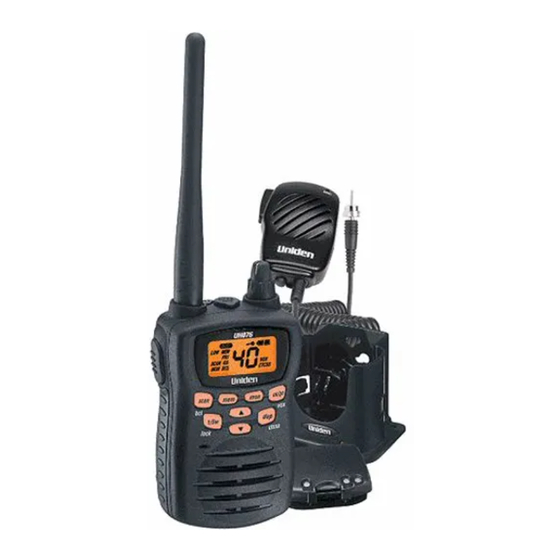

    INCLUDED IN YOUR PACKAGE AC Adapter Antenna UH076SX (AAD-075S(M)) Drop-in Charger Lithium Battery Beltclip (DT076) (BP075) Speaker Mic Wrist Strap and Printed Material Mounting Screws (SM078) If any of these items are missing from the box, contact your place of purchase, immediately. OPTIONAL ACCESSORIES VOX Headset Heavy Duty Speaker Mic...
  • Page 6: Getting Started

    GETTING STARTED Mounting the Drop-in Charger 1. Mount the drop-in charger to either a table or wall. Table: Attach the drop-in charger using the mounting screws and washers. Wall: Insert the two mounting screws into the wall keeping the same space as the holes on the charger.
  • Page 7: Attaching The Battery Pack

    Attaching the Battery Pack 1. Place the battery pack onto the back of the radio. It will only fit in one way. 2. Snap the battery release clip until it clicks. Be sure the battery pack fits tightly against the UH076SX body. Avoid exposing the Lithium Ion battery, attached or unattached to the radio, in direct sunshine, heated cars, or in areas with temperatures below –20°C (–4°F) or above +60°C (+140°F).
  • Page 8: Charging The Battery Pack

    4. To take the beltclip off the radio, turn it and slid it up. Charging the Battery Pack Your radio is powered by a specially designed Lithium Ion battery pack. Before operating the UH076SX, charge the Lithium Ion battery pack for 5 hours without interruption in the drop-in charger.
  • Page 9: Battery Level Display

    Battery Level Display The BATTERY icon in the top right hand corner of the screen indicates the UH076SX current battery voltage level at all times. The battery level is displayed in 4 levels. LEVEL 4 Battery 100% full LEVEL 3 Battery approx.
  • Page 10: Operation Power On/Off

    See the Controls and Indicators page at the back of this operating guide for button and key operations. POWER ON/OFF To turn the unit ON, rotate the [ON/OFF VOL] clockwise. A channel number and battery level should appear on the display. To turn the unit OFF, rotate the [ON/OFF VOL] knob counter-clockwise.
  • Page 11: Roger Beep

    ROGER BEEP Roger Beep is a BEEP that is sent to notify the end of transmission (both PTT and VOX transmission.) Roger Beep can be heard through the speaker when Key Beep is on. Roger Beep is transmitted even if key beep is turned off. However Roger Beep will not be heard from the speaker.
  • Page 12: Squelch

    SQUELCH The squelch is used to eliminate any annoying background noise when there are no signals present. Make sure to first select a channel not in use before setting the squelch in your UH076SX UHF-CB radio. Think of squelch as a gate. Turn [SQ] fully clockwise.
  • Page 13: To Transmit And Receive

    TO TRANSMIT AND RECEIVE The UH076SX uses the 40 UHF-CB Channels. For your reference a list of the available channels and corresponding frequencies is printed on page 20. 1. The maximum RF transmit power of UH076SX is 5 Watts. To switch to low power, press appears on the LCD.
  • Page 14: Using A Repeater Channel

    USING A REPEATER CHANNEL UHF CB Repeaters are used to retransmit or relay your signal. Repeaters will extend the range of your radio and overcome the shielding effect caused by solid obstructions. In normal Simplex operation, your radio transmits on one particular frequency and receives on that same frequency.
  • Page 15: To Operate Uh076Sx In Duplex Mode

    TO OPERATE UH076SX IN DUPLEX MODE Eg. CH01 is being used in your area for repeater use. Press momentarily. The DUP icon appears. Press again to deactivate the duplex operation. UH076SX will return to simplex operation. Check with your local retailer for available repeaters. SCANNING The UH076SX has two types of scanning;...
  • Page 16: Group Scan (Gs) Mode

    If SCAN is deactivated while in an active channel, the UH076SX will stay on that active channel. If no other channels are active, the UH076SX will reinstate the starting channel. Group Scan (GS) Mode Allows you to monitor a Priority Channel while scanning. To use GS Mode Scanning, press the display.
  • Page 17: Programming Scan Channels

    Programming Scan Channels 1. Select which Scanning Mode you wish to use OS or GS Mode. OS is indicated by the absence of the GS icon. 2. Select the channel you want to store by pressing 3. Press and hold short tone beeps are heard.
  • Page 18: Advanced Features

    ADVANCED FEATURES CTCSS (Continuous Tone Coded Squelch System) CTCSS is a feature that allows a group to talk to each other without hearing other users on the same channel. Programming CTCSS Code 1. Select a desired channel to be used with CTCSS. 2.
  • Page 19 VOX feature will not work without the Vox Headset Microphone. The built in mic of UH076SX is temporarily disabled, however accidental pressing of To activate VOX 1. Press and hold 2. Press either VOX sensitivity level (9 with the lowest sensitivity to 1 with the highest sensitivity).
  • Page 20: Power Save

    POWER SAVE Battery Save feature extends the battery life by switching the receiver circuit power ON and OFF. This feature automatically activates during standby mode (RX mode without signal). BACK LIGHTING The Liquid Crystal Display (LCD) and function keys are backlit for easy viewing at night or in low light situations.
  • Page 21: Busy Channel Lock-Out (Bcl)

    BUSY CHANNEL LOCK-OUT (BCL) This feature prevents accidental transmission on a busy channel. This is recommended on channels where CTCSS is being used. If the channel is "active" and the signal is coming from a non or different CTCSS code user the BCL feature will prevent you from transmitting. To activate BCL Press and hold To De-activate BCL...
  • Page 22: Uhf Channel And Frequencies

    UHF CHANNEL & FREQUENCIES Please follow these guidelines for channel use in Australia: • Channels 05 and 35 are Emergency Channels. • Channel 11 is a Calling Channel. • Channels 22 and 23 are for telemetry and telecommand applications and voice transmissions are not permitted on these channels.
  • Page 23: Ctcss Codes And Frequencies

    CTCSS CODES & FREQUENCIES...
  • Page 24: Warranty

    Warrantor: Uniden Australia Pty Limited ABN 58 001 865 498 Uniden New Zealand Limited Warranty only available in original country of purchase Elements of Warranty: Uniden warrants to the original retail owner for the duration of this warranty, its UH076SX UHF CB Transceiver Radio (hereinafter referred to as the Product) to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below.
  • Page 25: Controls And Indicators

    CONTROLS & INDICATORS 1 Antenna 2 Belt Clip 3 Battery 4 Battery Release Clip 5 PTT (Push to Talk) Key 6 Memory Key (mem) 7 Scan Button (scan)/ Busy Channel Lock-Out Mode (bcl) 8 TX Power/Lock Button 9 Microphone 10 Speaker MIC Jack UH076SX 1/5w 11 ON/OFF VOL Knob...
  • Page 26 LCD Display Transmit 1W Power Duplex Transmit Scanning Monitor Priority Busy Channel Lock Out Group Scanning Channel Numbers Roger Beep M Battery Level Indicator Key Lock O Memory Receive CTCSS...
  • Page 27 Note:...
  • Page 28 ©2008 Uniden Australia Pty Limited/Uniden New Zealand Limited Part Code UTZZ01913AZ(0). Printed in China...
