Transparent bottle sensor
E3S-CR62/67
Stable operation even if container interval is shortened for higher productivity.
Stable detection of 5 mm gaps that previ-
ous regression reflection models were un-
able to detect because of a speed increase
for higher productivity.
Conventional
Transparent
Glass Bottles
Emission element
Light emission
diameter: 0.3 mm
Lens
Transparent
Glass Bottles
E3S-CR62/67
Ideal for detecting transparent glass and
plastic containers
Reflection beam
diameter
Approx. 15 mm
Reflection beam
diameter
The conventional
Emission
reflector
beam
Cube size
diameter
3.8 mm
Features
Bottle detection seen from the upper side
Clear glass sensor E3S-CR62/67
Emission element
Transparent
Light emission
Glass Bottles
diameter: 0.15 mm
Lens
Transparent
Glass Bottles
5mm
Application
Count of the number of bottles
Positioning of a bottle, and stopping
Reflection beam
diameter
5mm OK
Reflection beam
Emission
diameter
New reflector
beam
Cube size
diameter
0.92 mm
A-157
Advertisement
Table of Contents
Related Manuals for Omron E3S-67
Summary of Contents for Omron E3S-67

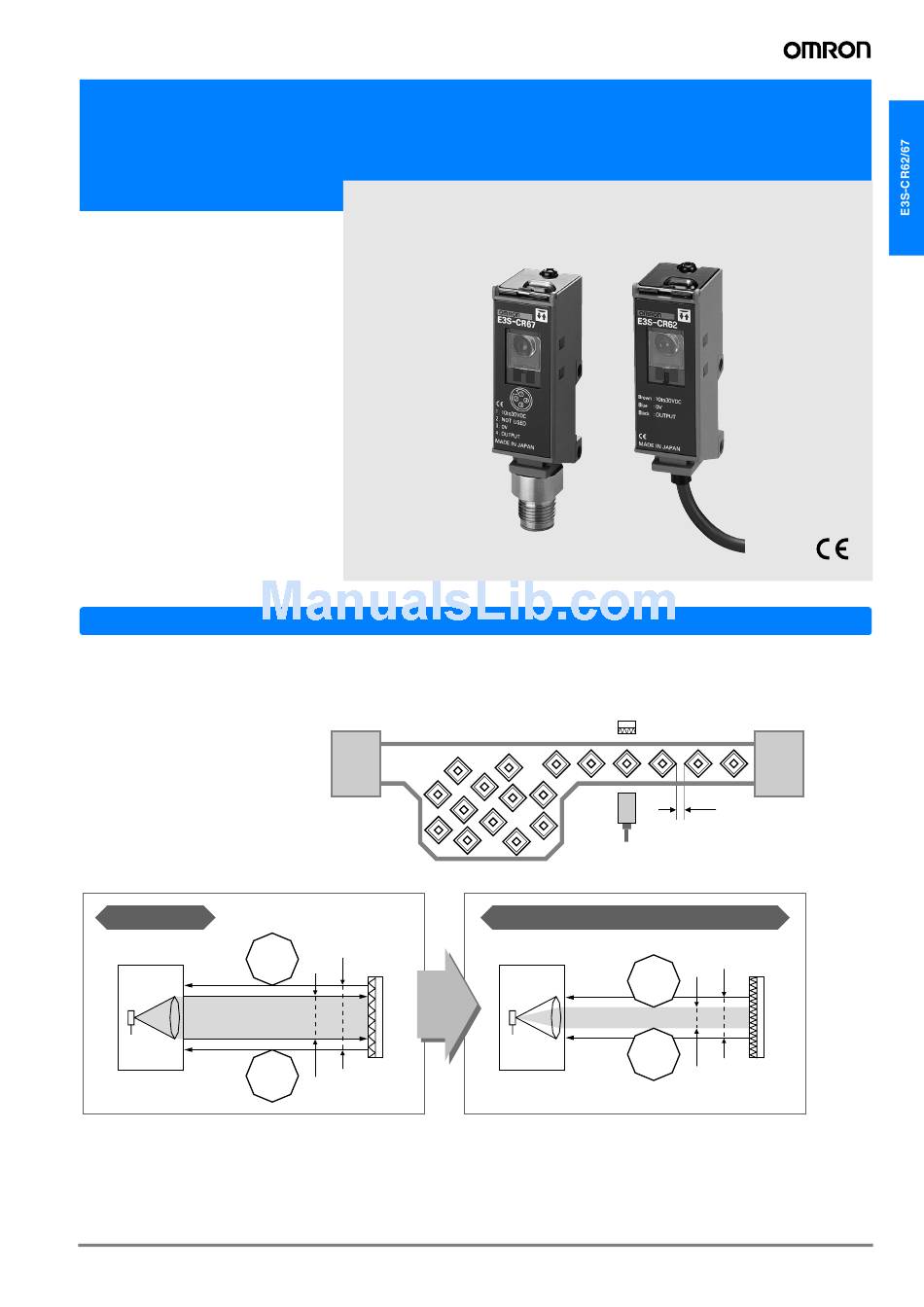

- Page 1 Ideal for detecting transparent glass and plastic containers Features Stable operation even if container interval is shortened for higher productivity. Stable detection of 5 mm gaps that previ- ous regression reflection models were un- able to detect because of a speed increase for higher productivity.
- Page 2 Problem 1 Clear glass sensor E3S-CR62/67 Adoption of the coaxial retroreflective model Stable detection can be carried out also to the transparent bottle of various form and surface states. A state without a transparent bottle Reflector Sensor...
- Page 3 Reflector E39-R6 Reflector E39-R1 Pre-wired type E3S-CR62-C Retroreflective 250mm Models Connector type E3S-CR67-C [250mm] * Values in parentheses indicate the minimum required distance between the sensor and reflector. Accessories (Order Separately) Reflectors Name Sensing distance Model Quantity Remarks E39-R6 250 mm...
- Page 4 Load supply voltage: 30 VDC or less; load current 100 mA or less (residual voltage: NPN output Control output 1.2 V or less, PNP output 2 V or less); open collector model (NPN/PNP output switching) light ON / dark ON switching...
- Page 5 Operate Load NPN output (Relay) Reset transistor Blue (Between brown and black) E3S-CR62-C E3S-CR67-C * Please make a changeover switch into the NPN side. Incident Interrupted Connector Pin arrangement Light indicator D ON Dark ON (red) (DARK ON) Output...
- Page 6 Sensitivity adjustment The light source switch and reflective plate can be moved horizontally and vertically to set them in the center of the illumination area of the red incident light indicator lamp, allowing the operator to check whether the green stability indicator lamp is illuminated.
- Page 7 This may damage the water resistance function. may be received, causing erroneous light reception signals • Use an M4 screw, tightened to a torque of no more than and errors. 1.18 Nm.
- Page 8 Accessories (Order Separately) ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. E268-E2-01-X In the interest of product improvement, specifications are subject to change without notice.
