  • Page 1 FRONT PAGE RRT4...

  • Page 2: Intended Use

    WORK AREA SAFETY IMPORTANT! ■ Keep work area clean and well It is essential that you read the lit. Cluttered or dark areas invite instructions in this manual before accidents. assembling, operating, and maintaining ■ Do not operate power tools in the product.

  • Page 3: Personal Safety

    ■ If operating a power tool in a If devices are provided for the ■ damp location is unavoidable, use connection of dust extraction and a residual current device (RCD) collection facilities, ensure these protected supply. Use of an RCD are connected and properly used.
  • Page 4 power tool’s operation. If damaged, battery; avoid contact. If contact have the power tool repaired before accidentally occurs, flush with use. Many accidents are caused by water. If liquid contacts eyes, additionally seek medical help. poorly maintained power tools. Liquid ejected from the battery may Keep cutting tools sharp and clean.
  • Page 5 ■ This power tool is intended to ■ Do not use a damaged accessory. function as a grinder, sander, wire Before each inspect accessory such as abrasive wheels brush, polisher, carving or cut- for chips and cracks, sanding drum off tool. Read all safety warnings, instructions, illustrations for cracks, tear or excess wear,...
  • Page 6 contacting a “live” wire may make vents. The motor’s fan will draw the exposed metal parts of the power tool dust inside the housing and excessive “live” and could give the operator an accumulation of powdered metal may electric shock. cause electrical hazards.
  • Page 7 ■ Use special care when working mandrels with unrelieved corners, sharp edges etc. Avoid shoulder flange that are of correct size and length. Proper mandrels will bouncing snagging accessory. Corners, sharp edges or reduce the possibility of breakage. bouncing have a tendency to snag the ■...

  • Page 8: Additional Safety Warnings

    ■ Use extra caution when making a reduce the risk of serious personal “pocket cut” into existing walls or injury. other blind areas. The protruding ■ Do not reach in the area of the wheel may cut gas or water pipes, spinning bit.

  • Page 9: Transporting Lithium Batteries

    ■ Ambient temperature range for battery penetrating oils, etc., come in contact during use is between 0°C and 40°C. with plastic parts. Chemicals can damage, weaken or destroy plastic ■ Ambient temperature range for battery which may result in serious personal storage is between 0°C and 20°C.

  • Page 10: Symbols In This Manual

    Do not dispose of waste SYMBOLS IN THIS MANUAL batteries, waste electrical and electronic equipment as unsorted municipal waste. Note Waste batteries and waste electrical electronic equipment must be collected Parts or accessories not separately. Waste batteries, provided waste accumulators, light sources have...
  • Page 11 Stop the product. Waiting time Solid Green - Charged Solid Red - Low Battery (5- 25%) Flashing Red (3 Flashes) - Low Battery (0- 5%) Flashing Red (6 Flashes) - Overload Protection Flashing Red (9 Flashes) - High Temperature Protection Original Instructions...

  • Page 12: Speed Dial Settings

    SPEED DIAL SETTINGS* Speed 5,000 RPM 10,000 RPM 15,000 RPM 20,000 RPM 25,000 RPM Type of Soft Hard Laminates Aluminum, Shell/ Steel Ceramic Glass Accessory Wood Wood Plastics Brass, Etc. Stone Cut-off Discs — — — — — Fiberglass — —...
  • Page 13 ACCESSORY Maximum Figure Accessory Application RPM* Drum sander mandrel (Ø Holding sanding 6.4 mm) 35,000 drums (Ø 3.2 mm shank/collet) 6.4 mm x 12.7 mm sanding drums (60 grit, 120 grit) Sanding wood, 35,000 used with Drum sander metal, and plastics mandrel 9.5 mm Conical grinding Sharpening and...

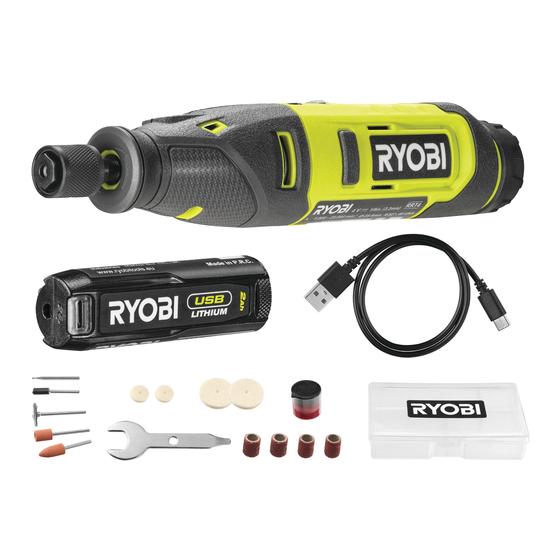

  • Page 14 Battery port Battery cap LED indicator Variable speed Dial On/off switch Spindle Lock button Collar Quick-change collet Battery pack USB-C port Accessories USB cable Operator’s manual USB power adaptor Know your product...
  • Page 15 Getting started...
  • Page 16 Getting started...
  • Page 17 Getting started...
  • Page 18 0-5 hrs Getting started...
  • Page 19 Operation...
  • Page 20 Operation...
  • Page 21 Operation...
  • Page 22 Operation...
  • Page 23 NOTE: If it is not possible to insert an accessory into the quick-change collet, follow the instructions on page 24. If it is not possible to release an accessory from the quick-change collet, using the provided wrench, follow the instructions on page 25. Maintenance...
  • Page 24 Ø < 2.5mm Maintenance...
  • Page 25 Maintenance...

  • Page 26: Product Specifications

    PRODUCT SPECIFICATIONS Rotary tool Model RRT4 Voltage Collet 3.2 mm (1/8’’) Maximum allowable overhang 30 mm Maximum mandrel length 65 mm Rated speed 5000 - 25000 min Weight - excluding battery pack 0.225 kg Measured sound values determined according to EN 60745: A-weighted sound pressure level = 61.0 dB(A)
  • Page 27 WARNING! The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.
  • Page 28 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC, 3149, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961075736-01...
