MITO

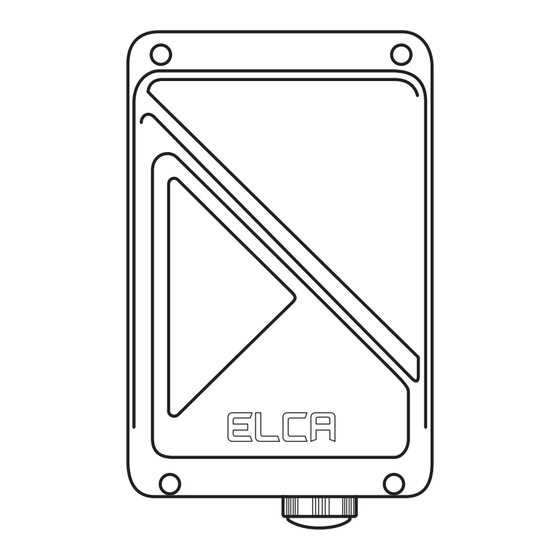

AR MITO-MINI
USER MANUAL
PART 2: RECEIVING UNIT
Instructions translated from the original
This manual, including all its parts, and all the instructions contained in it must be read carefully and understood
before each installation, use, maintenance or reparation of the ELCA radio remote control.
OTHER LANGUAGES
https://qrcode.elcaradio.biz/man/2bb6ab3da9f12d4e9674669511dfa1f6
MITO_MINI_P2-02_EN
0408MA000273
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELCA MITO AR MITO-MINI
Summary of Contents for ELCA MITO AR MITO-MINI
- Page 1 Instructions translated from the original This manual, including all its parts, and all the instructions contained in it must be read carefully and understood before each installation, use, maintenance or reparation of the ELCA radio remote control. OTHER LANGUAGES https://qrcode.elcaradio.biz/man/2bb6ab3da9f12d4e9674669511dfa1f6...
- Page 3 DEATH AND/OR DAMAGE TO PROPERTY. For further assistance AND UNDERSTOOD BEFORE EACH INSTALLATION, USE, refer to this Manual and all its parts, or else contact Elca. Elca MAINTENANCE OR REPARATION OF THE ELCA RADIO REMOTE is not responsible for and accepts no liability for any CONTROL.
-
Page 4: Table Of Contents
INDEX 1 Use and Maintenance Manual ............5 1.1 Structure .................. 5 1.2 Definitions ................5 1.3 Symbols .................. 5 1.4 Who these instructions are for ..........5 1.5 Storage of the instructions ............5 1.6 Updating the Manual ..............6 1.7 Intellectual property.............. -
Page 5: Use And Maintenance Manual
The Instruction manual for use and maintenance is an integral part property. of the Elca Radio Remote Control and therefore of the Machine that is equipped with the Radio Remote Control. It is the responsibility of the Manufacturer of the Machine or the system on which the 1.4 Who these instructions are for... -
Page 6: Updating The Manual
The Manufacturer of the Machine or whoever intends to use or frequency band 868,0125 - 869,9875 MHz, therefore they are in install an Elca Radio Remote Control on a Machine should first of all: conformity with Directive 2014/53/UE (RED) and its essential •... -
Page 7: Risk Analysis For Remote-Controlled Machines
• CAN BE OPERATED SAFELY AND IN COMPLIANCE WITH ALL • technical assistance for the Elca Radio Remote Control carried LEGAL PROVISIONS, REGULATIONS AND STANDARDS out by a company other than Elca or that is not part of its APPLICABLE TO THIS RADIO REMOTE CONTROL. assistance network. -
Page 8: Delay In The Command Response Time
7.3 Delay in the command response time 8.1 Characteristics An Elca radio remote control of the MITO range belongs to the selection of industrial remote controls used mainly (but not only) for In normal conditions, the delay between the activation of a... -
Page 9: Technical Data Of The Range
THE ACTUATORS TO THE REST POSITION MIGHT NOT CAUSE Do not remove the data plate on the Units from their position, THE MACHINE TO STOP IMMEDIATELY. since removing it will immediately void the warranty. If the data plate has been altered or damaged, contact Elca for a replacement. -
Page 10: Transportation And/Or Storage
8.6 Applications • the work to be carried out; An Elca Radio Remote Control of the MITO range can be used for • the warning deriving from the risk analysis connected to the various applications: the suitability of the Radio Remote Control for installation and/or maintenance of the Radio Remote Control;... -
Page 11: Warnings For The Installer
Manual of the Radio Remote Control; that it never exceeds the permitted value (see paragraph 11.1 ); • use the Elca Radio Remote Control only as indicated in this • you MUST always use the STOP contact on the Receiving Unit;... -
Page 12: Instructions For The User
Machine and also the movement of the load; • use the Machine on which the Elca Radio Remote Control is • get in a safe position with respect to the load, the Machine installed only in safe conditions and only if it is possible to get a and any other activity, operation of the workplace;... -
Page 13: Warnings During Normal Use
10.5 Warnings during normal use Rating plate Serial number During normal use the User should: • pay attention to the work area and any dangerous situations Cable gland or optional plug (M16) present; Cable gland or optional plug • visually check all the movements of the Machine and the load;... -
Page 14: The Position Of The Controls And Connection Diagram
11.2 The Position of the controls and Connection diagram 12.1 Mother Board The documentation supplied with the Radio Remote Control Contains the STOP and command relays, the terminals for the consists of: electrical connection, the power supply stage and the support with •... -
Page 15: Testing
Some specific interventions can be required more frequently by the • use the Machine on which the Elca Radio Remote Control is Manufacturer of the Machine or by the Installer, whenever it is installed only in safe conditions and only if it is possible to get a necessary. -
Page 16: Guide To Solving Problems
After its decommissioning the Radio Remote Control should be disturbance and interference; transported and kept in accordance to what is in paragraph 8.5 . • move the Elca Transmitting Unit closer to the corresponding Elca Receiving Unit, in order to avoid possible radio disturbance and 16.2 Disposal...
