- Page 1 User manual MITO Industrial radio remote control AT MITO-MINI-915 Transmitting Unit AR MITO-MINI-915 Receiving Unit ELCA S.r.l. Via del Commercio, 7/b - 36065 Mussolente (VI) ITALY www.elcaradio.com tel. +39 0424 578500 fax +39 0424 578520 MULTI man MITO-MINI-915 04 0408MA000837...
- Page 3 User manual...
-
Page 5: Table Of Contents
5.4 FUNCTIONAL TESTING OF CHARGING CYCLE ................20 6. TECHNICAL FEATURES ..........................6.1 GENERAL ................................21 6.2 FEATURES OF TRANSMITTING UNIT ....................21 6.3 FEATURES OF RECEIVING UNIT ......................21 6.4 FEATURES OF bATTERY CHARGER MITO-ION ................22 ANNEX A ................................- Page I -... -
Page 6: Federal Communications Commission (Fcc) Conformity And Frequencies
FREQUENCIES The radio link between the units of ELCA MITO-MINI-915 series radio remote controls is built at one of the frequencies permitted by the US standards in force when the system is put on the market. -
Page 7: User Manual
This manual and any annexed documents are the property of ELCA and all rights are reserved. No parts of this publication may be reproduced or transmitted in any form or by any means, without permission in writing from ELCA. -
Page 8: Use Instructions
2. USE INSTRUCTIONS 2.1 GENERAL INFORMATION The ELCA Radio System Type MITO is an innovative family of low-power industrial radio remote controls, used to control appliances that do not require Stop safety function. The ELCA Radio Remote Control System Type MITO is comprised of two main Units: - a Transmitting Unit (AT) that sends the command selected by operator in the form of a sequence of digital data;... -
Page 9: Instructions For Proper And Safe Use
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 2.3 INSTRUCTIONS FOR PROPER AND SAFE USE IMPORTANT ! Radio remote control user MUST: Check the correct mechanical operation of the STOP button before every operation. Check the correct operation of the control devices. -
Page 10: Transmitting Unit At Mito-Mini-915

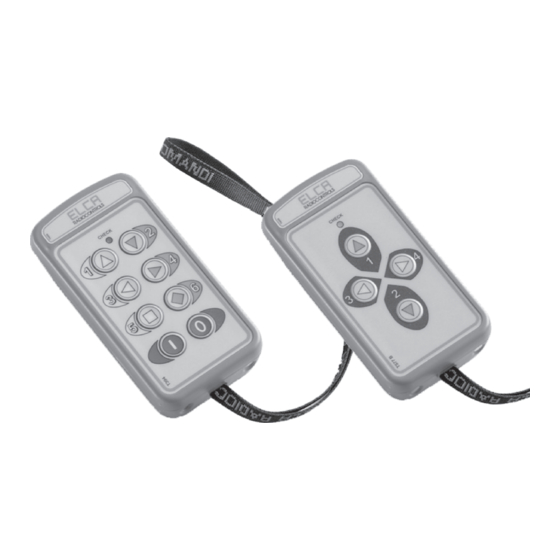

ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 2.4 TRANSMITTING UNIT AT MITO-MINI-915 DISPOSIZIONI COMANDI 8 TASTI CONFIGURATIONS WITH 8 BUTTONS RADIOCONTROLS RADIOCONTROLS CHECK CHECK START STOP CHECK LIGHT SPIA DI CHECK DISPOSIZIONI COMANDI 4 TASTI CONFIGURATIONS WITH 4 BUTTONS... - Page 11 ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI • Five different auto-shutdown modes: CONTINUOUS Transmission mode (CT). DISCONTINUOUS Transmission mode (DT). - Auto-shutdown after 3 minutes of system inactivity. - Auto-shutdown after 10 seconds of system inactivity. - Auto-shutdown after 10 minutes of system inactivity.
-
Page 12: Receiving Unit Ar Mito-Mini-915
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI SOME SPECIAL FEATURES Features of customised models may differ from those outlined in this manual. Any such particular features are described in annexed documents like control layouts or wiring diagram of the receiver. - Page 13 ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI GENERAL FEATURES. • Self-diagnosis: CONTINUOUS and DISCONTINUOUS Transmission mode (CT and DT). The system runs a diagnostic test (CHECK light blinks twice per second) during the first five seconds after receiver power-on.
-
Page 14: Storing Access Codes
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 2.6 STORING ACCESS CODES In order to associate a transmitter to receiver, the transmitter access code needs to be stored in the receiver memory. The access code is a unique code set at the factory that prevents the receiver installed on the machinery from responding to any unauthorised transmitters. - Page 15 ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI Delete mode: The delete mode removes from the receiver memory ALL access codes of transmitters associated. Note : If a transmitter becomes unserviceable and needs to be replaced, there is no need to delete existing access codes unless all available access codes have been used.
-
Page 16: Information For Maintenance
The manufacturer of the machine and / or the installer of radio remote control is responsible for this analysis. The ELCA Company can not be held responsible for the operation of its system on applications where the risk analysis was not carried out properly. -
Page 17: Warranty
Warranty does not cover transport damage or loss. ELCA shall not be held liable for damage to property or persons. ELCA shall not be liable for machine down time, and it is the user’s responsibility to provide manual or wire control for each machine. -
Page 18: Programmable Functions
In every MITO-MINI-915 with 4 buttons and in some MITO-MINI-915 with 8 buttons customized for specific applications, access to programming mode is disabled. The programmable functions, if necessary, are preset by the manufacturer. -
Page 19: Auto-Shutdown Time Programming
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 3.3 AUTO-SHUTDOWN TIME PROGRAMMING - Page 13 -... -
Page 20: Pin Code Programming
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 3.4 PIN CODE PROGRAMMING - Page 14 -... -
Page 21: Latched Control Programming
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 3.5 LATCHED CONTROL PROGRAMMING - Page 15 -... -
Page 22: Battery Charger
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 4. BATTERY CHARGER 4.1 OPERATING INSTRUCTIONS The battery should be charged at an ambient temperature between +0° C and +45° C, avoiding power supply failures during the charging process. Connect the power supply unit supplied with the battery charger by pushing the plug into the receptacle on battery charger bottom side. -
Page 23: Troubleshooting
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 5. TROUBLESHOOTING 5.1 TYPE OF TROUBLE TROUBLE POSSIBLE CAUSE SUGGESTED REMEDY Recharge the batteries (see Par. 5.4) bATTERY FLAT TRANSMITTER - Access code storage procedure (see Paragraph 2.6). RECEIVER NOT For new systems, ensure serial numbers are correct. -
Page 24: Functional Testing Of Transmitting Unit
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 5.2 FUNCTIONAL TESTING OF TRANSMITTING UNIT Follow the diagram below (starting from the top left corner) to solve or identify the problem. - Page 18 -... -
Page 25: Functional Testing Of Receiving Unit
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 5.3 FUNCTIONAL TESTING OF RECEIVING UNIT Follow the diagram below (starting from the top left corner) to solve or identify the problem. - Page 19 -... -
Page 26: Functional Testing Of Charging Cycle
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 5.4 FUNCTIONAL TESTING OF CHARGING CYCLE Follow the diagram below (starting from the top left corner) to solve or identify the problem. DID THE GREEN IS THE GREEN LIGHT TURN ON? -
Page 27: Technical Features
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 6. TECHNICAL FEATURES 6.1 GENERAL Manufacturer ..............................ELCA S.r.l. Radio Remote Control System type .......................... MITO 920.000 - 921.150 ISM band working frequency ....................... Modulation type ................................. GFSK Hamming distance ................................. ≥10 Working temperature ........................from -20 °C to +55 °C... -
Page 28: Features Of Battery Charger Mito-Ion
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI 6.4 FEATURES OF BATTERY CHARGER MITO-BC Model ........................MITO-bC Supply voltage ......................5.0 V ] Rated power ......................... < 3 W Rated output voltage ....................4.2 V ] Rated output current ....................450 mA Recharging time .......................≤... -
Page 29: Annex A
ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI ANNEX A MOTHER CARD LAYOUT 8 RELAYS LAYOUT SCHEDA BASE 8 RELE‘ On “START/STOP Option„ mode, relay T12 is activated by pressure of START/STOP button and remains held until the radio connection between transmitter and receiver is active, instead relay T1 operates just like any other command. - Page 30 ENG man MITO-MINI-915 04 Radio Remote Control System MITO-A-MINI Vdc POWER SUPPLY WIRING DIAGRAM CABLAGGIO CON ALIMENTAZIONE IN CORRENTE CONTINUA COM T4 COM T9 START / T12 COM T3 STOP / T1 COM T10 LEARN STATUS DL10 POWER COM T2...
