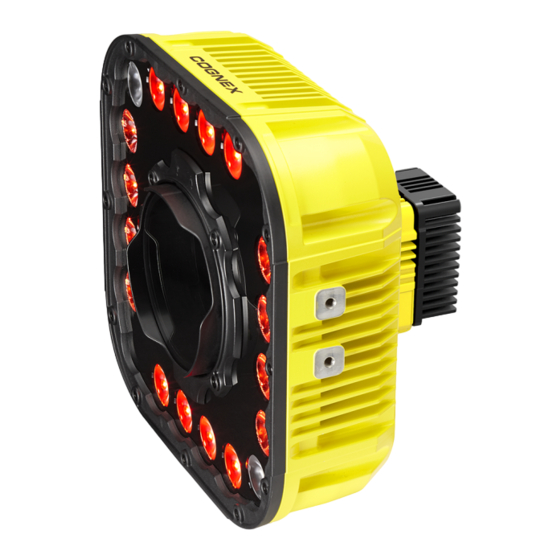

Cognex DataMan 380 Series Quick Reference Manual
  1. Manuals
  2. Brands
  3. Cognex Manuals
  4. Barcode Reader
  5. DataMan 380 Series
  6. Quick reference manual

Cognex DataMan 380 Series Quick Reference Manual

Hide thumbs Also See for DataMan 380 Series:

Advertisement

Quick Links

Download this manual
®
DataMan
380 Series
Quick Reference Guide
2024 April 24
Revision: 24.2.0.12

Advertisement

loading
Need help?

Need help?

Do you have a question about the DataMan 380 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cognex DataMan 380 Series

Summary of Contents for Cognex DataMan 380 Series

  • Page 1 ® DataMan 380 Series Quick Reference Guide 2024 April 24 Revision: 24.2.0.12...
  • Page 2 The safety of any system incorporating this product is the responsibility of the assembler of the system. Do not install Cognex products where they are exposed to environmental hazards such as excessive heat, dust, moisture, humidity, impact, vibration, corrosive substances, flammable substances, or static electricity.
  • Page 3 This product does not contain user-serviceable parts. Do not make electrical or mechanical modifications to product components. Unauthorized modifications can void your warranty. Changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate the equipment.
  • Page 4 Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
  • Page 5 35 mm Variable Aperture Moritex SR Series LMC-ML-U3518SR 50 mm Variable Aperture Moritex SR Series LMC-ML-U5022SR 16 mm f6.5 Cognex High Speed Liquid Lens for High-Res CLN-C16F65-HSLL-HR 25 mm f6.5 Cognex High Speed Liquid Lens for High-Res CLN-C25F65-HSLL-HR 35 mm f6 Cognex High Speed Liquid Lens for High-Res...

  • Page 6: Lens Covers

    Lens Covers Accessory Product Number Illustration 45 mm Plastic Lens Cover COV-380-CMNT-45 60 mm Plastic Lens Cover COV-380-CMNT-60 75 mm Plastic Lens Cover COV-380-CMNT-75 30 mm Lens Cover Extender COV-7000-CMNT-LGX Note: A reader with HPIT does not need a lens cover.

  • Page 7: Mounting Brackets

    Mounting Brackets Accessory Product Number Illustration DMBK-PIVOT-DM380 Pivot mounting bracket U-shaped mounting bracket for use with HPIT DMBK-PVT-HPIT-380...
  • Page 8 Cables Note: Cables are sold separately. Accessory Product Number Illustration Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2001-xx (straight, xx specifies length: 2m, 5m, 10m, 15m, 30m) Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2002-xx (right-angled, xx specifies length: 2m, 5m, 10m) Ethernet Cable, Robotic X-Coded M12-8 to CCB-84901-2RBT-xx (straight, xx specifies RJ-45...
  • Page 9 Accessory Product Number Illustration Power and I/O Breakout Cable, M12-12 to CCB-PWRIO-xxR (right-angled, xx specifies Flying Lead length: 5m, 10m, 15m) I/O Module Cable M12-12 to DB15 CCB-PWRIO-MOD-xx (xx specifies length: 2m, 5m) USB Type C Cable to USB Type A, Straight, DMA-STCBLE-IP65-25 2.5 m USB Type C Cable to USB Type A, Angled,...
  • Page 10 Illustration High-Powered Integrated Torch (HPIT), red, white, clear and polarized variants Accessory Model 50190 Please contact Cognex sales for more details. WARNING: High-Powered Integrated Torch devices equipped with a Time- of-Flight sensor, the device has been tested to be under the limits of a Class 1 Laser device.
  • Page 12 DataMan 380 Series Systems Omnidirectional 1D/2D Omnidirectional 1D Multi-Reader Resolution Codes Sync Codes DM3808QL 2840 × 2840 DM3808X DM3812QL 4096 × 3000 DM3812X DM3816QL 5320 × 3032 DM3816X...
  • Page 13 Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the reader. Do not force the connections or damage may occur.

  • Page 14: Reader Layout

    Reader Layout Number Description Integrated Illumination connector Imager/C-mount flange Lens connector Trigger button...
  • Page 15 Power LED indicator Train status LED indicator Ethernet 1 status LED Ethernet 0 status LED Error LED indicator Coglink/USB-C status LED Tune button...
  • Page 16 Power I/O Breakout cable connector Ethernet connector 1 Micro-HDMI connector Coglink/USB-C connector Ethernet connector 0 Light connector Indicator lights Heatsink...
  • Page 17 Dimensions The following sections list dimensions of the reader. Note: Dimensions are in millimeters and are for reference purposes only. All specifications are for reference purposes only and can change without notice.
  • Page 18 DataMan 380 Reader Only...
  • Page 19 DataMan 380 with 45 mm Lens Cover...
  • Page 20 DataMan 380 with 60 mm Lens Cover...
  • Page 21 DataMan 380 with 75 mm Lens Cover...
  • Page 22 DataMan 380 with HPIT...
  • Page 23 Field of View and Distance This section provides the Field of View (FoV) values for 16 mm and 25 mm lenses. DataMan 3808 Field of View 16 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1700 25 mm Focal Length...

  • Page 24: Mounting The Reader

    25 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1700 2200 DataMan 3816 Field of View 16 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1080 1700...
  • Page 25 CAUTION: The reader has to be grounded, either by mounting the reader to a fixture that is electrically grounded or by attaching a wire from the mounting fixture of the reader to frame ground or Earth ground. If a ground wire is used, it has to be attached to one of the mounting points on the bottom plate of the reader and not to the mounting points on the front of the reader.
  • Page 26 5. Tighten the mounting screws. Note: Apply a maximum of 5 Nm torque when tightening the screws.

  • Page 27: Connection Options

    Connection Options This section summarizes connection options. Connecting the Ethernet Cable CAUTION: The Ethernet cable shield has to be grounded at the far end. Whatever this cable is plugged into (typically a switch or router) should have a grounded Ethernet connector. A digital voltmeter has to be used to validate the grounding.
  • Page 28 Connecting the Power and I/O Breakout Cable CAUTION: To reduce emissions, connect the far end of the Breakout cable shield to frame ground. Note: Perform wiring or adjustments to I/O devices when the reader is not receiving power. You can clip unused wires short or use a tie made of non-conductive material to tie them back.

  • Page 29: External Power

    External Power Connect an external power supply to the external power connector on the back of the illumination. Observe the following measures when using external power for the illumination: Use a separate power supply rated for 24 V and 2 A. Connect the illumination to the front of the reader before powering on either the reader or external illumination connector.

  • Page 30: Using Your Device Through Usb

    CAUTION: Do not use the LIGHT connector to power the integrated light externally. Using your Device through USB You can utilize the USB connector of the DataMan 380 for emulating serial (USB- COM) functionality. For a detailed description, see the DataMan 380 Reference Manual.

  • Page 31: Specifications

    Specifications The following sections list general specifications for the reader. DataMan 380 Series Reader Specification DataMan 380 C-Mount lens or Cognex High Speed Liquid Lens Lens Type Trigger 1 opto-isolated, acquisition trigger input. 1 opto-isolated, acquisition trigger input. Discrete Inputs Up to 3 general-purpose inputs when connected to the Breakout cable.
  • Page 32 Specification DataMan 380 24 V DC +/- 10% Power Consumption LPS or NEC class 2 Power consumption without USB device attached: Average ≤ 15 W without illumination Average ≤ 40 W with illumination Peak ≤ 2 A Power Output 24 V DC at 1.0 A maximum to external light. Material Die-cast and extruded aluminum and zinc housing.
  • Page 33 500 Hz at 100 m/s / 15 mm) with cables or cable plugs and a 150 gram or lighter lens attached. Regulations/Conformity CE, FCC, KCC, TÜV SÜD NRTL, EU RoHS, China RoHS DataMan 380 Series Reader Image Sensor Specification DM3808 DM3812 DM3816 Sensor Type 1/1.1-inch CMOS...

  • Page 34: Regulations And Conformity

    Regulations and Conformity Note: For the most current CE and UKCA declarations and regulatory conformity information, see the Cognex support site: cognex.com/support. DataMan 380 readers have Regulatory Model number 50103 and meet or exceed the requirements of all applicable standards organizations for safe operation.
  • Page 35 Safety and Regulatory Korea This device is certified for office use only and if used at home, there can be frequency interference problems. A급 기기 (업 무용 방송 통신 기자재): 이 기 기 는 업 무용(A급 ) 전 자파적 합 기기 로 서...
  • Page 36 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根据 中国 大陆 《 电子信息 产品 污染 控制管 理办 法 》 ( 也称 为中 国大陆 RoHS)， 以 下部 份列 出了 本产 品中可 能包 含的 有 毒有 害物 质或 元素的 名称 和含 量 。 Hazardous Substances 有...

  • Page 37: For European Community Users

    For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 38 Copyright © 2024 Cognex Corporation. All Rights Reserved.
