K275Y002 (K275)

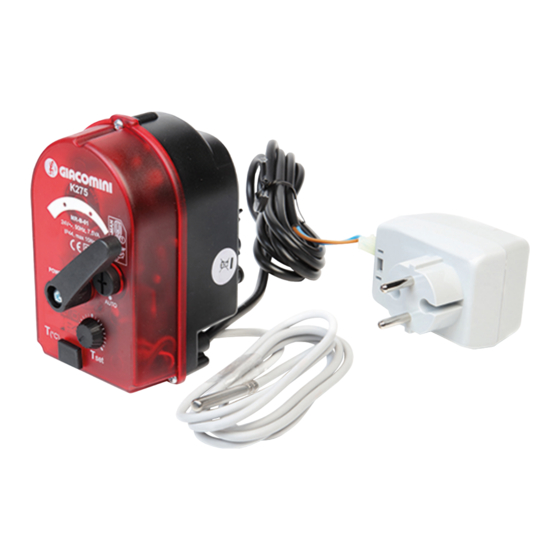

Actuator with integrated
temperature regulator
for R296, R297 mixing valves
and R586R distribution units
Versions and product codes

PRODUCT CODE
K275Y002
 NOTE. The following kits are also supplied with the actuator:
• P275Y003: kit for actuator installation on R296 mixing valves
• P275Y004: kit for actuator installation on R297 3/4", 1", 1-1/4" mixing valves
Accesories
• P275Y001: kit for actuator installation on R297 1-1/2" and 2" mixing valves and R297 flanged
• P275Y005: kit for actuator installation on R586R DN32 distribution units
Spare parts
• P275Y003: kit for actuator installation on R296 mixing valves
• P275Y004: kit for actuator installation on R297 3/4", 1", 1-1/4" mixing valves
• P275Y010: power supply 230 V / 24 V
Actuator with integrated constant temperature regulator
for the control of R296, R297 mixing valves and R586R
distribution units.
It controls fixed supply temperature in HVAC systems
(without umidity control), in stand-alone operation.
The actuator has a fixed angle rotation of 90° and possibility
of manual control.
With DIP switches inside actuator is possible to set the
following parameters:
• Direction of rotation (counterclockwise CCW / clockwise CW)
• Different temperature ranges depending on the application
• Reaction factor x1/x10
Typical applications:
• Maintaining a constant temperature in boiler heating circuit
• Underfloor heating applications, industrial processes,
heat accumulators
• Hot domestic water systems or swimming pools.
POWER SUPPLY
24 V - 50 Hz
