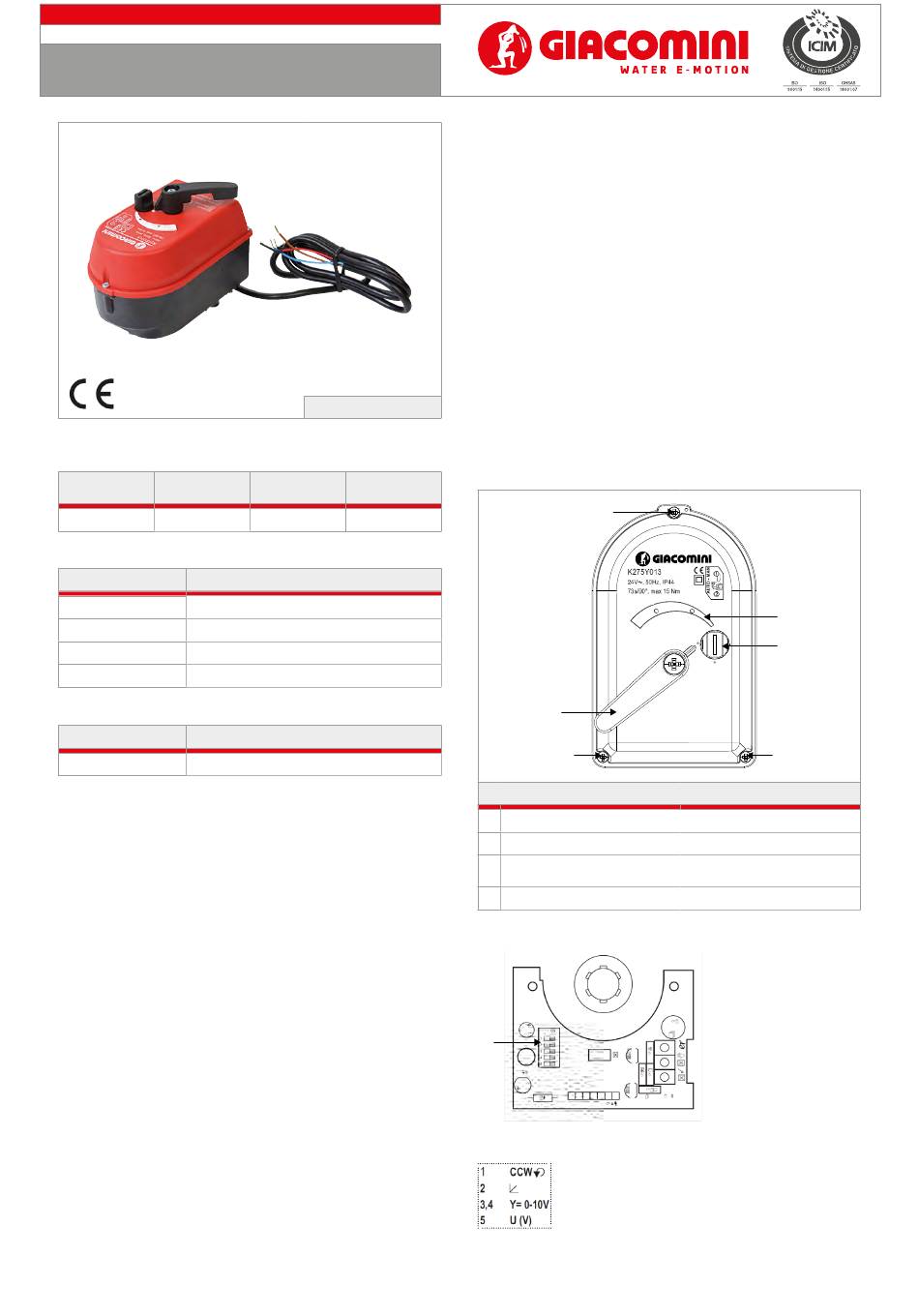

Giacomini K275Y013 Manual

A
ctuAtor for mixing vAlves
0871EN October 2020
0÷10 V
proportional actuator for
r274, r274n
mixing ValVes or
K275-1
series

Versions and product codes

Product code Power supply
K275Y013 24 V - 50 Hz
Spare parts
Mixing valve Spare kit for installation on the valve
R296
R297 3/4", 1", 1-1/4"
R297 1-1/2", 2"
R297 Flanged
Accessories
Zone valve Kit to be ordered separately for installation on the valve
R274, R274N

Technical data

• Type of actuator: 0÷10 V proportional
• Supply voltage: 24 Vac, 50 Hz, +10/-15 %
• Command type: automatic or manual
• Torque: max 15 Nm
• Power comsumption: 6 VA
• Rotation time: 73 s / 90°
• Degree of protection: IP44
• Protection class. II
• Connection cable: 4 x 0,5 mm2; length 1 m
• Ambient temperature: 0÷55 °C
• Fluid temperature: according to valve's specifications
• Storage temperature: -20÷80 °C
• Weight: 480 g (without valve)
• Maintenance: maintenance free
• Controlo signal: voltage 0÷10 Vdc, 2÷10 Vdc, 0÷5 Vdc, 5÷10 Vdc
current 0÷20 mA, 4÷20 mA
r296 r297
and
zone ValVes
K275Y013
Use with Use with
mixing valves zone valves
R296, R297 R274, R274N
P275Y003
P275Y004
P275Y001
P275Y001
P275Y002
Description

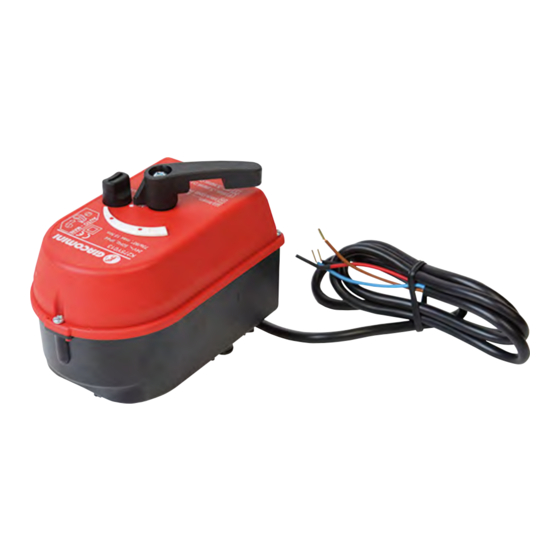

The K275Y013 actuator is used to control the R296 and R297 mixing valves
or R274, R274N zone valves in heating and cooling systems.
The actuator can be controlled from the KLIMAbus KPM30 or KPM31 control
unit.

Operation

Front pannel description
4
3
4
1 Mechanical indication reversible
2 Button for manual/auto control
Handle for manually controlling the drive, which also serves for the indication
3
of the valve position
4 Screws for cover removing
DIP switches (ref. A) are located inside the actuator, under the cover.
A

Factory settings

DIP1: OFF - opening counterclockwise
DIP2: OFF - direct control signal
DIP3, 4: OFF - 0÷10 V
DIP5: OFF - voltage control signal
1
2
MAN
AUTO
4

Legend

1
