Hydro SMP 2.0-A-AG User Manual

index
For models SMP 2.0-A-AG, SMP 2.0-C-AG, SMP 2.0-D-AG
safety precautions
WARNING!
Read and fully understand the user manual before operating this product.
Please use this equipment carefully and observe all warnings and cautions.
*******************************************NOTE*****************************************
protective clothing and eyewear when dispensing chemicals or other materials or when working in the
WEAR
vicinity of all chemicals, filling or emptying equipment, or changing metering tips.
observe safety and handling instructions of the chemical manufacturer.
direct discharge away from you or other persons or into approved containers.
dispense cleaners and chemicals in accordance with manufacturer's instructions. Exercise CAUTION when
ALWAYS
maintaining your equipment.
reassemble equipment according to instruction procedures. Be sure all components are firmly screwed or
latched into position.
KEEP equipment clean to maintain proper operation.
ATTACH only to water tap outlets (25 psi Minimum, 85 psi Maximum and Maximum water temperature 120° F).
If the unit is used to fill a sink, or the discharge hose can be placed into a sink. The unit must be mounted
so that the bottom of the cabinet is above the overflow rim of the sink.
Device shall be installed in a vertical orientation.
NOTE
A plumbed, dedicated lines is preferred for installation. When a dedicated line is not available, installation
shall ensure that no cross-connections between hot and cold water are created, and that atmospheric
vaccum breakers integrated into the building water supply are not negatively affected by being under
pressure for over 12 continuous hours.
introduction
Package Contents
1) Proportioning unit - ASSE, UPC and CSA certified to ASSE 1055
2) Wall bracket
3) Bottle shelf
4) Discharge tube for each eductor

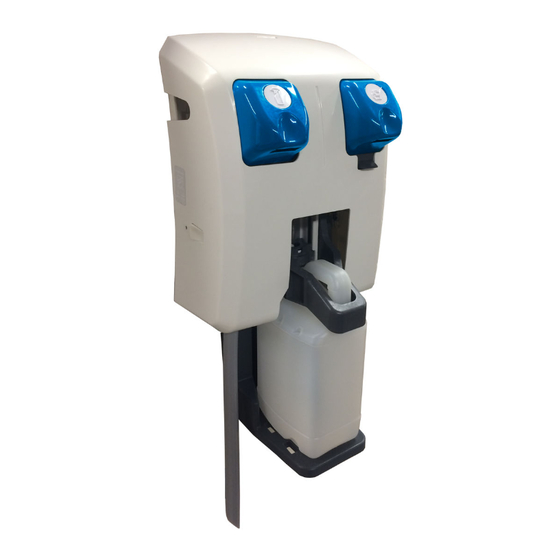

SMP 2.0 with Air-Gap Eductors
THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS
user manual
5) Hose hook -- 3.5 GPM eductor only
6) Mounting hardware
7) Mounting template
Page 1
