Hydro AccuMax Select User Manual

For Models 3531AG, 3534AG, 3575AG, 3576AG, 3577AG, 3579AG, 3585AG

Safety Precautions

WARNING! Read and fully understand the user manual before operating this product.
Please use this equipment carefully and observe all warnings and cautions.
protective clothing and eyewear when dispensing chemicals or other materials or when working in the
WEAR
vicinity of all chemicals, filling or emptying equipment, or changing metering tips.
observe safety and handling instructions of the chemical manufacturer.
ALWAYS
direct discharge away from you or other persons or into approved containers.
dispense cleaners and chemicals in accordance with manufacturer's instructions. Exercise CAUTION when
maintaining your equipment.
reassemble equipment according to instruction procedures. Be sure all components are firmly screwed or
latched into position.
equipment clean to maintain proper operation.
KEEP
only to water tap outlets (25 psi Minimum, 85 psi Maximum and Maximum water temperature 120° F).
ATTACH
If the unit is used to fill a sink, or the discharge hose can be placed into a sink. The unit must be mounted
NOTE
so that the bottom of the cabinet is above the overflow rim of the sink.
Device shall be installed in a vertical orientation.
A plumbed, dedicated line is preferred for installation. When a dedicated line is not available, installation shall
ensure that no cross-connections between hot and cold water are created, and that atmospheric vaccum
breakers integrated into the building water supply are not negatively affected by being under pressure for
over 12 continuous hours.

introduction

Package Contents

1) Proportioning unit
2) Supply tubing 21' total (For Select 1+, +2), 56' total (For Dual Select),
3) Accessory kit (Mounting brackets and hardware)
4) Foot valve assemblies and weights

installation and operation

Installation

1. Find suitable place close to water source for unit. Mounting bracket should be installed approx. 5' from the floor. Level
bracket and mark holes. Drill 9/32" holes and install mounting anchors and screws in bracket.
2. Remove cabinet cover and hang cabinet on bracket. Mark hole for lower cabinet screw. Remove cabinet and drill 9/32" hole.
Install anchor and screw in lower cabinet hole. When mounting unit, do not mount more than 5 feet from the floor. Also, never
mount your concentrate container higher than the unit. Keyhole slots are also provided in the cabinet back if the mounting
bracket won't be used.
3. Select metering tips (up to 4) for the selector valve. (Refer to section metering tip selection.) Push each tip firmly into a
separate hose barb extending from the selector valve. A tip with no hole (clear plastic) can be used to block any valve port
being used. (This may be used for dispensing water only.) Select and install a metering tip for the single product eductor
(right side) in the same manner.

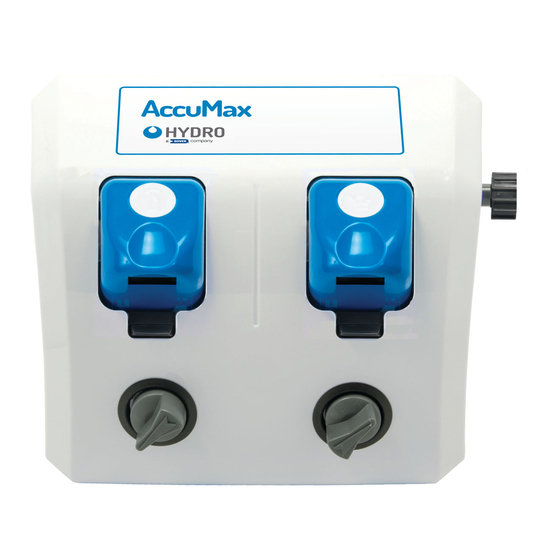

AccuMax Select
™
THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS
user manual
with HydroGap AirGap Eductors
5) Metering tip kit(s) (2)
6) Discharge tubing for each eductor
7) Hose hook for 3.5 GPM eductor
™
1
