Models 1060, 1065, 1070, 1075, 1080 & 1085: Operation & Maintenance
TM
AutoDose
programmable dispensers are battery operated peristaltic pumping systems (convertible to AC power) which
run automatically at preset times as programmed on an electronic timer/control mechanism. Models vary as to the
pump's power source and the pump tubing material (see page 7 for specifications).
THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS
Please use this equipment carefully and observe all warnings and cautions.
******************************************************************* NOTE ***********************************************************
ALWAYS
ALWAYS
ALWAYS
KEEP
WEAR
ALWAYS
System installation ............................................................................................................................................. Pages 2-3
Installing the power supply ................................................................................................................................. Pages 2-3
Determining the proper dosage for application ......................................................................................................... Page 3
Programming the timer ....................................................................................................................................... Pages 3-4
Changing the pump tubing ....................................................................................................................................... Page 5
Troubleshooting ....................................................................................................................................................... Page 5
System parts diagram and list ................................................................................................................................. Page 6
System specifications ............................................................................................................................................. Page 7
Template for wall mounting system ......................................................................................................................... Page 8
This package should
contain:
1. One dispenser --
pump, electronic
timer/control and
motor in high impact
molded cabinet.
2. Supply tube (20 ft.)
3. Drum tube and
holding tubes.
4. Injection fitting.
5. Mounting hardware.
6. Cable ties (25).
7. Tubing barbs (2).
8. Battery holder (Models
1080 & 1085 only).
9. AC adaptor (Models
1070 & 1075 only).
10. Instruction sheet.
AutoDoseTM Programmable Dispensers From Lyn Distributing
observe safety and handling instructions of the chemical manufacturers.
direct discharge away from you or other persons or into approved containers.
dispense cleaners and chemicals in accordance with manufacturer's instructions. Exercise
CAUTION when maintaining your equipment.
equipment clean for proper operation.
protective clothing and eyewear when working in the vicinity of all chemicals, filling or emptying
equipment or changing tubes.
re-assemble equipment according to instruction procedures. Be sure all components are firmly
screwed or latched into position. Assure that hoses and electrical wire are properly placed and
not kinked or pinched.
TABLE OF CONTENTS

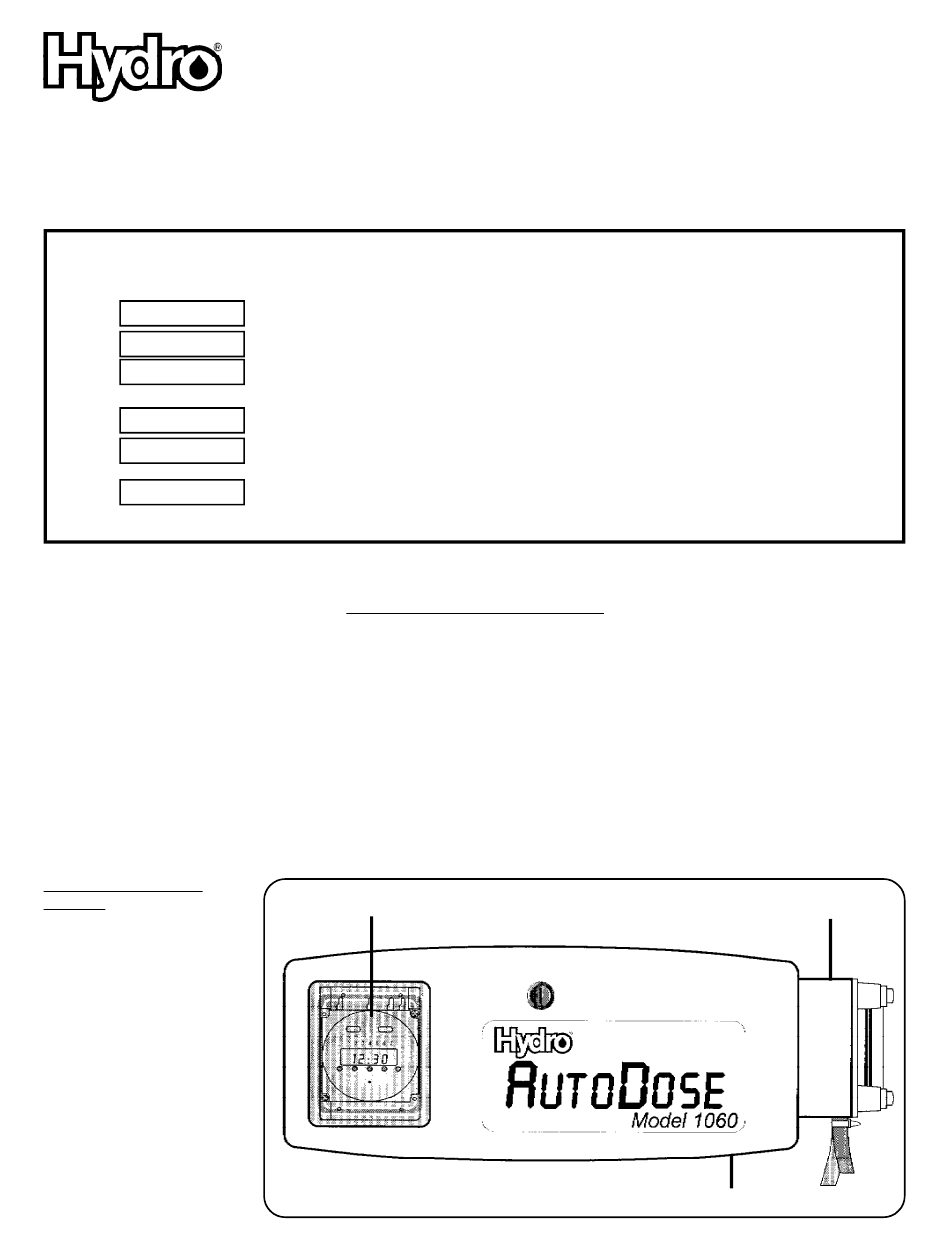

Timer
Peristaltic pump
High impact molded cabinet
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hydro AutoDose 1060
Summary of Contents for Hydro AutoDose 1060
- Page 1 AutoDoseTM Programmable Dispensers From Lyn Distributing Models 1060, 1065, 1070, 1075, 1080 & 1085: Operation & Maintenance AutoDose programmable dispensers are battery operated peristaltic pumping systems (convertible to AC power) which run automatically at preset times as programmed on an electronic timer/control mechanism. Models vary as to the pump's power source and the pump tubing material (see page 7 for specifications).
- Page 2 SYSTEM INSTALLATION: Refer to the diagrams at right. 1. Copy the template provided on page 8 and use the copy to drill three holes for the wall mounting anchors. Install the three anchors. Install mounting screws in the top two anchors. Slide the key holes in the back of the cabinet over the screw heads.
- Page 3 b.Open the cabinet and remove the black plug in the AC ADAPTOR INSTALLATION bottom of the cabinet under the motor. c.Feed the white plug on the adaptor up through the hole in the bottom of the cabinet and connect it to the mating plug below the timer box.
- Page 4 4. Return SET to the middle (RUN) position. Note that the display was MODE SWITCH SET SWITCH frozen during the setting process, but that the internal clock kept track of the time elapsed since the switches were moved so the time of day is preserved during the setting operation.
- Page 5 Changing the pump tubing: You may want to work over old newspapers or other discardable material to protect floors or other areas from the possibility of spilled drain treatment. Be sure the MODE switch (left side of timer) is OFF (O — to the right). Refer to the diagrams on the next page for illustration of selected steps.
- Page 6 SYSTEM DIAGRAM AND PARTS LIST Part # Description NOT SHOWN: 10069135 Lock replacement kit 10016401 Tube connector barb kit 10069136 Timer replacement kit 10016201 Drum tube kit -- Norprene 10069103 Timer cover (clear) 10016202 " " " -- Viton 10006103 Motor/gearbox 10012301 Polyethylene tubing -- 1/4"...
- Page 7 Dispenser Specifications: PUMP: SYSTEM CABINET: Material ............Molded ABS Flow rate ....... 100 cc (approx 3.5 oz.)/min. Tube: Size .............. 16" x 6" x 4" Model 1060, 1070 & 1080 ....... Norprene Lock ............. Key activated Models 1065, 1075 & 1085 ........Viton PROGRAMMABLE TIMER/CONTROL: Program duration ............
- Page 8 TEMPLATE FOR WALL MOUNTING DISPENSER CENTER DRILL AT THESE POINTS Centerline of cabinet 12/03 Page 8...
