Hydro AutoDose 1170 Installation Manual

™
AutoDose Automatic Dispensing System

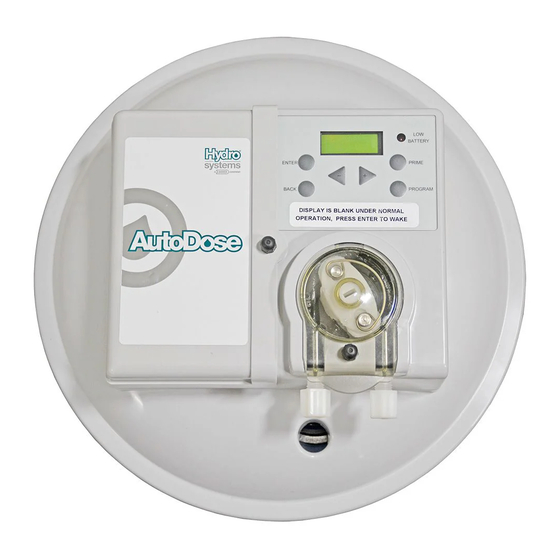

The AutoDose is a battery or A/C-powered peristaltic pumping dispenser that runs automatically at preset times as
TM
programmed with an electronic timer / control. Product operates reliably and consistantly, even in demanding environments.
This guide contains instructions for installing, programming, and troubleshooting
the AutoDose™ Dispensing System. Throughout the guide, the following icons are
used to indicate the model(s) to which each step pertains.
Models:
1 1 7 0
Mounts:
Pail Mount
(3.5 – 5 gal pail)
Power:
8 D-cell batteries
This package should contain:
•
INSTALL PACKAGE CONTAINING:
•
•
•
•
•
•
AutoDose™ Dispenser Specifications:
PUMP
Flow Rate
Tube Material
Inlet Vacuum
Outlet Pressure
SYSTEM CABINET
Material
Size (Model 1170)
Size (Models 1180 and 1190)
PROGRAMMABLE TIMER / CONTROL
Program Duration
Maximum # of Events
Dispense Amount per Event
10094778 Rev B 11/10
1 18 0
Wall Mount
Wall Mount
A/C Power or 8 D-cell batteries
8 D-cell batteries
One AutoDose dispenser
TM
Ceramic weight and strainer for inlet tubing
Polyethylene tubing (10 ft)
Cable ties
Mounting Bracket (Some Models)
AC Adapter (Some Models)
Injection Fitting
Approx 3.5 oz / min
EPDM
20+ in Hg
20 psi
Polypropylene and ABS
Approx. 7 3/4" tall X 14" diameter
(does not include container 1170 model system sits on)
4 3/4" X 6 3/4" X 8 1/3"
Daily / Weekend / Week Days/Special
24
1 oz – 30 oz (dispensed in 1 oz increments)
or 30 – 900 ml (dispensed in 30 ml increments)
© Hydro Systems Company, Inc. 2010
1 1 9 0
Please use this equipment carefully and
observe all warnings and cautions.
ALWAYS observe safety and handling instructions of
the chemical manufacturers.
ALWAYS direct discharge away from you or other
persons or into approved containers.
ALWAYS dispense cleaners and chemicals in accordance
with manufacturer's instructions. Exercise CAUTION
when maintaining your equipment.
KEEP equipment clean for proper operation.
WEAR protective clothing and eyewear when working
in the vicinity of all chemicals, filling or emptying
equipment, or changing tubes.
ALWAYS re-assemble equipment according to
instruction procedures. Be sure all components are
firmly screwed or latched into position. Ensure that
hoses and electrical wires are properly placed and not
kinked or pinched.
ONLY USE ALKALINE BATTERIES.
Tube life will vary depending on the type of treatment
product used. To prevent emergency service, schedule
replacement at least once per year.
NOTE:
replacement. Using a total of 40 running (pumping)
hours, create a schedule for servicing the unit and
changing the batteries. Maintaining the power source
as such will help to provide the proper dosing by
providing a more consistent pumping rate.
HydroSystemsCo.com
!

The batteries should be scheduled for periodic
Toll Free: 1.800.543.7184 1
