Summary of Contents for Hydro EvoClean 1214GB

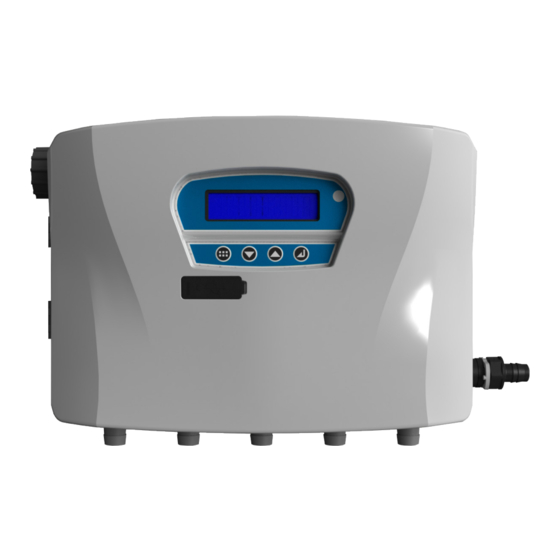

- Page 1 user manual EvoClean (1214GB, 1215GB, 1216GB, 1217GB, 1218GB, 1214RAP, 1216RAP, 1234APAC1, 1235APAC, 1235APAC1, 1218RAP, 1218RGBAPAC) HYD90099593...
-
Page 2: Table Of Contents
8.2 Advised 9. specifications 10. troubleshooting 11. unit diagram and replacement parts 11.1 Replacement parts 11.2 Accessory parts 12. decommissioning and disposal 13. WEEE - waste electrical and electronic equipment 14. warranty 15. electrical approvals Page 2 Hydro Systems Co. 2018... -
Page 3: Introduction
The unit MUST be disconnected from its power source installation and operation of this Alarm are in accordance during cleaning, servicing or when replacing parts. with this Installation and User Manual and local and national regulations. Page 3 Hydro Systems Co. 2018... -
Page 4: Description
Accessory Kit : Wall Mount Brackets Clips Screws Wall Plugs • Chemical Pickup tube and Install Kit* • Remote Formula Select* • Calibration Cylinder* • Backflow Device* *Do not come as standard, Optional extra. Page 4 Hydro Systems Co. 2018... -
Page 5: Site Survey And Installation Requirements
1. Connect incoming water supply using fittings provided. This will either be a 3/4” female Garden Hose fitting, or a 1/2” O.D. 2. A locally approved back-flow prevention device (not provided) may be required for sale and legal operation. Page 5 Hydro Systems Co. 2018... -
Page 6: Installation And Connection
If the unit is configured with the off-board controller, this can be mounted using the hook and loop tape supplied. Note: Please secure any cables so as not to create a hazard for the operator. Page 6 Hydro Systems Co. 2018... -
Page 7: Installation Step 2: Incoming Water Supply
5.3.2. Secure PVC hose to barb with cable tie. Note: It is recommended that the delivery hose between the Evoclean and the washing machine be as short as possible. Any vertical routes should be kept to a minimum. Page 7 Hydro Systems Co. 2018... -
Page 8: Installation Step 4: Routing Pickup Tubes
5.4.3. Cut the 12.7mm (½’’) or 13mm ID Flexible PVC Hose tube to length. Note: Alternative hose options are available. Contact Hydro Systems for further information. 5.4.4. Push the PVC hose on to the detached check valve and secure with cable tie, then push the elbow into the eductor and secure with the clip, as shown in the diagram on the next page. -
Page 9: Installation Step 5: Trigger Connections
5.5.3. Use appropriate terminal connectors to connect the signal wires to the laundry machine. 5.5.4 If one or more triggers are not used, they do not need to be connected but should be suitably secured. Page 9 Hydro Systems Co. 2018... -
Page 10: Installation Step 6: Power
Wires left hanging loose may be a tripping hazard. Ensure all cables are secure. Be sure the tubing will be out of the way of walkways and will not impede motion required in the area. Creating a low place in the run of tubing will minimize drainage from the tubing. Page 10 Hydro Systems Co. 2018... -
Page 11: Setup And Programming
6. setup and programming 6.1 Modes of Operation 6.1.1. Normal mode allows the installer to select any of the solenoids to operate once a validated trigger signal is received (as detailed in 5.5.1). Depending upon which input the signal is received will determine which amount is used. For example a signal on trigger 1 will inject the ‘prewash’... -
Page 12: User Screens
The interface has been designed to allow easy and simple Back intuitive programming. It is recommended that the unit is setup in the following order. Edit Products? Back Edit Formulas? Back Edit Settings? Back Page 12 Hydro Systems Co. 2018... - Page 13 6.5.1. User Screens Under user screen the installer has the functionality to prime the individual chemicals during setup and also view and reset the wash counts per formula. 6.5.2. Machine Size - This is set to the size of the washer extractor being installed. This can be set from 1 - 200kg. All chemical delivery settings refer to this figure when calculating the amount of chemical to be injected during a formula.
- Page 14 6.5.7.5 Set lockout - Can be set between 5 - 99 minutes. 6.5.7.6 Product alarms - this feature can be enabled or disabled as required. If enabled it will hide the relevant screen preventing the user from using this feature. Page 14 Hydro Systems Co. 2018...
-
Page 15: Setup & Programming Step 2 : Priming
Yes Now enter volume Product C1 Calibration? Keep button held Calibration time Back Start 2.4 seconds was: 4.95 Sec 250ml i h OK Calibrated! Calibration time Min. 5.00 Sec. too short! Please retry Page 15 Hydro Systems Co. 2018... -
Page 16: Alarm Function
6.8.8. In the ‘Alarm Reset’ menu, chemicals that have caused the alarm are shown with an asterisk (*) after the volume estimate. 6.9 Formula Editor 6.9.1. To aid programming of the unit a PC application can be downloaded from the Hydro Systems Europe website (www.hydrosystemseurope.com) 6.9.2 This will allow the installer to produce and edit programs remotely that can then be installed on the EvoClean using a USB storage device. -
Page 17: Menu Structure
Search for file? PROG0001.HSL Loading from USB Cancel? Back Back Back Save to USB? Save to file: Writing to USB PROG0001.HSL Cancel? Back Do HTML Report? Save to file: Writing to USB REPORT00.htm Cancel? Back Page 17 Hydro Systems Co. 2018... -
Page 18: Settings Screen
7.3 Settings Screen Page 18 Hydro Systems Co. 2018... - Page 19 Page 19...
-
Page 20: Setup Screen
7.4 Setup Screen Page 20 Hydro Systems Co. 2018... - Page 21 Page 21...
-
Page 22: Maintenance
Min. (High Flow 4L/Min) 0.2 mPa (2.0 Bar / 29 PSI) Electrical Class Class II SYSTEM CABINET Cabinet Material Front Rear PP-TF 4 Product Size (mm) 6 Product Height Width Depth 8 Product IP RATING IP22 Page 22 Hydro Systems Co. 2018... -
Page 23: Troubleshooting
Issues listed here are to be investigated and resolved by a competent engineer. Any fault conditions not listed within this manual should not be attempted to be fixed/replaced without the advice of Hydro Systems Europe (Any unauthorised attempts to repair the unit will invalidate the warranty). - Page 24 2 detail Page 24 Hydro Systems Co. 2018...
-
Page 25: Replacement Parts
Components shown on the following page should only be replaced by a competent engineer. Any components not listed within this section should not be attempted to be replaced without the advice of Hydro Systems Europe (Any unauthorised attempts to repair the unit will invalidate warranty). -
Page 26: Accessory Parts
12. decommissioning & disposal Hydro products are manufactured from materials which can • Safe for disposal sign/note appended to each piece of be recycled. Dispose of Hydro products in accordance with listed items the current local regulations. • The items have been left in a condition such that it is safe for lay personnel or contractor to remove it without need •... -
Page 27: Weee - Waste Electrical And Electronic Equipment
The Low Level Alarm unit is a product placed onto market POST 13.08.05 , therefore called ‘future WEEE’. As a producer Hydro Systems Europe have the option to take responsibility for the EEE placed on the market. If Hydro Systems Europe chooses to receive WEEE they must make sure that it is disposed of in an environmentally sound way, including the treatment, reuse, recovery and recycling of the components where appropriate. -
Page 28: Electrical Approvals
Electromagnetic compatibility (EMC). Generic standards. Immunity for residential, commercial and light-industrial environments. BS EN 61000-6-3 : 2007+A1:2011 Electromagnetic compatibility (EMC). Generic standards. Emission standard for residential, commercial and light-industrial environments. Hydro Systems Europe Ltd. Phone +44 (O)1344 48888O Fax +44 (O)1344 488879 HYD90099594 Evoclean 1 Unit 3 The Sterling Centre, hydrosystemseurope.com...
