5. Pan / Tilt Drag Control
The CinX 8 Fluid Head offers 7 selectable positions of fluid
drag + zero setting in the Pan and Tilt. The settings are
equally stepped from light drag in position 1 up to heavy drag
in position 7, the drag plates are completely disengaged in
position zero.
• Do not Pan or Tilt the Fluid Head whilst adjusting PAN
or TILT DRAG CONTROL or whilst the PAN & TILT DRAG
CONTROL is between settings.
• The drag setting can be changed at any tilt or pan angle.
6. Pan / Tilt Lock Control
The CinX 8 Fluid Head offers high capacity caliper disc
brake system to hold the Fluid Head in a fixed pan and/or tilt
position. Camera position will not change when applying or
releasing the Pan / Tilt locks.
• Do not pan or tilt the Fluid Head whilst the PAN or the TILT
LOCK is partially applied.
7. Illumination
The CinX 8 Fluid Head offers illumination of the PAN, TILT,
DRAG COUNTERBALANCE CONTROLS AND BUBBLE LEVEL
when the low ambient light conditions exist. Illumination can
be achieved by pressing the ILLUMINATION BUTTON once.
The light will switch off after 10 seconds.
Illumination Button
Tilt Drag Control
11
Counterbalance Selector
Bubble Level Pan Drag Control

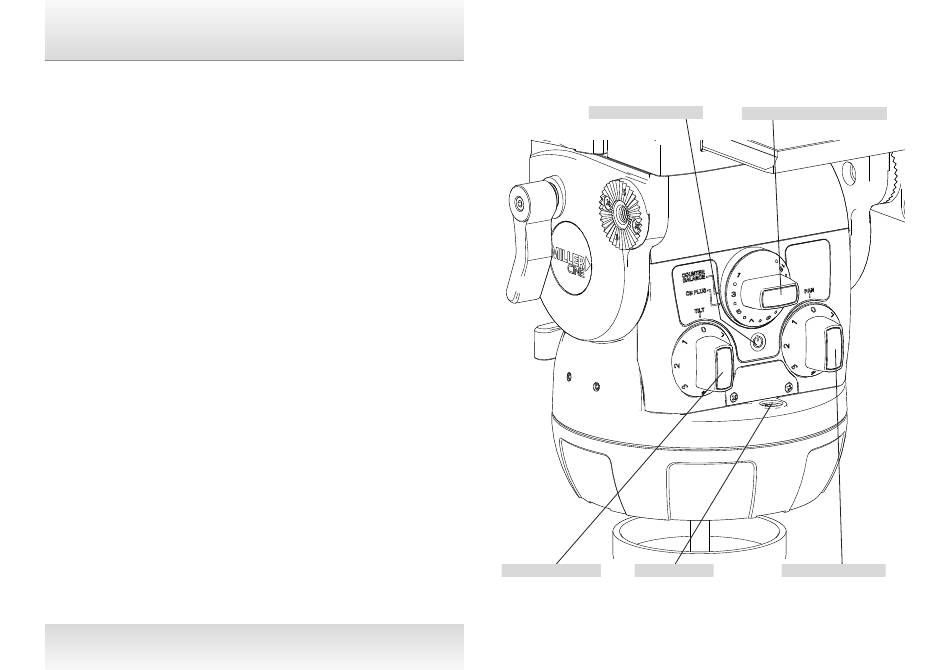

Fig. 10
