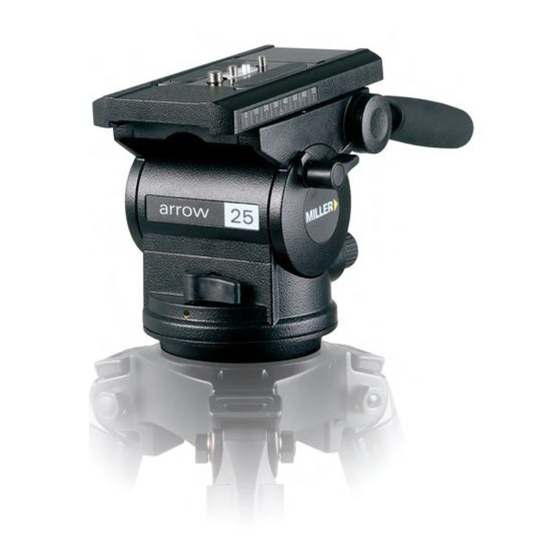

Miller 25 Operator's Manual

Fluid head
Hide thumbs Also See for 25:
Table of Contents

Advertisement

Quick Links

arrow
arrow

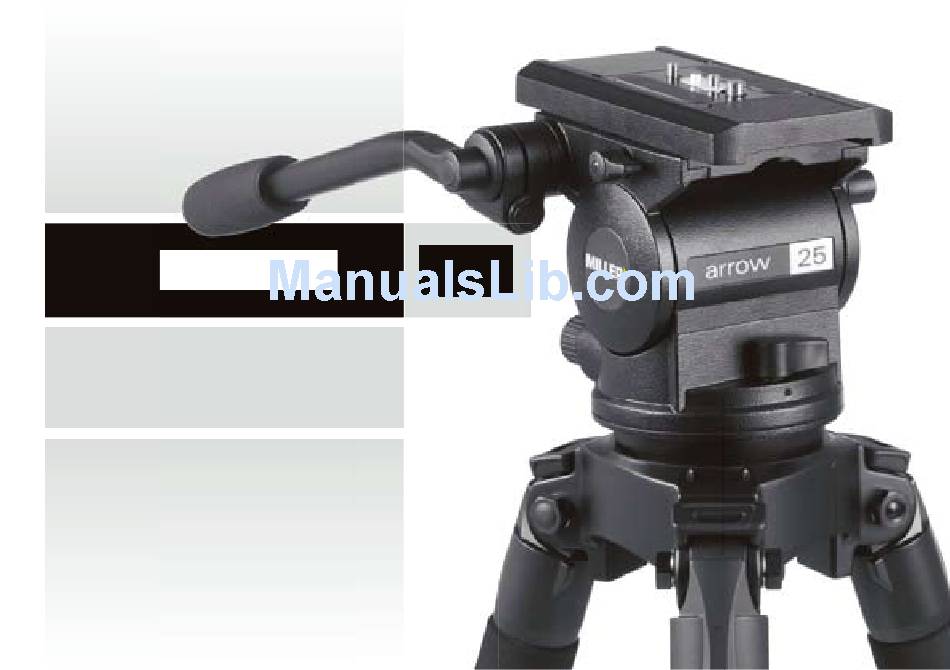

Fluid Head
OPERATOR'S
MANUAL
#1022 Arrow 25 Fluid Head
25
25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25 and is the answer not in the manual?

Questions and answers

Related Manuals for Miller 25

Summary of Contents for Miller 25

  • Page 1 Fluid Head OPERATOR’S MANUAL #1022 Arrow 25 Fluid Head...

  • Page 2: Features And Controls

    Features and Controls Sliding Platform 1/4” and Pin Adaptor Camera Screws Camera Plate Quick Release Knob Safety Tab Tilt Lock Counterbalance Selector Tilt Drag Control Pan Drag Control Bubble Level Fig. 1...
  • Page 3 Features and Controls Tilt Lock Pan Handle Pan Lock Pan Handle Clamp Sliding Platform Lock Threaded Stud Clamp Nut Fig. 2...

  • Page 4: Safety Instructions

    Introduction Thank you for purchasing the Arrow 25 Fluid Head. The Arrow 25 Fluid Head has been designed to suit payload capacities from lightweight DVCAM up to standard configuration ENG cameras. The robust design and construction of the Arrow 25 Fluid...

  • Page 5: Technical Data

    Technical Data Weight - kg (lb) 3.0 (6.6) Payload Range - kg (lb) 5 - 14 (11.0 - 30.9) Max Capacity - kg (lb) 25 (55.1) Tilt Drag 5 Selectable fluid drag positions + 0 Tilt Range + 90 / -75...

  • Page 6: Operating Instructions

    Operating Instructions The operating instructions are described in six steps. Please read and understand these instructions before using this equipment. Do not omit any steps. 1 Fluid Head Set-up 1.1 Loosen the PAN HANDLE CLAMP fully then rotate the PAN HANDLE until it is approximately perpendicular to the THREADED STUD (fig.
  • Page 7 Operating Instructions 2. Camera Set-up 2.1 Remove the CAMERA PLATE by pulling down the SAFETY TAB while rotating the QUICK RELEASE KNOB to the left. The CAMERA PLATE should pop out. 2.2 Refer to the Camera’s owners manual for correct method of attachment to the CAMERA PLATE.
  • Page 8 3. Counterbalance Control The counterbalance system was designed to neutralise the effect of the camera weight when it is tilted. The Arrow 25 Fluid Head offers a 4 position counterbalance system which can be operated via the COUNTERBALANCE SELECTOR (fig.
  • Page 9 ◗ LOCK is partially applied. 6. Illumination. The Arrow 25 Fluid Head offers illumination of the PAN & TILT DRAG CONTROL settings, BUBBLE LEVEL and PAN & TILT INDICATOR when the low ambient light conditions exist. Illumination can be achieved by pressing the ILLUMINATION BUTTON once.

  • Page 10: Maintenance

    Do not use stiff brushes, abrasives, harsh detergents and ◗ solvents. Battery Replacement The Arrow 25 Fluid Head uses a single GP23A type - 12 Volt battery for Illumination. Miller recommends the following batteries to provide long life performance – Duracell MN21/23, Eveready A23 or Vinnic L1028.

  • Page 11: Spare Parts And Accessories

    Storage The Arrow 25 Fluid Head can be stored for extended periods; Miller recommends storage in a Miller Soft Case and the following: Remove battery. ◗ Clean the external surfaces. ◗ Keep in a dry place away from direct sunlight.
  • Page 12 MILLER CAMERA SUPPORT EQUIPMENT 30 Hotham Parade Artarmon, Sydney NSW 2064 Australia Tel: +61 2 9439 6377 Fax: +61 2 9438 2819 Email: sales@miller.com.au D 7113-1 10/06...
