ROOMS TO GO HMVN 2601-1 Assembly Instructions

ROOMS
TO GO
Thank you for purchasing this product. Be sure to check all packing material carefully for small
parts which may have come loose inside the carton during shipment. Identify and count all parts and
compare with the HARDWARE LIST below.
Caution: Please read all instructions carefully before starting the assembly process. These parts are
cumbersome and heavy. Therefore, two people are recommended in order to prevent personal injury and
insure the parts are not damaged during the assembly.
A. TABLE TOP - 1PC
NO.
BOLT 1/4*20*18mm
1
SPRING WASHER 1/4*Ø12*1mm
FLAT WASHER 1/4*Ø16*2mm
BOLT 5/16*18*32mm
2
SPRING WASHER 5/16*Ø14*1.5mm
FLAT WASHER 5/16*Ø19*2mm
3 ALLEN KEY M4
STEP 1:
C
A
ASSEMBLY INSTRUCTIONS

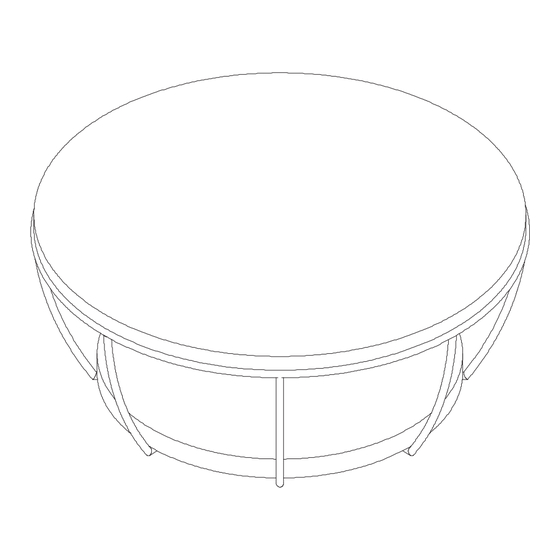

HMVN: 2601-1 ROUND COCKTAIL TABLE
This product is manufactured by HMVN for Rooms To Go
PARTS LIST
B. BOTTOM SHELF WITH 4 CASTERS - 1 PC
HARDWARE LIST
Q'TY
8 PCS
8 PCS
Note: Do not tighten all screws &
Bolts until the table is fully
assembly.
1 PC
STEP 2:
1-3
22126038
SKU#
C. LEG - 4 PCS
1
3
Made in Vietnam
