HMNF
Thank you for your purchase. Before discarding packaging material be sure you have
located all the parts including the necessary hardware and tools listed on the instruction
sheet below.
Parts List
# 1
1pc
Bar Top w/ Pads
# 4
16pcs
2" Plastic Ring
# 7
2pcs
#5 Shelf Stretcher
#10
1pc
Glass Holder
Hardware List
No
Figure
A
B
C
Please do not tighten any bolt firmly before you put all of them in place.
# 2
1pc
Middle Glass Shelf w/o Label
# 5
2pcs
#5 Shelf Stretcher
# 8
8pcs
Long Post
Description
Bolt 5/16"x2-1/2"
Pan Bolt
1/4"x 20 x 3/4"
Washer 1/4" x 5/8"
Assembly Instruction
129

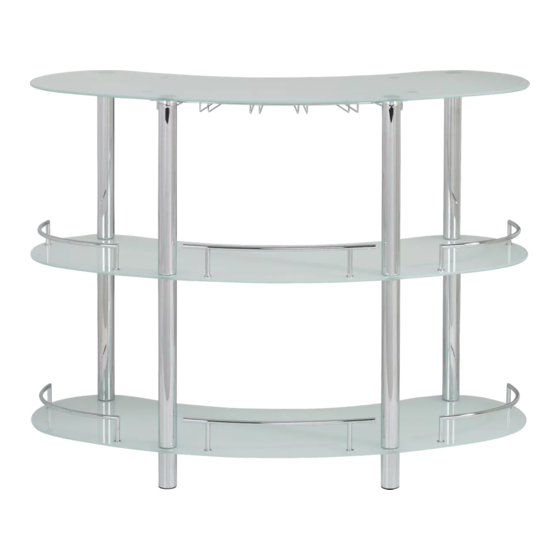

BAR TABLE
SKU# 43101295
QTY
No
Figure
12
D
12
E
12
# 3
1pc
Bottom Glass Shelf w/ Label
# 6
2pcs
Center Shelf Stretcher
# 9
4pcs
Short Post
Description
Pan Bolt
1/4"x 20 x 3/8"
4mm Hex Allen
Wrench
QT
Y
4
1
Advertisement
Related Manuals for ROOMS TO GO HMNF 129
Summary of Contents for ROOMS TO GO HMNF 129
- Page 1 Assembly Instruction BAR TABLE HMNF SKU# 43101295 Thank you for your purchase. Before discarding packaging material be sure you have located all the parts including the necessary hardware and tools listed on the instruction sheet below. Parts List Bar Top w/ Pads Middle Glass Shelf w/o Label Bottom Glass Shelf w/ Label 16pcs...
- Page 2 Step 1) Put all parts on a soft surface to prevent scratches and pre-assemble middle glass shelf (#2) and bottom glass shelf (#3) as below. Attach shelf stretcher (#5), center shelf stretcher (#6) and shelf stretcher (#7) to glass shelf (#2) & (#3) by using bolt (B) and washer (C) as below shown then tighten all bolts firmly.
- Page 3 Step 3) Put pre-assembled middle glass shelf (#2) on the frame then repeat to attach bolt (A), long post (#8) and plastic ring (#4) to pre-assembled middle glass shelf (#2) one by one bottom-up accordingly again. ↩ ↩ Step 4) Put pre-assembled bottom glass shelf (#3) on the frame again then attach plastic ring (#4), bolt (A) and short post (#9) to pre-assembled bottom glass shelf (#3) as below shown.
- Page 4 Step 5) ATTENTION ! Re-checking all glass holder bolts (D) firmly and re-swivel all posts (8) & (9) bottom-up to make all firmly enough as below shown. Turn the bar table upside down by 2 strong persons carefully. ATTENTION ! Checking glass holder bolts.
