ROOMS TO GO AUGR RTG5888-01 Assembly Instruction Manual

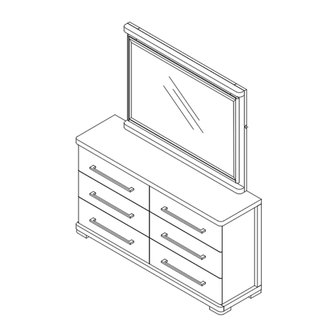

COMPLETE

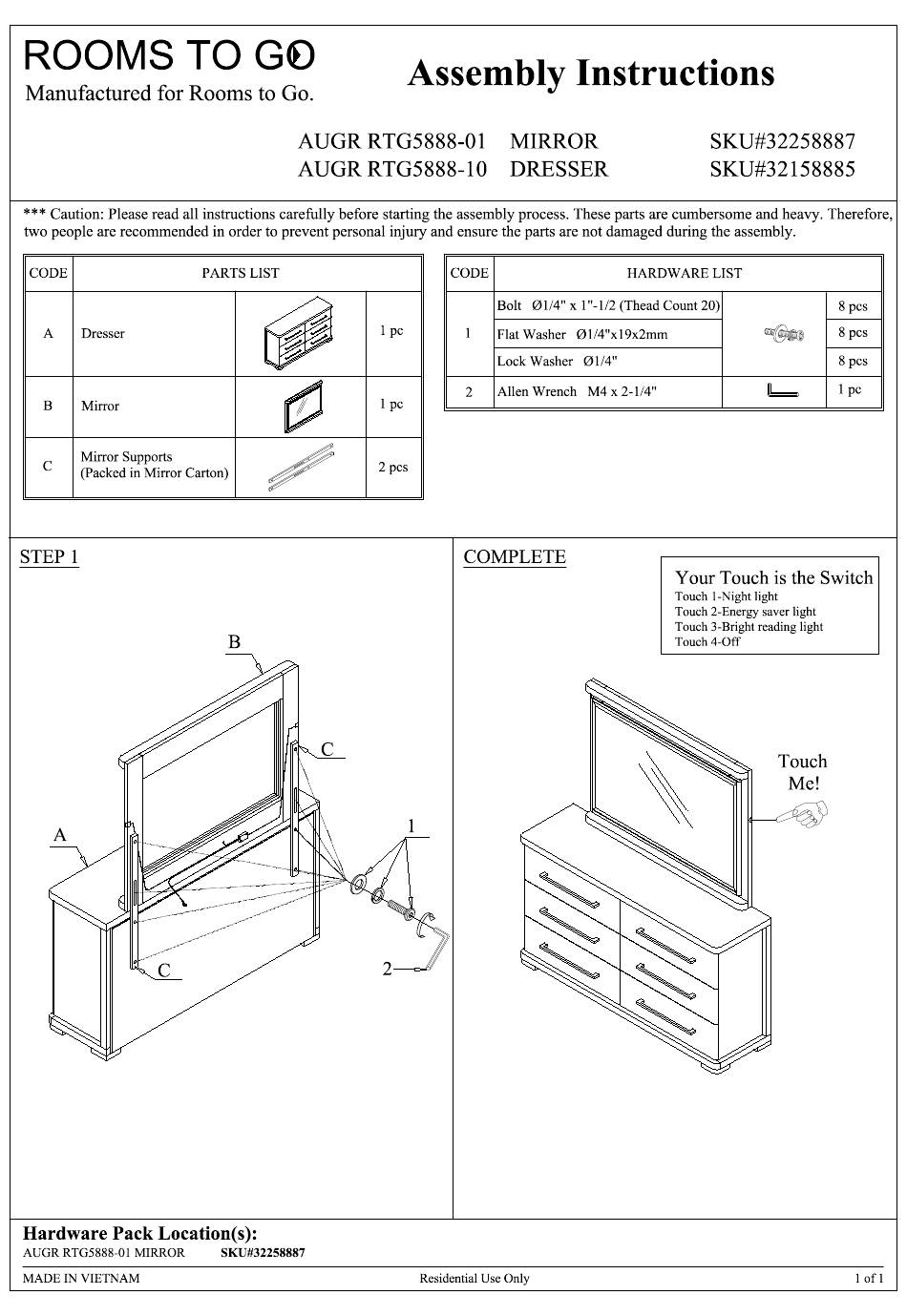

Assembly Instructions
AUGR RTG5888-01 MIRROR
ROOMS TO GO
Manufactured for Rooms to Go.
SKU#32258887
AUGR RTG5888-10 DRESSER SKU#32158885
1
8 pcs
Flat Washer Ø1/4"x19x2mm
Lock Washer Ø1/4"
Bolt Ø1/4" x 1"-1/2 ( Thead Count 20)
8 pcs
HARDWARE LIST
2
B
A
1 pc
PART S LIST CODE
C
1 pc
2 pcs
CODE
8 pcs
1 pc
Dresser
Mirror
Mirror Supports
(Packed in Mirror Carton)
Allen Wrench M4 x 2-1/4"
Touch
Me!
Your Touch is the Switch
Touch 1-Night light
Touch 2-Energy saver light
Touch 3-Bright reading light
Touch 4-Off
B
A
C
C
1
2
*** Caution: Please read all instructions carefully before starting the assembly process. These parts are cumbersome and heavy. There
two people are recommended in order to prevent personal injury and ensure the parts are not damaged during the assembly.
Hardware Pack Location(s):
AUGR RTG5888-01 MIRROR SKU#32258887
STEP 1
MADE IN VIETNAM Residential Use Only 1
