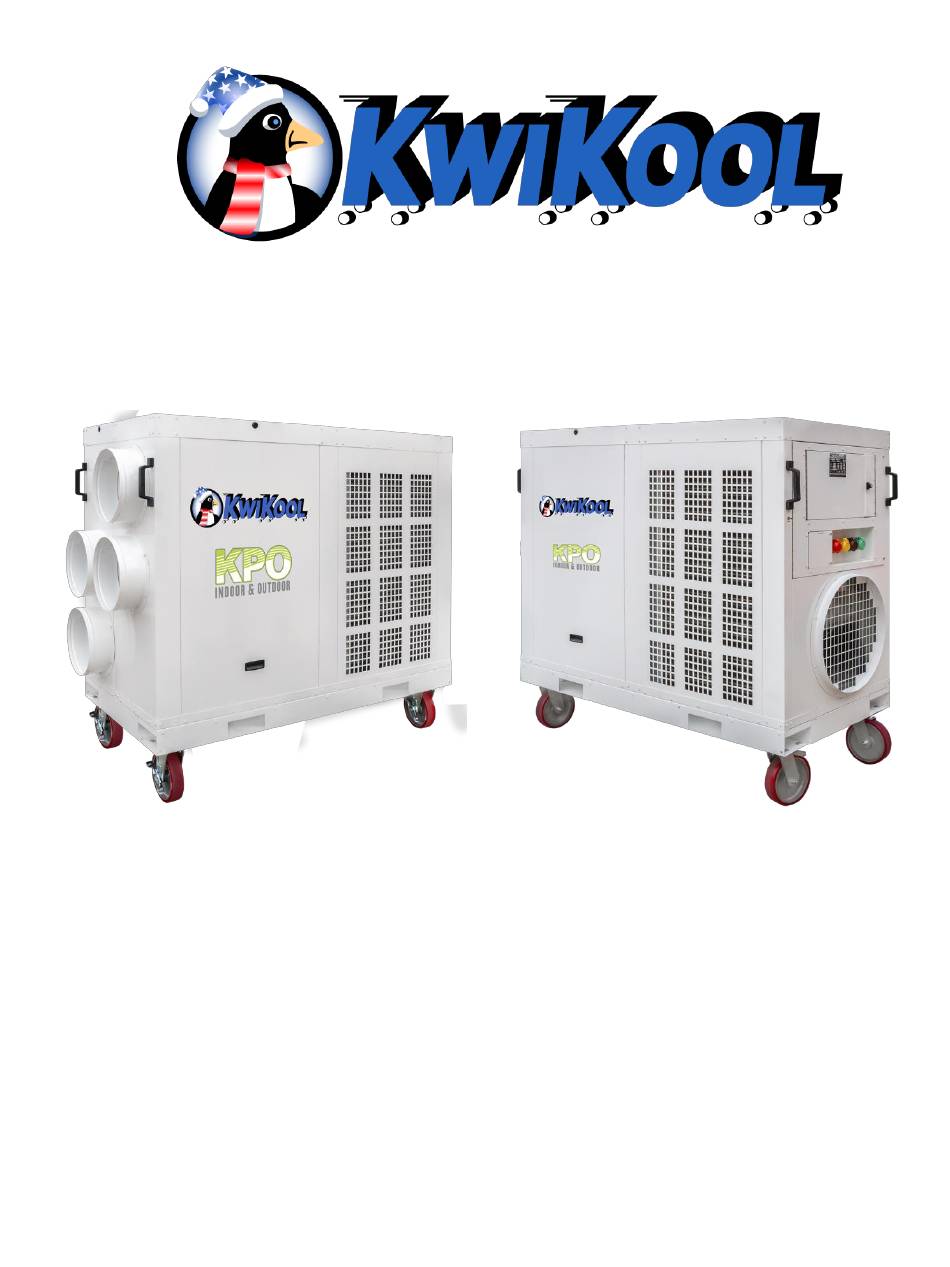

- Page 1 KPO PORTABLE AIR CONDITIONERS KWIKOOL KWIKOOL SERIES KPOX-XX PORTABLE AIR CONDITIONER OPERATION MANUAL...
-
Page 2: Table Of Contents
MAINTENANCE ............................... 18 AIR FILTERS ....................................18 CONDENSER DRIVE BELTS ................................18 SECTION VIII - UTILIZING THE KWIKOOL KPO SYSTEM........................19 SECTION IX – TECHNICIAN/STAFF SETTINGS ............................ 19 TECHNICIAN PARAMETER LIST ................................19 SECTION X - USER PARAMETER SETTINGS ............................19... - Page 3 KPO PORTABLE AIR CONDITIONERS KWIKOOL SECTION XI - ALARM CODES LIST ..............................20 ALARM CODES LIST ....................................20 SECTION XII - KPO TROUBLESHOOTING GUIDE ..........................21 KPO TROUBLESHOOTING TABLE ................................21...
-
Page 4: Unit Components
KPO PORTABLE AIR CONDITIONERS SECTION 1 UNIT COMPONENTS Before installing and using the KwiKool KPO Series Port- able Air Conditioner, read this manual carefully for instruc- tions on proper usage and all safeguards. This manual should be retained for future reference. -
Page 5: Kpo12
KPO PORTABLE AIR CONDITIONERS KWIKOOL KPO12... -
Page 6: Kpo25
KWIKOOL KPO PORTABLE AIR CONDITIONERS KPO25... -
Page 7: Installation And Assembly
KPO PORTABLE AIR CONDITIONERS KWIKOOL SECTION II INSTALLATION AND ASSEMBLY PREVIEW THE INSTALLATION SITE WARNING In COOL Mode, DO NOT place the KPOXX in the space that is being cooled. The KPO is designed to be outside the conditioned space and ducted in. -
Page 8: Dinstall Condensate Line
1. The supply air works best directed to equipment inlets or directly on the area to be conditioned. 2. The KPO series requires ducts to direct the cooling or heating into the conditioned space. This is done with 12” duct on KPO5 & KPO12 and 20” duct on KPO25. - Page 9 Customers using this unit only to blow conditioned air and that are not trying to condition a space may not need to connect a return air duct. However, the KPO series requires a minimum amount of duct to operate (see specifications). If operating this unit with no ducting, reduce the return air by at least 50%.
-
Page 10: Operational Safeguards
KPO PORTABLE AIR CONDITIONERS SECTION III OPERATIONAL SAFEGUARDS Read the following warnings and safeguards carefully before installing or moving the KwiKool. WARNING Do not operate or install the KwiKool unit in a potentially explo- sive, combustible, or corrosive gas atmosphere. -
Page 11: Unit Operation
KPO PORTABLE AIR CONDITIONERS KWIKOOL SECTION IV UNIT OPERATION STARTUP 1. Apply electrical power. When power is supplied to the unit, the controller will become operational. All KPO systems are equipped with a power/ phase monitor. 2. KPO12 and KPO25 users will have to place the unit’s built in breaker to the ON position to engage the controller. -
Page 12: Blcd Buttons Functionality Table
KWIKOOL KPO PORTABLE AIR CONDITIONERS LCD BUTTONS FUNCTIONALITY TABLE BUTTON OPERATION INSTRUC- FUNCTION TIONS Short Press Start or Stop Operation On/Off Short Press EXIT, in Tech and User Settings List On/Off Up or Down Arrows Short Press Change Set Point Temperature... -
Page 13: Coperating Modes
Press ON and heating will begin. Fire rated or high temperature duct is NOT required to use with the KPO series in heat mode. The heat rating for KPO systems is as follows: KPO25 is 48 KVA, KPO12 is 24 KVA, and KPO5 is 12 KVA. - Page 14 KWIKOOL KPO PORTABLE AIR CONDITIONERS NOTE The heat function on KwiKool KPO systems will not require a time delay or compressor operation; therefore, there is no delay in starting and no need to manage condensate water or condenser air discharge.
-
Page 15: Built In Safeguards
KwiKool. The KwiKool will sound an audible alarm and displays LP on the control. There is an automatic reset upon correction of the low-pressure condition. If this alarm is en- gaged the system will not operate in COOL, FAN or HEAT mode. Call 1-800-KWIKOOL, if this alarm is present on initial startup. -
Page 16: Fautomatic Restart
KPO PORTABLE AIR CONDITIONERS AUTOMATIC RESTART In the event of a power loss, the KwiKool resumes operation when the power is restored if in the ON position. All operational functions are saved in the memory of the control. CONDENSATE PUMP & HIGH-LEVEL ALARM KPO systems are factory-equipped with an internal high lift condensate pump. -
Page 17: Bcapacity & Temperature Settings
The unit should be positioned as close to the space to be conditioned as possible with the return air duct directly around the area of highest load. Place the KwiKool system on a level surface to ensure proper condensate water flow and be sure the surface can support the weight of the KwiKool. -
Page 18: Maintenance
MAINTENANCE AIR FILTERS The KwiKool comes from the factory with filters installed on the evaporator inlet to prevent dust and de- bris from entering the system and circulating in the conditioned space. Factory installed filters are a disposable type and must be periodically checked and replaced based on the air quality of the condi- tioned space. -
Page 19: Section Viii - Utilizing The Kwikool Kpo System
In contrast to conventional air conditioners, which circulate air conditioning capacity evenly to a space. KwiKool systems are used for cooling an area with a high concentration of heat load, many times from electrical or computer equipment. Understanding the capabilities of the KwiKool can help the operator avoid problems. -
Page 20: User Parameter List
KWIKOOL KPO PORTABLE AIR CONDITIONERS USER PARAMETER LIST Select ON/OFF to exit or after 1 minute the display will default back to the operating screen. P30- Beeper enable Select 0 or 1 0- Disable, 1- enable P40-Filter counter Hours/10- 0 thru 999... - Page 21 System sounds audible A condition exists with the See advanced troubleshooting section below, alarm. Control displays mechanical system involving or call 1-800-KwiKool. CP, LP, or HP pressure or condensate flow. System starts up but is System is in time out; con-...
- Page 22 System proper operation not level. Check condensate line for clog or crimping. Resets automatically upon correction. Call 1-800-KwiKool. Display reads HP. Mechanical system has de- Correct condition with air flow in or out of tected high pressure.
- Page 23 Appears when Input from Fault detected from A1 input, confirm usage, equipped. A1 is opened. and call 1-800-KWIKOOL if input code is not used but is displaying. Control displays A2, if Appears when Input from Fault detected from A2 input, confirm usage, equipped.
- Page 24 Reset if needed. Note displayed fault code on FD displays and the coming electrical power or the drive and call 1-800 KwiKool if problem per- High-Pressure Switch is not receiving an operating sists. trips while the compres- signal.
