  • Page 1 OPERATION MANUAL Engineered Safe for use in Health Care Environments WATER OR AIR COOLED UV LIGHT | HEPA FILTER KWBIO1411 WATER COOLED KBIO1411 AIR COOLED KBIX1411 Air Cooled Ionizer Stainless Steel Commercial Strength Hepa Filtration + Ultraviolet Irradiation 13,800 BTUH (1-Ton) 115V 15 Amp Standard...
  • Page 2 FAMILY OF PRODUCTS...

  • Page 3: Operational Safeguards

    To avoid electrical shock, keep your KwiKool system away from water and liquid. DO NOT touch your system with wet hands. Is your KwiKool unit stable? It only takes a minute to drop a level onto the oor. Make sure it is level and stable before you power up.
  • Page 4 The CDC recommends four lines of defense against infec- ® tion which are pressure, ltration, puri cation, and dilution. Kwikool Biokool™ targets these requirements, empowering health care facilities to meet their two primary goals, improving patient outcomes and also pro - tability.

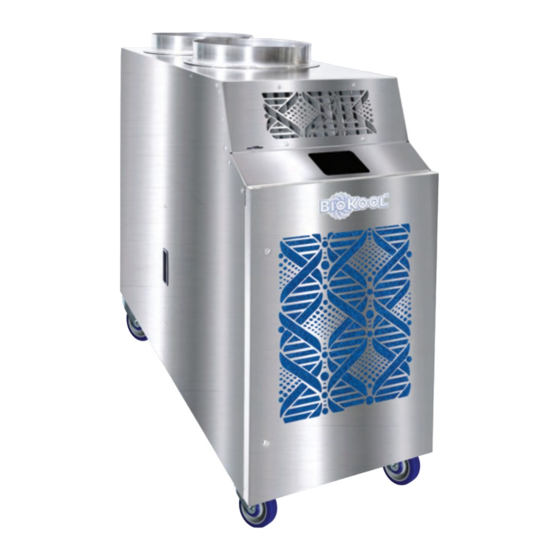

  • Page 5 Vent Control Condensate Alarm Jack Cold Air Return Access Door Access Door Vent Control Condenser Air Inlet H.P. Reset Condenser Air Outlet H.P. Service Port Cord Storage L.P. Service Port Condensate Nipple Biokool™ is the only portable air conditioner specially designed to perform air therapy for regulation in sensitive health care facilities.
  • Page 6 ® Biokool™ is the new benchmark for supplemental, hygienic, air KwiKool conditioning that can live up to the exceptional and uncompromising standards required inside of medical and hospital environments. KWBIO1411...
  • Page 7 KWBIO1411 WATER COOLED PORTABLE PATENT PENDING 16.33 29.0 37.5 Vent Control Sight Glass (Remove Cover) Cold Air Return Condensate Alarm Jack Access Panel Condensate Nipple KoolPad Digital Control H.P. Reset Switch Cold Air Supply Condensate Alarm Jack Condenser Water Inlet H.P.
  • Page 8 KWBIO1411 13,800 BTUH (1-Ton) WATER COOLED 115V 15 Amp Standard COOLING CAPACITY BTU/hr @95 F at 60%RH 13,800 / 1-Ton AIR PURIFICATION HEPA Filter 99.999% @ > .12 Microns UVC Light Wave Length UVC 17 Wa�s / Max 85 Wa�s COMPRESSOR DATA Compressor Type Herme�c Rotary...
  • Page 9 KBIO1411 AIR COOLED PORTABLE PATENT PENDING PATENT PENDING 16.33 32.5 37.5 13 14 Vent Control Storage Pocket Cold Air Return Power Cord Access Door Condensate Alarm Jack KoolPad Digital Control Condensate Nipple Cold Air Supply H.P. Reset Switch Condenser Air Inlet Low Pressure Service Port Condenser Air Outlet High Pressure Service Port...
  • Page 10 KBIO1411 | KBIX1411 13,800 BTUH (1-Ton) AIR COOLED 115V 15 Amp Standard COOLING CAPACITY BTU/hr @95 F at 60%RH 13,800 / 1-Ton AIR PURIFICATION HEPA Filter 99.9% @ > .12 Microns UVC Light Wave Length UVC 17 Wa�s / Max 85 Wa�s KBIX - Ioniza�on Needle Point COMPRESSOR DATA...

  • Page 11: Condensate Tank

    BioKool™ systems come standard with an external 5-gallon condensate tank. The tank is equipped with a oat switch that shuts your KwiKool down and alerts operators with an alarm and display, when the condensate tank is full. It will read CF Condensate Full, on the screen.
  • Page 12 Install the replacement ceiling panel(s) in the ceiling grid with the duct attached, connect the open end of the duct to the anges on your KwiKool and secure with supplied clamps. Your KwiKool must have fresh make up air going to the condenser to operate at peak performance.

  • Page 13: Making Connections

    If you aren’t sure about your power, contact a ® systems are factory equipped with 8 feet of licensed electrician. KwiKool power cable sized to meet the power requirement of your system. Extension power cable is allowed but cannot exceed 25 feet and must be rated to operate your unit.

  • Page 14: Filter Maintenance

    FILTER MAINTENANCE Cleaning The Pre Filter Unplug System Remove any and all power sources from the unit. Access And Remove The Filter Loosen the two screws on the lter access door until the door opens. Access the blue lter from the front panel. Pull it out from behind the door anges. Option One In an open, well ventilated area blow out your blue pre- lter with compressed air away from you or others.
  • Page 15 BIOKOOL IS HEPA PURITY Common standards require that a HEPA air lter must remove 99.9% of particles greater than or equal to 0.3 µm diameter. 99.9% FILTRATION 50 MICRONS HUMAN HAIR 40 MICRONS AVERAGE FILTER 8 MICRONS RED BLOOD CELL 3 MICRONS BACTERIA SIZE PATENT PENDING...
  • Page 16 HEPA INSTALLATION STEPS IMPORTANT: Remove any and all power sources from the unit. Unplug the unit. Gently loosen the two screws on the lter access panel door until the door opens. Using the lip on the lter, pull the HEPA lter straight out. Air ow direction is marked on the lter.
  • Page 17 HEPA MAINTENANCE Kwikool’s KBIO BioKool™ system is a highly e ective way to reduce microor- ganisms such as virus, bacteria, and mold spores. Filters also prevent dust and debris from circulating in the conditioned space. This portable system will come standard from the factory with both the pre- lter and HEPA lter installed on the evaporator inlet.
  • Page 18 Biokool’s™ Ultraviolet germicidal lamp provides a much more powerful and concentrated e ect of ultraviolet energy than can be found naturally. Germicidal UV provides a highly e ective method of destroying microorganisms. PART NUMBER KK-UVB1 800-KWIKOOL (1-800-594-5665) TO ORDER...
  • Page 19 ULTRAVIOLET BULB REPLACE- Max Voltage: 210 Volts | Max Wattage: 85 Watts IMPORTANT: Remove any and all power sources from the unit. Unplug the unit. Use a flat screwdriver and turn the latches 180 degrees. Then pull the handle. With one hand holding the plug and the other holding the white end cap of the bulb in place, pull the two apart.
  • Page 20 Reach inside the unit and push the bulb up before pulling it out of it’s secure rubber holder. Properly dispose of the old bulb. FRONT BACK Push the front panel closed and �ghten the screws un�l they are firmly secured. Make sure there aren’t any wires hanging out, and close the access door, repea�ng the steps to secure it with the installed...
  • Page 21 AIR THERAPY Internal UVC light further reduces Biokool’s steel walls and non microorganisms by irradiating the porous evaporator insulation evaporator coil, airstream and the prohibit spores and microbes internal surfaces of the from attaching, keeping internal evaporator chamber. surfaces pure. BioKool™...
  • Page 22 APPLICATION REQUIRE- Air Temperature Requirements In Cool Mode Environmental requirements of your KwiKool® unit at the installation site are 0°F to 110°F for the condenser make up air located on each side of the unit. If the unit is operating in an environment above 110°F the high pressure switch may trip, causing the compressor to stop, or you may also notice diminished perfor- mance.
  • Page 23 Se�ngs Select Fan Control On | Off Mode When you initially power up the system and select ON, you will discover the digital control of your Kwikool ® system is factory set to COOL. The manual will engaged point 72°F.

  • Page 24: Operation Control

    OPERATION CONTROL A light tap on the ARROW icons raise and lower the set point temperature in the current operational mode. A light tap on the MODE icon will enable you to adjust the operating mode COOL MODE and FAN A light tap on the FAN icon will adjust between AUTO and MANUAL.

  • Page 25: Cool Mode

    OPERATION CONTROL Cool Mode Press ON blinks when the time delay is complete. The hot air exhaust fan will ramp up as refrigerant pressure builds. It is normal for this fan to have a delayed start. Also, it’s normal for the fan to stop and start during the operating process, especially in low temperatures.

  • Page 26: User Parameters

    USER PARAMETERS Enter this mode by short pressing the icon. SETTING USER SETTINGS Start by going to SETTINGS. Use FAN and MODE to scroll. Use the UP and DOWN arrows to change values. SETTING FOR YOUR TECHNICAL STAFF Hold MODE until it beeps and ashes a lock icon, then hold FAN until it beeps.

  • Page 27: Time Delay

    Protects your KwiKool® while in COOL mode from potential damage by delaying the compressor from starting before the pressures in the mechanical system equalize. Always activates when your KwiKool cycles o , is turned o , power is lost and then restored.

  • Page 28: Automatic Restart

    BUILT IN SAFEGUARDS Automatic Restart In the event of a power loss your KwiKool® resumes operation when the power is restored if in the ON position. All operational functions are preserved in the memory of the control. Condensate Pump & High Level Alarm BioKool™...

  • Page 29: Alarm Codes

    ALARM CODES Customer Installed input Optional Condensate Fault Pump Standard Low Freon Level Detected Standard High Pressure Detected Standard Run Time for Filter Has Elapsed Standard Freezing Detected Optional Run Time for UV Light Elapsed Standard P04 - Lock Fan Button Select 0 or 1 0 - Unlock, 1 - Lock P05 - Lock Mode Button...
  • Page 30 USER PARAMETERS Beeper Enable Select 0 or 1 0 - Disable 1 - Enable Filter Counter Hours 10 - 999 Read Only Filter Counter Reset Select 1 to Reset Defaults To 0 Filter Alarm Delay Days, Select 0-180 0 - Disable P100 Enable Dimming Select 0 or 1...

  • Page 31: Troubleshooting Guide

    Resets automa�cally upon fault correc�on, or call 1-800-KWIKOOL if the problem persist. Microprocessor board has High pressure is normally Unit Displays HP, Audio caused by reduced detected high pressure.
  • Page 32 filters, adjust temperature out of set point to allow the unit factory specifica�ons. to cycle, add another Evaporator door open, KwiKool® system or larger mechanical system capacity model, close malfunc�on. evaporator compartment door, inspect supply air blower for worn condi�on or breaking, Install service gauges to view pressures.
  • Page 33 FP. microprocessor has Call 1-800-KWIKOOL detected freezing on the if your system lacks evaporator coil. a freeze sensor. System is ON and System is in �me out.
  • Page 34 PATENT PENDING KWIKOOL Manufactures Excellent Commercial Portable Cooling Equipment IN THE U.S.A. Manufacturing Excellence. 1-800-KWIKOOL (594-5665) sales@kwikool.com...
