- Page 1 End User Manual KwiKool Portable Air Conditioners...
-
Page 2: Table Of Contents
8. Unit Maintenance 9. Utilizing Your KwiKool System 10. Trouble Shooting Guide Preface Before installing and using your KwiKool portable air conditioner, read this manual carefully for instructions on proper usage and all safeguards. This manual should be retained for future reference. -
Page 3: Unit Components

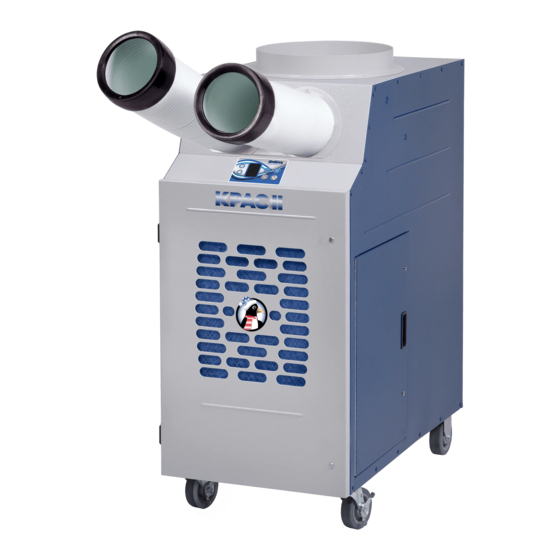

1. UNIT COMPONENTS a. Control Panel – Operational functions b. Condenser Exhaust Grill – Hot air condenser exhaust c. Condenser Intake Grill – Outside air condenser intake d. Air Chutes – Cold air supply, if equipped e. Line Set – Split-system only, 2 flexible 20-foot 2-inch diameter braided stainless steel lines with electrical condenser connection f. -
Page 4: Assembly And Installation
Air Chutes (If Equipped) – Using the quick connect clamps (supplied); install two cooling air chutes to your KwiKool portable air conditioner. Slide the plastic flexible air chutes onto the metal flanges on the top front of the unit and tighten the screw part of the clamps until snug to secure the chute. -
Page 5: Operational Safeguards
3. OPERATIONAL SAFEGUARDS Read the following safeguards carefully before installing the unit: a. Do not operate or install your KwiKool unit in a potentially explosive, combustible, or corrosive gas atmosphere. b. Keep your KwiKool unit away from flammable materials and other sources of heat. -
Page 6: Unit Operation
To insure your KwiKool unit is stable, the floor on which the unit is to be place should be level, free of vibration and strong enough to support the weight of your KwiKool model. e. Do not move the unit while it is running. Before moving the unit, first unplug the unit from the power source. -
Page 7: Built In Unit Safeguards
The display will flash the “F” of the C” during the timeout. b. Fan Cycling – All KwiKool models, except water-cooled units, are equipped with fan cycling, which provides limited coil freeze protection from low ambient temperatures and reduces startup current. -
Page 8: Application Requirements
7. APPLICATION REQUIREMENTS a. Air Temperature Requirements – The environmental requirements of your KwiKool unit at the installation site are 60 to 110 degrees F for the intake condenser air. If the unit is operated in an environment above this range, the high head pressure switch will trip, stopping the unit’s compressor, which must... -
Page 9: Unit Maintenance
In contract to conventional air conditioners, which circulate air conditioning capacity evenly to an entire floor, the KwiKool units are designed for cooling an area with a high concentration of heat load, usually from electrical or computer equipment. Understanding the capabilities of your unit can help you avoid problems. -
Page 10: Trouble Shooting Guide
Call your nearest KwiKool distributor or 1-800-594-5665 for help or for questions about other applications.
