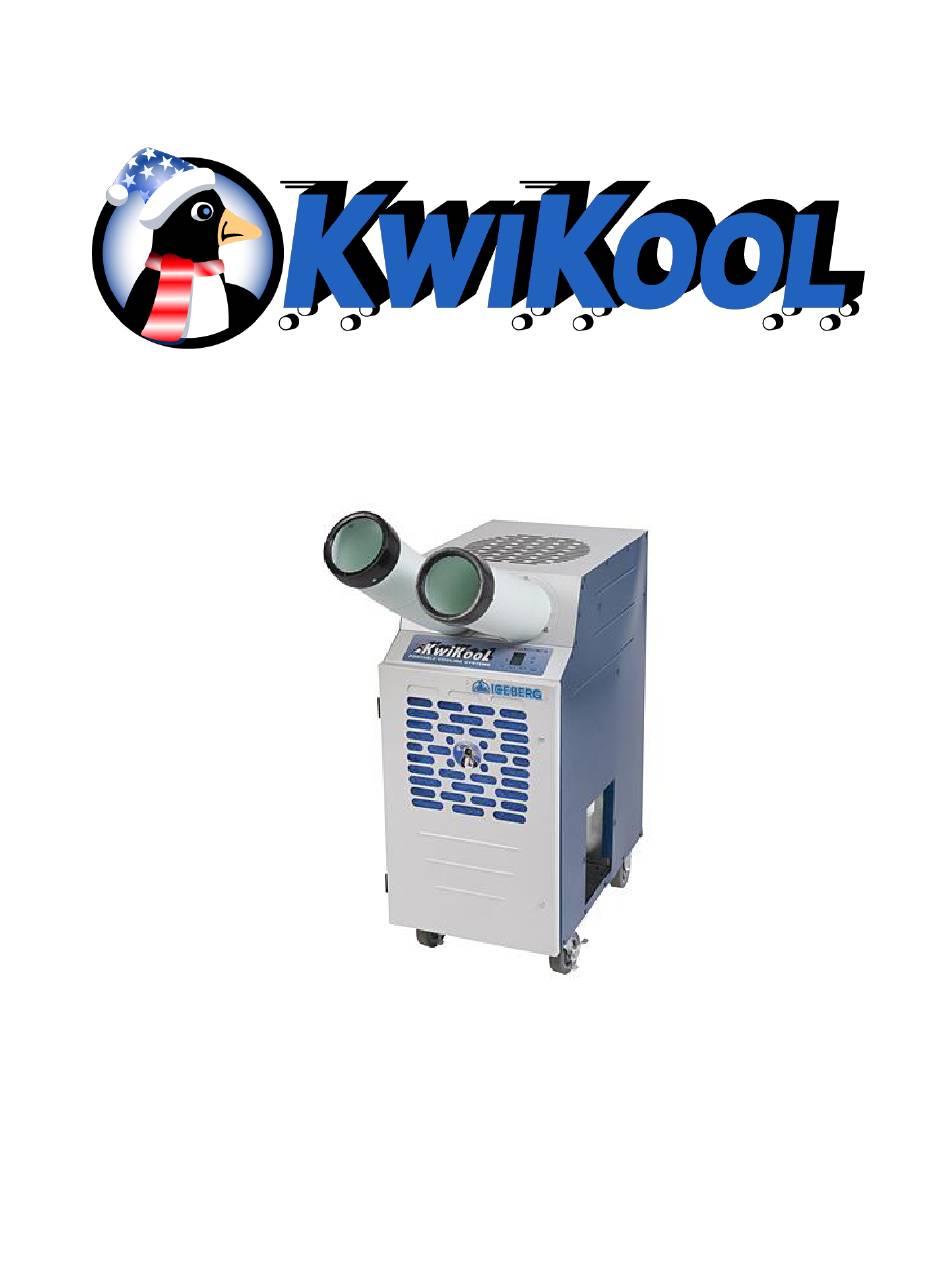

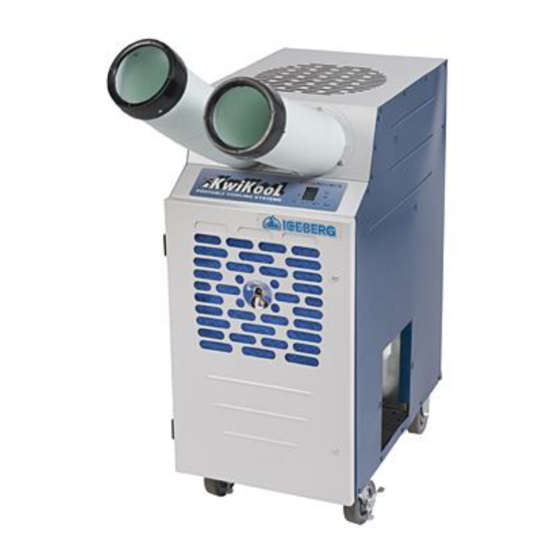

- Page 1 KPAC-II PORTABLE AIR CONDITIONERS KWIKOOL KPAC-II SERIES PORTABLE AIR CONDITIONERS OPERATION MANUAL...
-
Page 2: Table Of Contents
KWIKOOL KPAC-II PORTABLE AIR CONDITIONERS Table of Contents SECTION I UNIT COMPONENTS ..............................3 KPAC-II PORTABLE AIR CONDITIONERS, MODELS 1411, 1811, 2421 ...................... 3 SECTION II INSTALLATION AND ASSEMBLY............................. 5 AIR CHUTES (STANDARD EQUIPMENT) ............................5 CONDENSATE TANK ..................................5 FOR CEILING KIT USERS - SINGLE DUCT CEILING KIT ........................ -
Page 3: Section I
This manual should be retained for future reference. KwiKool KPAC II Portable Air Conditioners are designed to remove heated air from a specific area. The systems use flexible air chutes (standard feature) to supply cool air and an optional ceiling kit can be used to send the hot air up through the ceiling or to another space. - Page 4 KWIKOOL KPAC-II PORTABLE AIR CONDITIONERS KPAC 2421-2 Legend Cold Air Return 4. Condenser Air Inlet 5. Condenser Air Outlet 14” Control Pad Cold Air Supply 6. Power Cord...
-
Page 5: Installation And Assembly
KPAC-II PORTABLE AIR CONDITIONERS KWIKOOL SECTION II INSTALLATION AND ASSEMBLY AIR CHUTES (STANDARD EQUIPMENT) Install Supply air flanges with the supplied fasteners to the front of the KPAC-II unit above the control panel. Use the supplied clamps to attach the air chutes to the collars. See instructions in the air chute kit for specific procedures. -
Page 6: Dpower Connection
6. The negative pressure will pull in surrounding Conditioned air and ambient air from unsealed areas which may include dust, moisture or other particles. Visit www.KwiKool.com for more information and a complete set up guide. POWER CONNECTION Verify that the source power, phase and breaker size is compatible with the KPAC-II serial plate information and that the electrical circuit is dedicated only for the use of the KPAC-II Unit. -
Page 7: Operational Safeguards
Do not insert hands or any other object into the Cold air supply chutes. Do not operate the KPAC-II system with its service doors open. If the KPAC-II system makes abnormal noises or vibrations, call 1-800-KWIKOOL (1-800-594-5665) for help. -
Page 8: Unit Operation
KWIKOOL KPAC-II PORTABLE AIR CONDITIONERS SECTION IV UNIT OPERATION APPLY ELECTRICAL POWER Once power is engaged by plugging in the system and/or switching the breaker to the ON position, the KPAC-II display will show the current room temperature. The unit is set to OFF and the fan is set to the default position. -
Page 9: Csystem Operation
KPAC-II PORTABLE AIR CONDITIONERS KWIKOOL a) When changing the set point, pressing the + or – key, the word SET will appear on the display and the current set point flashes ON and OFF. The value of the set point is changed 1 degree each time the + or –... -
Page 10: Built In Safeguards
Display flashes C or F if the time delay is activated. The time delay lasts for about 2.5 minutes. HIGH-PRESSURE SWITCH AND ALARM Protects the KPAC-II Series unit from potential damage to the mechanical system by shutting down, sounding an audible alarm and displaying a fault code (AL) when the system pressure exceeds safe operating conditions. -
Page 11: Bcapacity & Temperature Settings
F temperature. To reach temperatures below 72 degrees F, the unit must have extra capacity. CAUTION KwiKool recommends that the operator not set the temperature set point below 72 degrees F, unless there is excess cooling capacity beyond the heat load, since this may cause the unit’s evaporator coil to freeze up. -
Page 12: Maintenance
KWIKOOL KPAC-II PORTABLE AIR CONDITIONERS SECTION VII MAINTENANCE AIR FILTERS The KPAC-II unit comes from the factory with filters installed on the evaporator inlet to prevent dust and debris from entering the system and circulating in the conditioned space. Factory-installed filters are a disposable type and must be periodically checked and replaced based on the air quality of the conditioned space. - Page 13 Auto resets upon FP. Optional. sensor. (Special order). correction. Call 1-800-KWIKOOL ( 800-594-5665) if the system is not equipped with a freeze sensor. System is ON and Wait 2.5 minutes for the time delay...
- Page 14 Breaker is undersized or faulty. consult with the electrician or: Power cable is too long and/or 1-800-594- Call 1-800-KWIKOOL ( undersized. 5665) for guidance. Display shows 32 and No connection of temperature sensor 1-800-594-...
