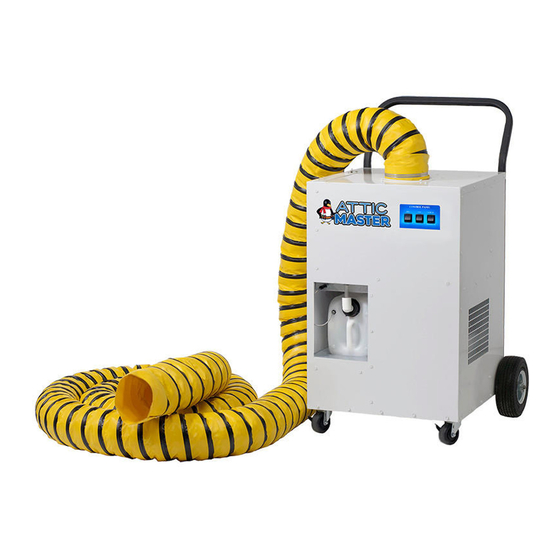

The KwiKool Attic Master is designed to move conditioned air up to 90 feet into a hot ambient
environment in order to provide spot cooling. The duct opening must be placed within 5 feet of
the person being cooled for effective use. The specially made insulated duct is guaranteed not
to form condensation on the outside of the duct. The outside duct covering has air holes, which
allow it to be easily compressed back into its carry bag.
ATTIC MASTER QUICK START PROCEDURE:
1) Select Location of System - Make sure all sides of unit are not blocked to avoid restricted air
flow.
2) Remove duct from bag. Attach duct clamp to the ring on top of the unit. Make sure clamp
is tight & run eyelets into the ring.
Attic Master User Guide
Duct Clamp
30‐ft. Length
of Duct
High/Low
On/Off
Fan/Cool
Condensate
Tank
Handle
Hot Air
Exhaust
8‐in Wheel
Advertisement
Table of Contents
Related Manuals for KwiKool Attic Master
Summary of Contents for KwiKool Attic Master
- Page 1 Attic Master User Guide The KwiKool Attic Master is designed to move conditioned air up to 90 feet into a hot ambient environment in order to provide spot cooling. The duct opening must be placed within 5 feet of the person being cooled for effective use. The specially made insulated duct is guaranteed not to form condensation on the outside of the duct.
- Page 2 4) Plug unit into a dedicated 115-volt/15-amp circuit, such as the outlet for a washing machine. OPERATING PROCEDURE: The Attic Master controls are located on the top right side of the front of the unit. There are 3 switches (See picture): 1.
