- Page 1 KPAC II Operation Manual...
- Page 3 Section VI / Application Requirements - Page: 9 Section VII / Maintenance - Page: 9 Section VIII / Utilizing Your KwiKool System - Page: 10 Section IX / Fault Codes - Page: 10 Section X / KPAC II Troubleshooting Guide - Page: 10-12...
-
Page 5: I / Unit Components

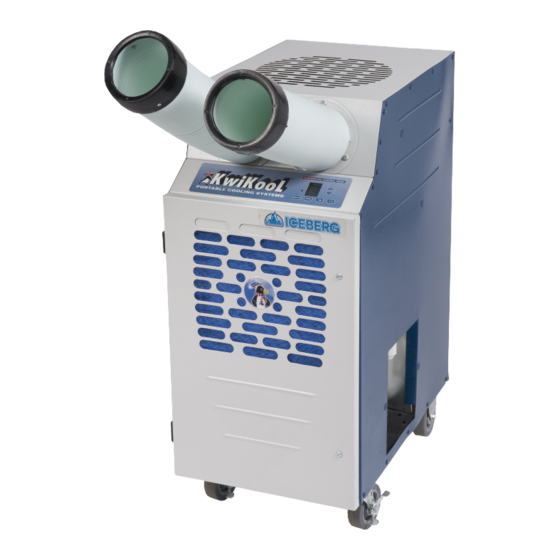

I / Unit Components KPAC 1411 LEGEND Cold Air Return Condenser Air Inlet Control Pad Condenser Air Outlet Cold Air Supply Power Cord 1-800-KWIKOOL ETL LISTED CONFORM CERTIFIED TO CAN/ Page 3... -
Page 6: Assembly And Installation
II / Assembly and Installation Air Chutes (standard equipped) - Install supply air flanges to the front of your KwiKool unit above the control panel. (See instructions in the air chute kit for specific procedures). Air Chutes - Conditioned air supply, equipped. - Page 7 Install the replacement ceiling panel in the ceiling grid with the duct attached, connect the open end of the duct to the flange on your KwiKool and secure with supplied clamps. The area where the discharge air is directed must be open to a space that is well vented or large enough to absorb the load without pressurizing and coming back into your conditioned space.
-
Page 8: Operational Safeguards
To insure your KwiKool system is stable, the floor on which the system is to be place should be level, free of vibration and strong enough to support the weight of your KwiKool model. - Page 9 For best results always adjust the set point to a temperature your KwiKool can cycle on and off at to avoid operational issues such as freezing or rapid discharge fan cycling, KwiKool systems are designed to maintain the set point when sized properly and constant operation without achieving the set point may shorten the expected operational life of your system.
- Page 10 This always activates when your KwiKool cycles off, is turned off, power is lost and then restored or the operational mode is changed. Display flashes C or F if the time delay is activated.
-
Page 11: Application Requirements
Air Temperature Requirements - The environmental requirements of your KwiKool unit at the installation site are 60 to 110 degrees F for the condenser make-up air located on the back of the unit. If the unit is operated in an environment above 110 F the high pressure switch may trip, stopping the unit’s compressor. -
Page 12: Utilizing Your Kwikool System
In contrast to conventional air conditioners, which circulate air conditioning capacity evenly to an entire floor, KwiKool systems are designed for cooling an area with a high concentra- tion of heat load, usually from electrical or computer equipment. Understanding the capabili- ties of your KwiKool can help you avoid problems. - Page 13 To reset, press the button labeled HP reset located in the condenser make-up air inlet on the back of your KwiKool (you should feel a click when resetting). System is ON and display is System is in time out (F or...
- Page 14 Evaporator door open, another KwiKool system or mechanical system larger capacity model. malfunction. Install service gauges to view pressures.
- Page 16 Revision 062016...
