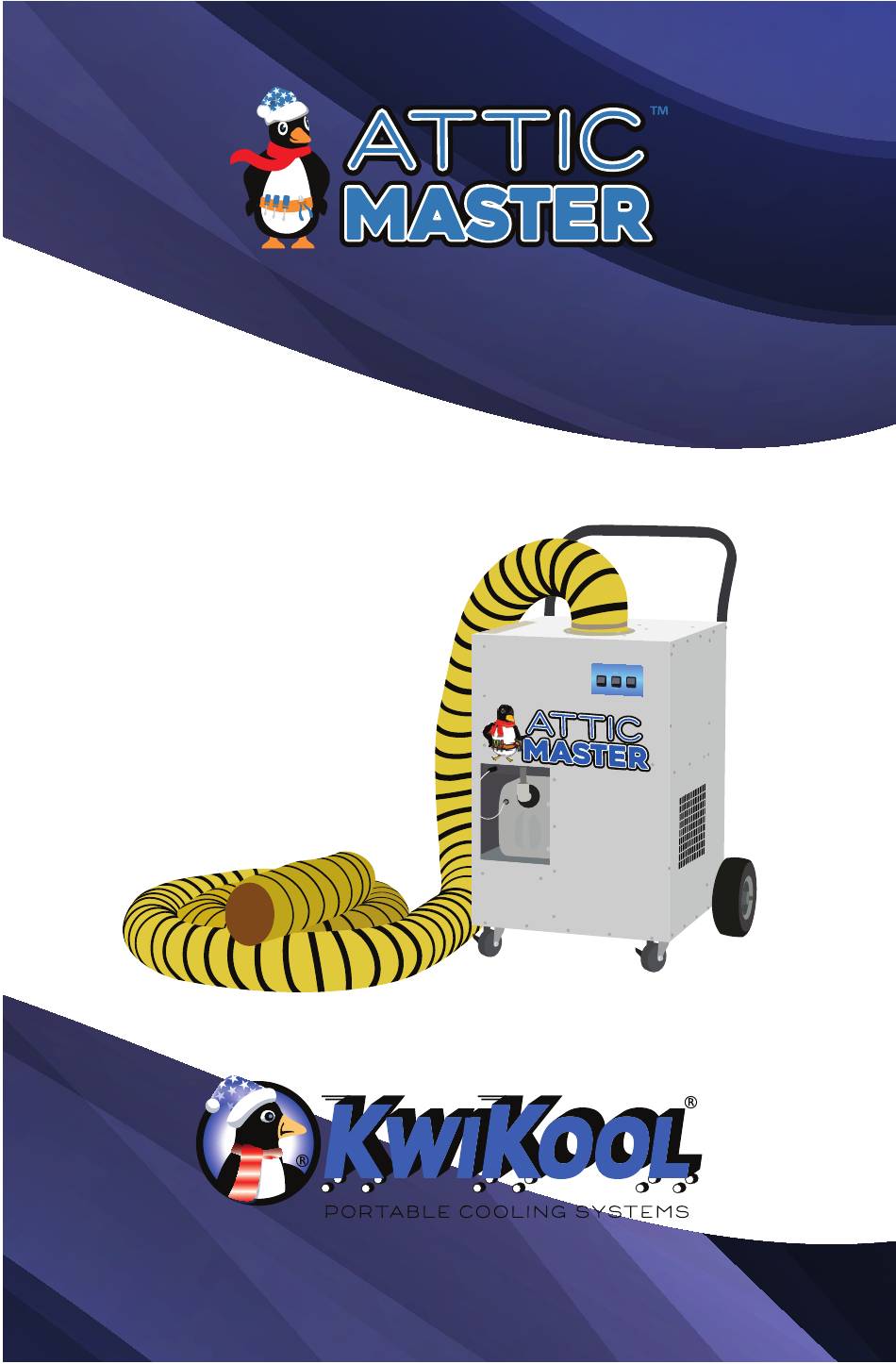

- Page 1 OPERATION MANUAL KWIKOOL ATTICMASTER PORTABLE AIR CONDITIONER CONTR OL PANEL LOW 30 HIGH 90 We Manufacture Excellent Commercial Portable Cooling Equipment. Kwikool.com | 800-Kwikool | Sales@Kwikool.com...
-
Page 2: You Can Access The Whole Manual Online
You can access the whole manual online. atticmaster-manual.com (59 4-5 66 5) -
Page 4: Table Of Contents
Changing The Filter Section VI Important Details Read this manual carefully before installing and using your KwiKool Portable Cooling System. This concise manual o ers e ective and proper usage instructions, including safeguards for the most e ective practice. Retain this manual future reference. -
Page 5: Components
Front Swivel Wheels Introduction To The KAM1411 The KwiKool AtticMaster is designed to move conditioned air up to 90’ into a hot ambient environment in order to provide spot cooling. The duct opening must be placed within 5’ of the person being cooled for e ective use. The specially made insulated duct is guaranteed not to form condensation on the outside of the duct. - Page 6 QUICK START PROCEDURE Select The Location To Set Up Your System Make sure all four sides of your unit are clear, and not blocked in any way that would restrict air ow. Remove The 30’ Duct From Its Storage Bag Attach the duct clamp to the steel ring on top of the unit.
-
Page 7: Operating Procedure
OPERATING PROCEDURE AtticMaster Controls The AtticMaster controls are located on the top right side on the front of the unit. There are 3 switches (See Unit Components). On/O Switch 2-position switch, turns unit on or o . Fan/Cool Switch 2-position switch, turns unit fan only on or fan with compressor on. Low/High Switch 2-position switch, turns the fan from low speed for use with a 30’... -
Page 8: Changing The Filter
CHANGING THE FILTER Cleaning The KAM1411 Return Air Filter Is As Easy As 1-2-3 KwiKool Attic Master Systems have a washable and re-useable lter. This lter should be removed and cleaned periodically. When the system is not in operation. Disconnect the power before removing the lter. The KAM1411 AtticMaster lter size is 12”... - Page 9 CHANGING THE FILTER Step 2 Next, raise the lter up, it should easily slide out of the pocket. Step 3 Clean the lter by rinsing it with water or blow it out using a compressed gas. Do not use excessive pressure when doing so. Allow the lter to dry completely before re-installing it.
-
Page 10: Important Details
IMPORTANT DETAILS The System Must Stay Upright Always keep the unit in an upright position, do not lay it on its side. If it happens that your portable cooling system is found in this circumstance, placed on its side, turn it upright and don’t power it up for at least four hours - or compressor damage could occur, due to oil displacement. - Page 11 Manufacturing Excellence. sales@kwikool.com KWIKOOL Manufactures Excellent Commercial Portable Cooling Equipment IN THE U.S.A. (59 4-5 66 5 )
- Page 12 FA MILY OF PROD UC TS...
