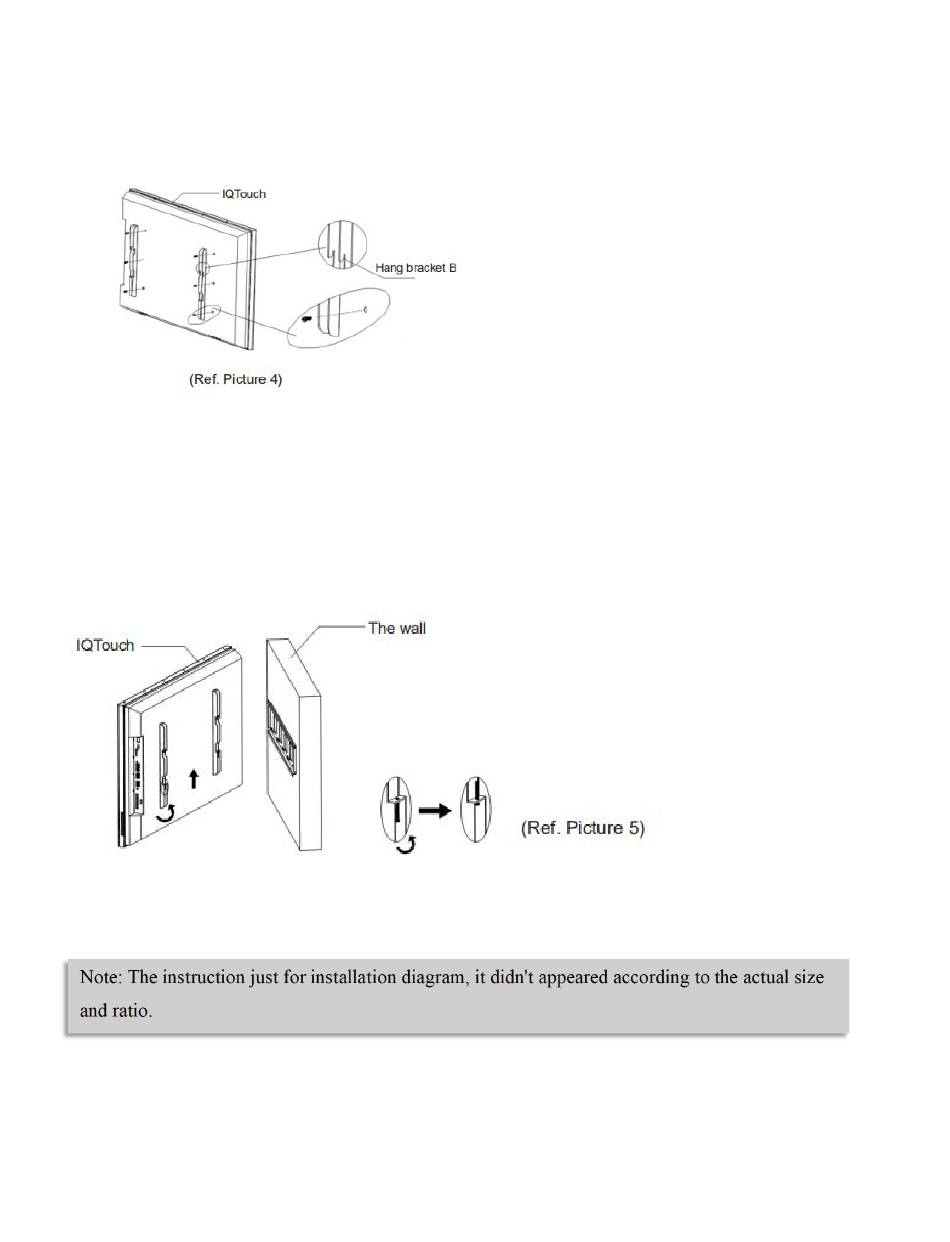

Step4: Install the left& right hang bracket B to IQTouch.
Use screws fix the hang bracket B at the back of IQTouch. Please check the direction of hang bracket B before
installation. (Ref. Picture 4).
Step5: Hang IQTouch on the wall mounting bracket A
Hanging the left &right hang bracket B to the wall mounting bracket A, please ensure two hang brackets B total
hang on wall mounting bracket A, then tighten the screws of hang bracket B to prevent it slide. (Ref. Picture5)
3
