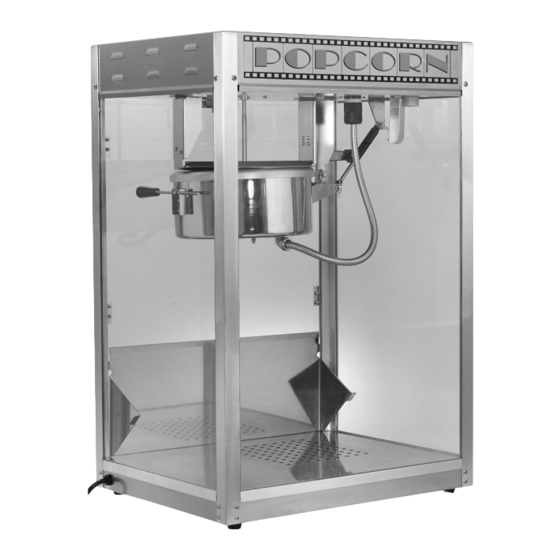

SILVER SCREEN POPCORN MACHINES
INSTALLATION AND OPERATING INSTRUCTION MANUAL
For California Customers
Model
Voltage
Frequency
11087
120V
60Hz
11147
BEFORE OPERATING ANY EQUIPMENT, READ AND FAMILIARIZE YOURSELF WITH THESE USE AND SAFETY INSTRUCTIONS
Congratulations on your purchase of this BenchmarkUSA
with proper care and maintenance, you are sure to experience years of reliable operation from this equipment.
To ensure best results, it is important that you read and follow the instructions in this manual carefully.
It is important to keep these instructions in a safe place for future reference.
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Power
Amperage
1490W
12.4A
1740W
14.5A
Overall Dimensions
Plug Type
Width
19-3/4"
501mm
NEMA
5-15P
24-1/8"
612mm
commercial equipment. When used as intended, and
™
Weight
Depth
Height
15-7/8"
29-3/4"
60 lbs
401mm
753mm
(27.2kg)
19-1/8"
36-5/8"
95 lbs
485mm
928mm
(43.1kg)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winco 11087
Summary of Contents for Winco 11087
-
Page 1: Specifications
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Overall Dimensions Model Voltage Frequency Power Amperage Plug Type Weight Width Depth Height 19-3/4” 15-7/8” 29-3/4” 60 lbs 11087 1490W 12.4A 501mm 401mm 753mm (27.2kg) NEMA 120V 60Hz 5-15P 24-1/8” 19-1/8” 36-5/8” 95 lbs 11147 1740W 14.5A... -
Page 2: Warnings
AND REPAIR. BEFORE DOING ANY MAINTENANCE ET LES RÉPARATIONS. AVANT DE FAIRE OR REPAIR, FOLLOW SERVICE SET UP TOUT ENTRETIEN OU RÉPARATION, VEUILLEZ ARRANGEMENT ON PAGE 11. CONTACTER WINCO. Introduction Immediately Inspect for Shipping Damage Congratulations on the purchase of your BenchmarkUSA Equipment. -
Page 3: Table Of Contents
Table of Contents Specifications ..............1 Warnings .................2 Introduction ..............2 Packaging ...............3 Installation ..............4 Safety Precautions ............5 Operation ................5 Cleaning, Care & Maintenance ........6 Troubleshooting ..............7 Service & Repair ..............7 Exploded View ............8, 10 Spare Parts List ............9, 11 Electrical Diagram ............12 Limited Warranty ............ -
Page 4: Installation
5. DO NOT operate this device or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions, is dropped or damaged in any manner. Return to the nearest WINCO Authorized Service Center for examination, repair and/or adjustment. -
Page 5: Safety Precautions
Ne jamais immerger l'appareil dans l'eau ni utilisez un jet d'eau pour le nettoyer. • If the power cord is damaged, it must be replaced by a WINCO® Approved Recommended Qualified Service Technician in order to avoid a hazard. Operation Proper Grounding Mise à... -
Page 6: Cleaning, Care & Maintenance
DO NOT use a pressure washer to clean. NOTE: Proper cleaning instructions must be followed; otherwise, operation of the unit may be seriously impaired. Do not wash parts in an automatic dishwasher. WINCO authorized service personnel must perform any other servicing. ®... -
Page 7: Troubleshooting
Parts protected by the manufacturer or its agent are not to be adjusted by the installer unless the installer is an authorized service agent. If you have any questions or problems DO NOT send unit to WINCO® without first contacting our customer service department. -
Page 8: Exploded View
Exploded View Model: 11087... -
Page 9: Spare Parts List
Parts List 11087 Description Part # POP8-P7 45 Watt R20 Bulb 47007 Deck Temperature Indicator 4001 Side Glass 2018 120 Gear Motor 47006 Deck Warmer Thermostat 2001 Power Switch 5018 Mixer Assembly 5028 Thumb Screw (1 pc) 4020 Door Hinge Set... - Page 10 Exploded View Model: 11147...
- Page 11 Parts List 11147 Description Part # POP8-P7 45 Watt R20 Bulb 47007 Deck Temperature Indicator 47025 Mixer Assembly 47012 Side Glass 1234 Rubber Foot (1 pc) 2018 120V (50/60Hz) Gear Motor 47006 Deck Warmer Thermostat 2001 Power Switch 47024 Kettle Lid 47027 Lid Lift Handle 47028...
-
Page 12: Electrical Diagram
Electrical Circuit Diagram Models: 11087 and 11147 Kettle Bulb Plug Motor Socket White Motor Kettle Light Thermostat Switch Switch Switch Master Switch Black Cabinet Heater Blue... -
Page 13: Limited Warranty
Limited Warranty & Equipment Warranty Registration WINCO® warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 1 year. The labor warranty is one year from original purchase date or 18 months from actual factory shipment date, whichever date occurs first. - Page 14 Notes...
- Page 15 Notes...
- Page 16 Models: 11087 and 11147 www.wincous.com...
