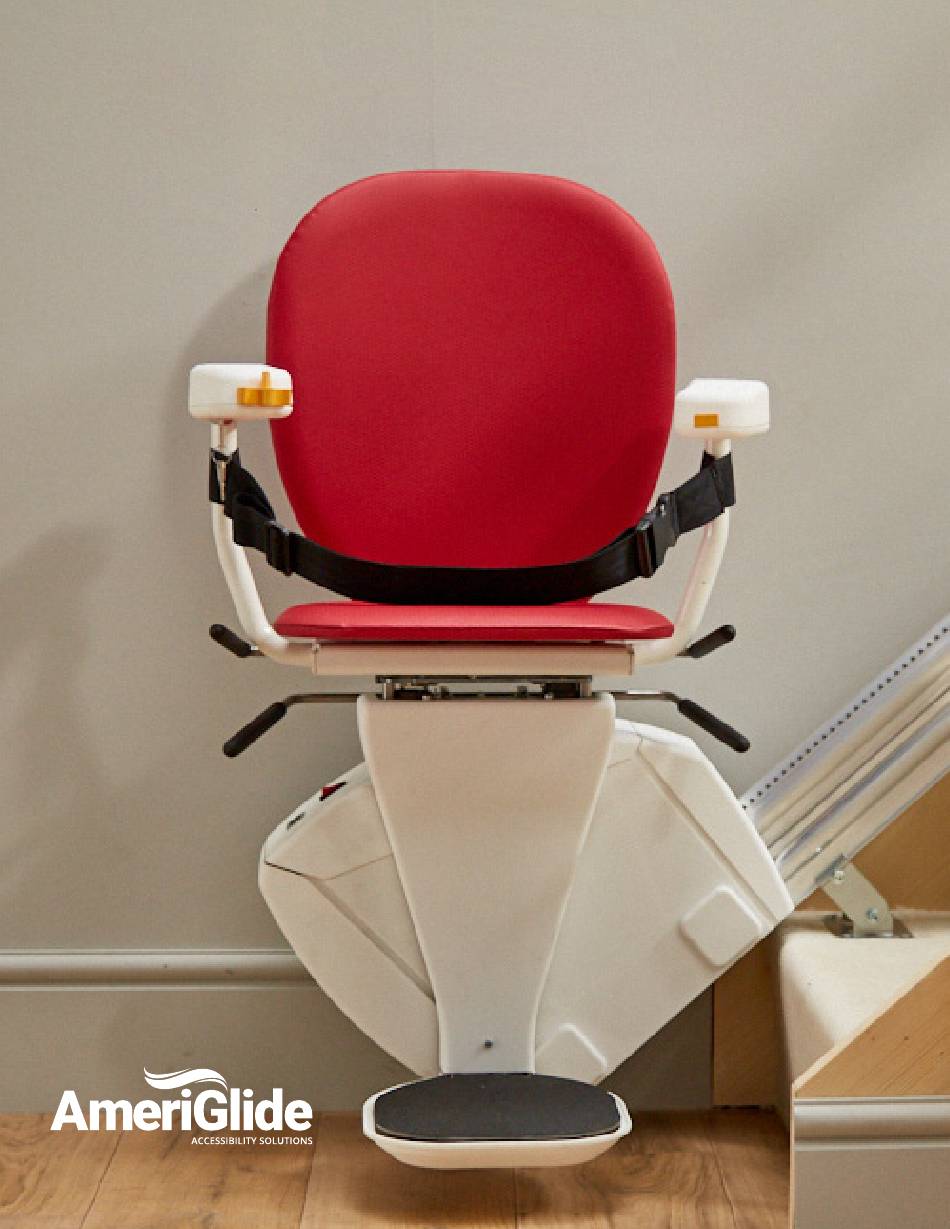

- Page 1 Straight Stair Lift User Guide AmeriGlide.com...
- Page 2 About Your Stair Lift Your stairlift is a sophisticated product specially developed to carry one person sitting on the chair up to a maximum weight capacity of 125kg. The information provided in this manual is based on general specifications concerning the construction, material properties and working methods known to us at the time of publication;...
-
Page 3: Table Of Contents
Table of Contents About Your Stair Lift ......................How to Use Your Stair Lift ....................Safety Instructions ........................ Engineer Instructions ......................Troubleshooting ........................Warranty ..........................PAGE 2... -
Page 4: About Your Stair Lift

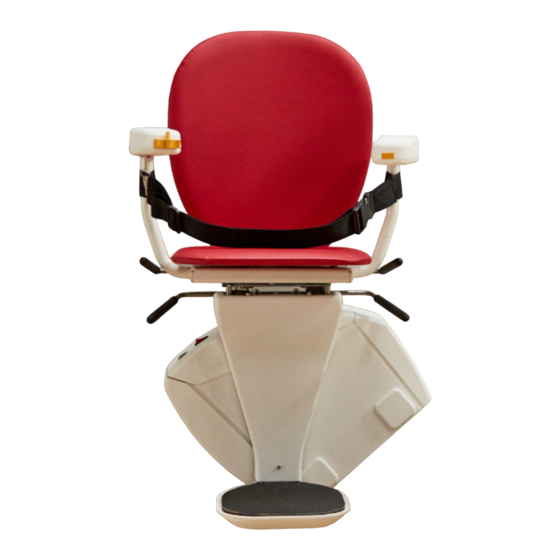

About Your Stair Lift Keyswitch Main Power Footplate Display Switch PAGE 3... - Page 5 Seat Belt Seat Swivel Toggle Footplate Lever Lever Switch PAGE 4...
-
Page 6: How To Use Your Stair Lift
How to Use Your Stair Lift Step 1: Begin with the folded seat Turn key switch on. PAGE 5... - Page 7 Step 2: Turn on the main power button. PAGE 6...
- Page 8 Step 3: Get onto the stair lift Lower the arms and seat. Gently take a seat in the stair lift and make yourself comfortable. PAGE 7...
- Page 9 Step 6: Fasten your seatbelt PAGE 8...
- Page 10 Step 7: Get ready to ride Reach for the footrest lever and gently lower the footrest into the ride position. Ensure you are comfortable and ready to ride. PAGE 9...
- Page 11 Keep your hand on the toggle switch in the direction of travel. Your stair lift is ready to move up or down the stairs. PAGE 10...
- Page 12 Step 8: Travel up or down your stairs Continue to hold the toggle switch in the direction of travel until you reach the end of your journey. PAGE 11...
- Page 13 Step 9: Get ready to get off the stair lift You have now reach the top of the stairs. Ensure the chair has reached the charging position, an audible beep will sound if positioned incorrectly. PAGE 12...
- Page 14 Step 10: Swivel your seat Ensure you have safely stopped before you begin to swivel the seat. To swivel, depress the lever under the seat and swivel the chair safely away from the stairs. PAGE 11...
- Page 15 Step 11: Park the stair lift Unfasten your seatbelt. Ensure it is safe to get off. Please ensure your stair lift has fully completed its journey to ensure the lift is charging correctly. IF THE STAIR LIFT IS NOT CHARGING CORRECTLY, AN AUDIBLE BEEP WILL SOUND.
- Page 16 Your chair should be parked securely on a charge point. Return swivel seat to the original position. Fold armrests and footrest. PAGE 11...
- Page 17 Should your stair lift be parked at the opposite end of the staircase use the remote control to call the stair lift to your position. PAGE 12...
-
Page 18: Safety Instructions
Safety Instructions When using the stair lift always observe locally prevailing safety regulations regarding risk of electric shocks and physical injury. Ensure that there are no obstructions where the stair lift needs to be installed. The entire track must be free of obstacles. Check with your installer if you are unsure. -
Page 19: Engineer Instructions
Engineer Instructions Check the lift for any damage. Check that all parts and packages are on site. Ensure that you have your installation guide book on site. Inspect all parts are in full working order. Only use original lift parts (this could potentially affect your warranty). Ensure all safety devices are fitted correctly, these may only be removed if maintenance or repair is needed and only be serviced by a qualified Engineer. - Page 20 Troubleshooting cont. CHARGE Lift is not charging: Check lift is parked on the charge point. Check the voltage at the charge point, the power is turned on and polarity is correct. FOOTREST LEFT/RIGHT Footrest safety switch activated: Check for obstructions and covers able to move freely. Check footrest wiring loom for continuity as marked on the PCB and using the wiring diagram for correct switch cables.
- Page 21 SEAT LEFT/RIGHT Main chassis safety switch activated: Check for obstructions and covers able to move freely. Check mainframe wiring loom for continuity as marked on the PCB and using the wiring diagram for correct switch cables. SEAT SWIVEL Seat swivel safety switch activated: (will also show when powered swivel is in motion) Check seat is in home position.
- Page 22 OVER SPEED Over speed switch is activated: Wind the lift upward using the handwinder. OVER CURRENT Lift is drawing too much current: Check rack/pinion is clear for the lift to move. Check customer weight does not exceed limit. PAGE 17...
- Page 23 RELAY FAULT Relay is sticking on main PCB: Gently tap the relay to free the mechanism, if this doesn’t work, a new PCB will be required. FINAL LIMIT Lift has over travelled on endstop: Wind the lift away from the endstop and try to operate the stair lift.
-
Page 24: Warranty
MAINTENANCE Once a year, it is advised to call your AmeriGlide authorized dealer to perform the annual inspection, that includes all maintenance and safety inspections and repairs where necessary. Regular maintenance is essential for keeping your stair lift in proper operating condition. - Page 25 Installation Date __________________________________________________________________________________ Installation Provider ______________________________________________________________________________ Service Provider Telephone ______________________________________________________________________ Installation Engineer Signature ___________________________________________________________________ Customer Signature ______________________________________________________________________________ Service Date ______________________________________________________________________________________ Next Service Due _________________________________________________________________________________ Service Provider _________________________________________________________________________________ Service Provider Telephone ______________________________________________________________________ Service Provider Signature _______________________________________________________________________ Customer Signature ______________________________________________________________________________ Service Date ______________________________________________________________________________________ Next Service Due _________________________________________________________________________________ Service Provider _________________________________________________________________________________ Service Provider Telephone ______________________________________________________________________...
- Page 26 1-800-790-1635 AmeriGlide.com 150_AMG Straight SL Owners Guide_040524...
