Summary of Contents for AmeriGlide Vesta

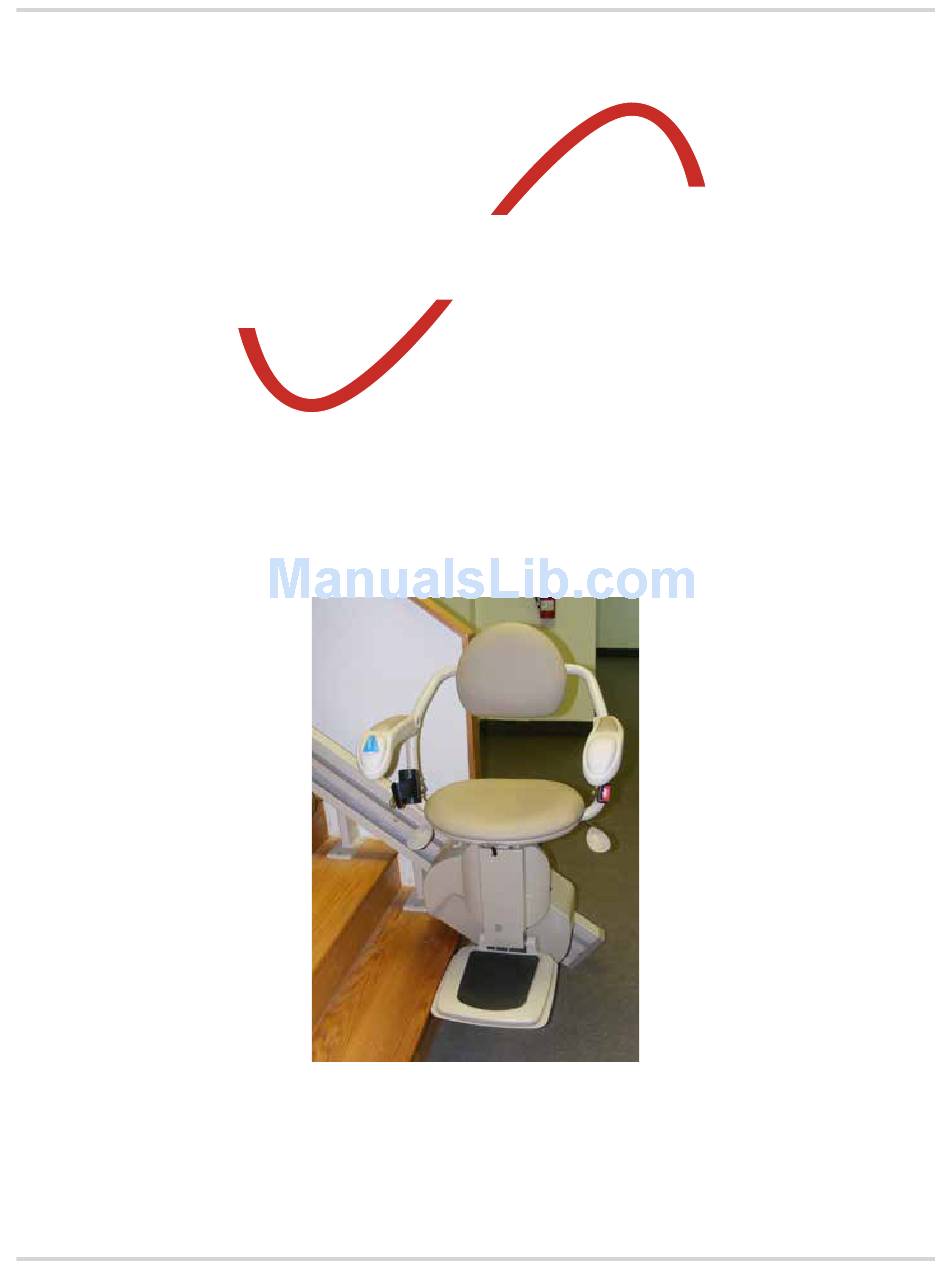

- Page 1 AmeriGlide AmeriGlide Vesta Stair Lift Owner’s Manual...
- Page 2 Glide Vesta Stair Lift. WARRANTY All new AmeriGlide Vesta Stair Lifts are warranted to the original purchaser to be free from defects in material and workmanship for a 5-year period on the drive train and a 2-year pe- riod on all component parts of the lift.
-
Page 3: Table Of Contents
The dealer is to contact the Service Department of AmeriGlide and provide the serial number of the lift along with a descrip- tion of the events leading to the warranty claim. Dealers may charge for labor, service, travel, or other associated costs to make repairs, and such charges are not covered by this Limited Warranty. -
Page 4: To Ensure Safe Operation
To ensure safe operation of this equipment, pay careful attention to the important notes below. • Read this manual carefully before using the AmeriGlide Vesta Stair Lift. • To prevent accidents, adhere strictly to the instructions and keep clear of moving parts at all times. -
Page 5: Description
2. DESCRIPTION Figure 1 shows the exterior components of the AmeriGlide Vesta Stair Lift. UP/DOWN Backrest rocker switch (Please note that you have to hold it down for at least 3 seconds for the unit to Flip-up start moving.) armrests... - Page 6 Figure 2 shows the AmeriGlide Vesta Stair Lift in its folded up position. ON/OFF key switch (optional) FIGURE 2 AmeriGlide Vesta Owner’s Manual...
-
Page 7: Specifications
Charges on standard household power (110 VAC) Charging Constant charge system along the rail ensures the stair lift is always charged Battery-powered operation allows use even through a Emergency operation power failure AmeriGlide Vesta Owner’s Manual... -
Page 8: Features
Seating Features Safety Switches There are upper and lower limit switches on the Vesta to stop the stair lift when it reaches the top or bottom of the stairway. There is also a safety switch for the swivel seat that will prevent the unit from running if the seat is not locked in a normal riding position. -
Page 9: Operation
11. To allow for more room on the stairway, you can fold up the seat, armrests, and footrest when the stair lift is not in use (as shown in Figure 2). Do not unplug the unit from the wall or the batteries will not charge. AmeriGlide Vesta Owner’s Manual... -
Page 10: Safeguards
5. Make a visual check. Do you notice anything about your stair lift that is different or out of place? If the stair lift does not operate after checking the above items, contact your Authorized AmeriGlide Dealer. AmeriGlide Vesta Owner’s Manual... -
Page 11: Maintenance Schedule
To do this, ensure the unit stops at the required position at the top and bottom of the stairway. Visually inspect the rack and gear. Every 6 months If the rack begins to make noise, apply a moderate amount of As required white lithium grease AmeriGlide Vesta Owner’s Manual... -
Page 12: Maintenance Notes
8. MAINTENANCE NOTES Date Time Reason for call Comments Dealer AmeriGlide Vesta Owner’s Manual... -
Page 13: Diagnostics
Upper limit safety switch is acti- You have reached the upper limit. Run vated. the unit in the down direction. Safety edge switch (bumper) in up Remove any obstacle that may have direction is activated. activated the switch. AmeriGlide Vesta Owner’s Manual... - Page 14 Contact your authorized dealer. Main control board has a memory Contact your authorized dealer. problem. Powered swivel did not respond. Contact your authorized dealer. Check that the charger is plugged in No charging current. and charging. AmeriGlide Vesta Owner’s Manual...
-
Page 15: Remote Troubleshooting
(4 screws - 2 are located be- neath the battery cover) and reverse the dip switch set- tings (Figure 4), and repeat the steps described above. FIGURE 4 FIGURE 3 AmeriGlide Vesta Owner’s Manual... - Page 16 FOR OWNER’S RECORDS Customer Name: Installing Dealer: Dealer’s Telephone Number: Date Installed: Serial/Job Number: AmeriGlide Vesta Stair Lift OWNER’S MANUAL Copyright © 2011 AmeriGlide, Inc www.ameriglide.com Support AmeriGlide 3901 Commerce Park Drive Raleigh, NC 27610 Toll Free: 855-595-0278 AmeriGlide Vesta Owner’s Manual...
