AmeriGlide Titan Incline Lift Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTALLATION
Titan Incline Lift

Advertisement

loading
Need help?

Need help?

Do you have a question about the Titan Incline Lift and is the answer not in the manual?

Questions and answers

Related Manuals for AmeriGlide Titan Incline Lift

Summary of Contents for AmeriGlide Titan Incline Lift

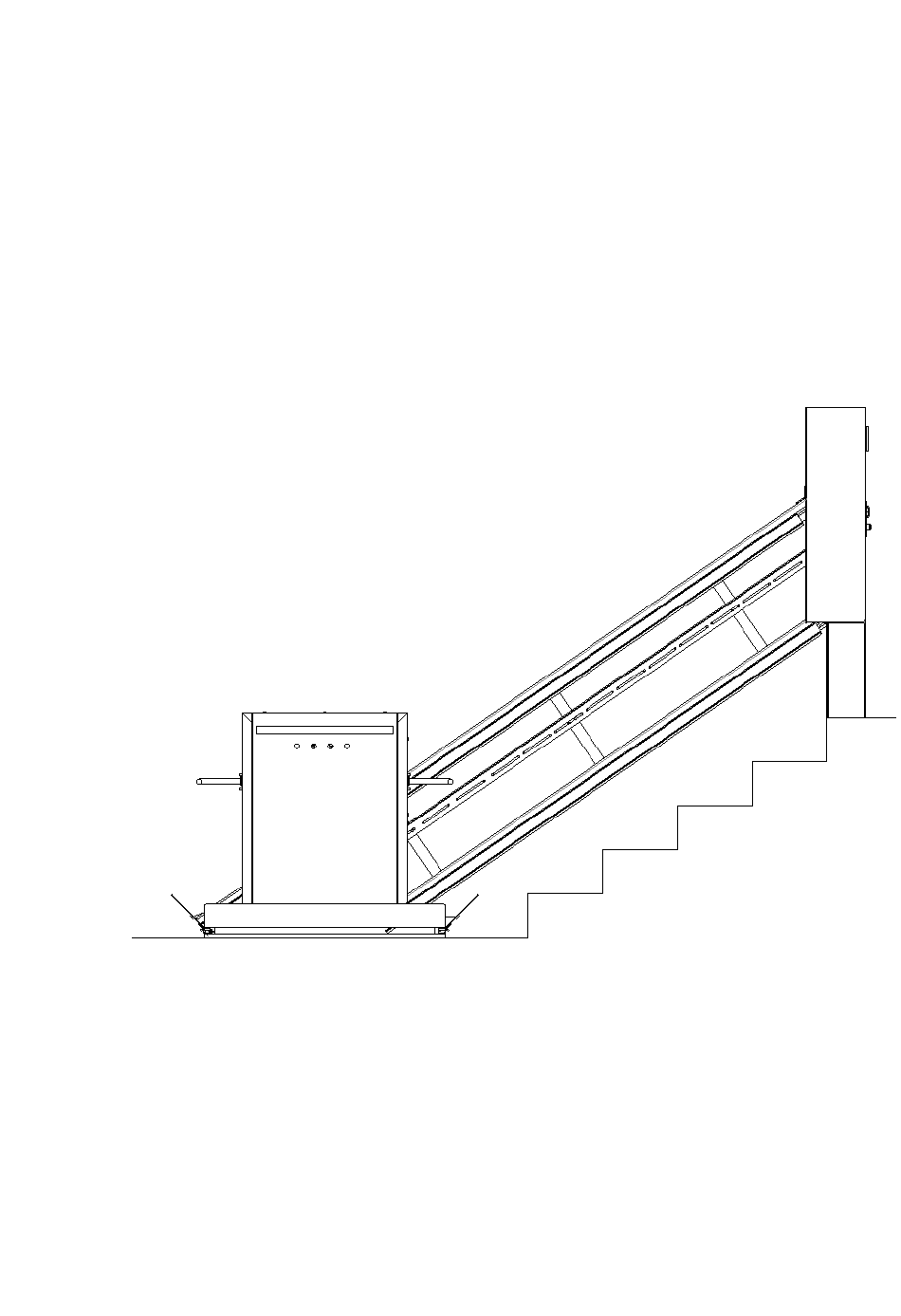

  • Page 1 INSTALLATION Titan Incline Lift...
  • Page 2 Note to the reader : This document is for elevator technicians already trained on this kind of equipment. Technical training must be attempted at AmeriGlide before servicing any of their equipment. Every components shall be provided by the lift manufacturer...

  • Page 3: Main Components

    MAIN COMPONENTS PLATFORM HAND RAIL VEHICULE COMMANDS SAFETY ARM SAFETY FLAP UNDER PAN GUIDE RAILS EMERGENCY MOVING DEVICE CUT-OFF 10) TOP LANDING CALL STATION...

  • Page 4: Column Installation

    COLUMN INSTALLATION Remove column front facia by removing perimeter. Remove the motor gearbox assembly. Locate column lower corner with the last step bullnose. Use no.12 wood screw for column anchoring.
  • Page 5 GUIDE RAILS INSTALLATION (SELF SUPPORTING) If the adjacent wall is not strong enough to support the reactions stated in the installation drawing, it is feasible to install self supporting legs on each step. These legs shall be evenly distributed, the same way as the stud would be located in a standard wall.
  • Page 6 GUIDE RAIL INSTALLATION (STUD WALL) Guide rail will be shipped already assembled with spacers or screwed on plywood. The installer needs to join he column to the rail itself using the metal bracket ‘’ RACCORD’’ already installed on the column. a) Place the rail assembly on the wall b) Screw the rail ‘’Raccord’’...

  • Page 7: Platform Installation

    PLATFORM INSTALLATION a) Install platform on rail by inserting Charriot #2 in the rail. Make sure to leave about 1/8’’ gap between chariot #4 wheel bolts heads and the inside face of the rail. b) Slide in chariot #1 between back of platform and supporting wall c) Slide the bolts in the arc shaped slots d) Make sure all wheels are running on the rail surface, otherwise adjust chariot accordingly.
  • Page 8 UPPER MECHANICAL STOP...
  • Page 9 SAFETY ARMS ARM JOINT FLAP CABLE a) Install lower arm by using the provided bolts un the platform structure b) Install the (gas spring or linear actuator)** on the lower arm lever c) Join the lower and upper arm in the arm joint d) Install the upper arm the same way the lower arm was installed e) Install the (gas spring or linear actuator)** on the upper arm lever f) Install the flaps cables on both arms and adjust so those flats are more...
  • Page 10 FLOOR a) Install the (gas spring or linear actuator)** on the floor rocker b) Adjust the floor level with ½ nominal weight (250 LBS) c) Adjust all floor level switches so that a 15˚ will open the circuit **NOTE: MANUAL ACTION VEHICULE REQUIRE GAS SPRING AUTOMATIC ACTION REQUIRE LINEAR ACTUATOR FINALIZING a) Install the lower call station...
  • Page 11 INSPECTION Titan...
  • Page 12 BEFORE SERVICING a) Run a safety brake functional test b) Check the alarm and E-stop while traveling c) Check the emergency lighting by cutting the main breaker off, not the cut- off. d) Check the underpan safety by lowering the platform and activate the circuit.
  • Page 13 MANUAL MOVING OF THE PLATFORM...
  • Page 14 BATTERY CHARGER TEST PROCEDURE a) Unplug the charger unit from the 120Vac socket b) Run 5 complete travel in order to partially discharge the battery bank c) Make sure the electrical connections are connected such as the red terminal is on the positive electrode and the black on the negative terminal.
  • Page 15 TEST PROCEDURE IN CASE OF FAILURE This procedure explains how to test the protection in case of failure. This procedure must be followed only by certified technicinans. DANGER: THIS TEST PROCEDURE WILL CAUSE ELEVATOR MOUVEMENT, SAFE SECURE HOISTWAY ADVISE EVERY PERSONS SURROUNDING THE PLATFORM.
  • Page 16 MAIN CONTACTOR C1 a) Install a min 18AWG jumper between terminal 60 and 68. This will apply 24Vdc directly on the C1 coil b) After 1.5 sec, the controller will code a fault. The indicator for output A will become negative image. c) Remove the jumper between terminal 60 and 68 d) Reset the controller by pressing the Z4 button e) Connect one end of a jumper to the terminal 60...
  • Page 17 UP CONTACTOR ( M1 ) a) Install a min 18AWG jumper between terminal 60 and 67. This will apply 24Vdc directly on the M1 coil b) Call for an upper landing, after 1.5 sec, the controller should code à fault c) Reset the controller by pressing Z4 on the PLC d) Call for an upper landing and press the CAB E-stop, Lift should stall immediately.
  • Page 18 DOWN CONTACTOR (M2) a) Install a min 18AWG jumper between terminal 60 and 66. This will apply 24Vdc directly on the M2 coil b) Call for an lower landing, after 1.5 sec, the controller should code à fault c) Reset the controller by pressing Z4 on the PLC d) Call for a lower landing and press the CAB E-stop, Lift should stall immediately.
  • Page 19 GROUNDING This test will prove that over current protection devices are working fine and will protect the electrical equipment in case of short circuit. Connect the negative terminal from an ohmmeter to the negative terminal of the battery bank. Measure electrical resistivity between battery negative terminal and: ...

  • Page 20: Maintenance

    MAINTENANCE Titan Incline...
  • Page 21 BIANNUAL MAINTENANCE  Commands buttons are in good shape  Adjust level switches  Check ultimate limits switch  Check emergency lighting  Check floor mouvement and limit switches ( Cut over 15˚Deg )  Check safety arms movement and limits switches ( Cut over 15˚Deg ) ...
  • Page 22 BOGGY  Check the chain connecting link on safety brake  Check tightening torque on guide wheels 3/8-16 NC at 23 lbft  Check for undesirable noise and/vibration  Vérifier le bon état de la maille de raccord de la chaîne ...
  • Page 23 USER MANUAL Titan Incline Lift...
  • Page 24 WARNING  This is not a dumbwaiter  This is not an amusement ride  This is not a rollercoaster  This unit is dedicated to me used only by peoples in a wheelchair  Never overload this lift  Do not use in case of emergency ...

  • Page 25: Rating Plate

    RATING PLATE...
  • Page 26 Warranty The Titan Incline Lift is warrantied for a period of one year after commissioning. This warranty covers parts and labor for any manufacturing defect or failure under a normal use of the lift. This does not cover warranty of merchantability for a specific use or need.
  • Page 27 Components PLATFORM HAND RAIL VEHICLE COMMANDS SAFETY ARM SAFETY FLAP UNDER PAN GUIDE RAILS EMERGENCY MOVING DEVICE CUT-OFF 10) TOP LANDIN CALL STATION...
  • Page 28 MANUAL MOVING OF THE PLATFORM...
  • Page 29 MAINTENANCE  Do not attempt mechanical maintenance or modification  Do not add or remove lubricant on any part of the installation  Any defect should be reported to the installer  Clean painted parts with the means of a soft soap and cloth ...
  • Page 30 FLOOR UNFOLD (Electrical) The Titan Incline Lift is available with an electric action of the floor and safety arm. Usually the floor and arm must be unfolded manually, but in some case it is too difficult for the user depending on its disability.

  • Page 31: Safety Edges

    SAFETY EDGES The Titan Incline Lift is equipped with safety edges sensors. In the event of a contact with any object along the travel, the lift should stall this motion and allow for a backward movement of the lift. This mean the user will be able to free the obstruction.
