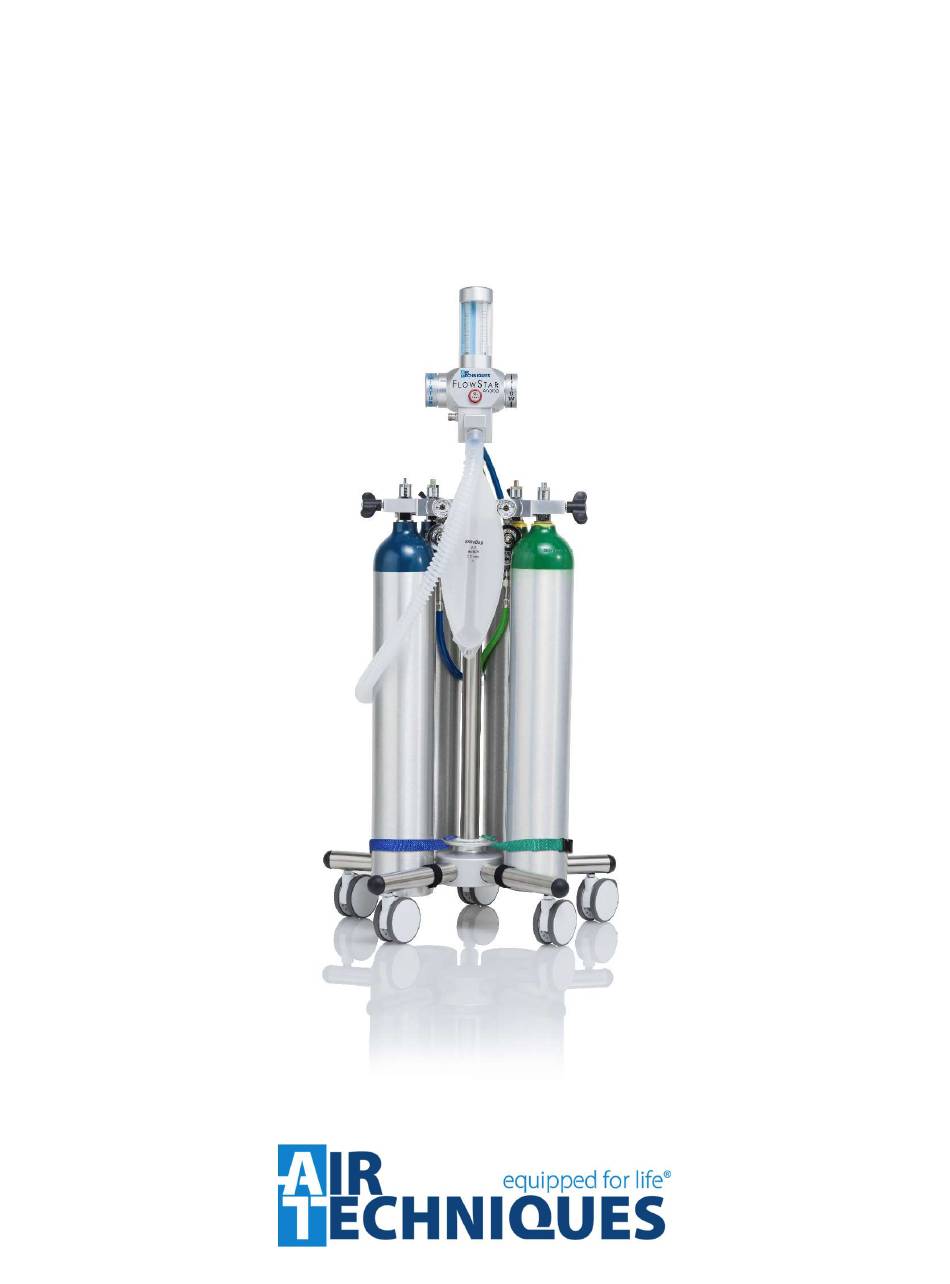

- Page 1 TAND N I T ROU S OX ID E/ OX YGE N DE LIVE R Y S Y STE M Part Number: NES4400 USER’S MANUAL...
- Page 2 ........................3 ............... 3 .......................... 3 ......................3 ........................ 4 ............... 4 ......................5 ..............7 ....................7 ................ 8 ......................9...
- Page 3 The intended use of the FlowStar E-Stand is to monitor, control, and deliver Oxygen and Nitrous Oxide gasses through a self-contained portable system. The FlowStar E-Stand is designed to work in conjunction with Air Techniques‘ FlowStar Analog flowmeter*, as well as two O and two N O E-Cylinders.
-
Page 4: Specification
The FlowStar E-Stand is comprised of the major components listed below. See Figure 1 for diagram of component locations. The general product specifications are listed in Figure 2. 1) GAS BLOCK: Aggregate of components to connect and secure up to four (two N O, two O E sized cylinders. - Page 5 2) Attach the FlowStar Analog to the stud on to the inner portion of the extendable mounting post by screwing the unit clockwise until fully seated on the attached plastic washer. (See Figure 3) Firmly connect the gas hoses to their respective DISS threads at the outlets of each pressure regulator.
- Page 6 Another method to check the tightness of the system is to monitor the pressure gauge. With the flowmeter in the off position, if the pressure drops within 1 minute, there are leaks. In this case, please contact Air Techniques or your authorized dental dealer service department. Notes and Best Practices for E-Cylinder Usage.
- Page 7 Instructions for Movement and Wheel Locking: 1) Roll unit into desired location using mobility handle. (See Figure 7) 2) To lock caster wheels, use foot or hand to toggle lock switch to the down position. 3) To unlock caster wheels, use foot or hand to toggle lock switch to the up position.
- Page 8 Caution Nitrous oxide and oxygen are work practices are important. Therefore, use non-flammable oxidizers. the Air Techniques Scavenging system to control the concentration in the patient Caution Do not attempt to repair, alter or treatment area.
- Page 9 (12) months Any item returned to our factory through an Air Techniques Authorized Dealer, will be repaired or replaced at our option at no charge provided that our inspection shall indicate it to have been defective. Dealer labor, shipping and handling charges are not covered by this warranty.
- Page 12 For over 50 years, Air Techniques has been a leading innovator and manufacturer of dental products. Our priority is ensuring complete satisfaction by manufacturing reliable products and providing excellent customer and technical support. Whether the need is digital imaging, utility room equipment or merchandise, Air Techniques can provide the solution via our network of authorized professional dealers.
