- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support PCP AIR COMPRESSOR MODEL:SS-PAC01A/SS-PAC01B We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Correct Disposal
Warning-To reduce the risk of injury, user must read instructions manual carefully. CORRECT DISPOSAL This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. - Page 4 same time during charging. Ensure that the position does not exceed 300BAR(4500psi/30MPa). Stop blowing air when it reaches 280BAR(3750psi/28MPa) ● To avoid the unit overheating, always operate the compressor in a well ventilated space. ● Do not disassemble the main unit of the Portable compressor- there are no user- serviceable parts inside.
- Page 5 · Connect the product to an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for assistance. Product parameters Model SS-PAC01A/SS-PAC01B DC 12V for car battery ; Voltage: Adapter ：AC 120V/230V for home outlet POWER...
-
Page 6: Main Operating Parts

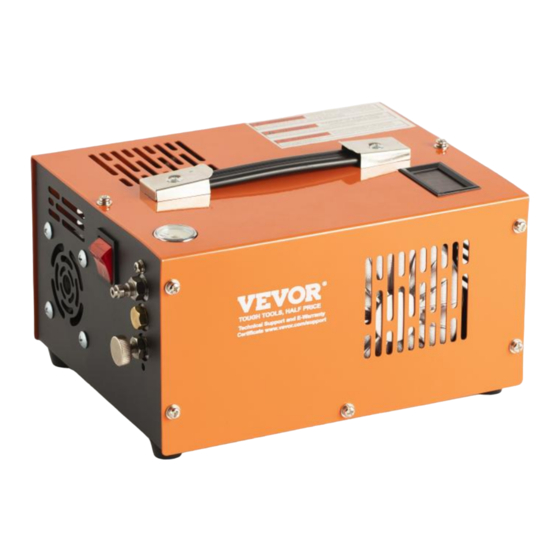

MAIN OPERATING PARTS Carry handle Pressure gauge Temperature Display Compressor switch Heat dissipation window Foster-type Protection Valve quick-fit air line outlet Air line (hose assembly) bleed screw DC(12V Vehicle power) cable socket Filter System - 5 -... -
Page 7: Operation
OPERATION 1.The air line (hose assembly) attaches to the outlet at the front of the Portable Compressor via a quick- fit,Foster-type locking connection. To secure the Foster coupling, pull back on the outer casing of the female quick-fitconnector, [fig 1] insert over the male adapter then release [fig 2]. Note: Always double-check the connection is locked in place. -
Page 8: Powering Up The Unit
3.The hose assembly attaches to the PCP airgun at the other end via a Foster-fit.An additional adapter/ connector may be required [fig4] due to the many differenttypes of filler-fittings used across PCP airgun makes (refer specific PCP manufacturer). Note: A thread-to-Foster adapter is included in the accessory pack [fig 5]. POWERING UP THE UNIT The Portable Compressor can be powered from either mains electricity (AC power) or from a 12v car battery (DC power). - Page 9 1.Connect the supplied AC power 2.Ensure the car engine is cord (above) to the right-hand side running. Connect the supplied of the main unit [fig 6] and connect DC power cable (above) to the the three-pin plug to the mains right side of the main unit [fig 7].
- Page 10 CHARGING PROCESS -STARTING UP THE FAN & COMPRESSOR With the airline (hose assembly) connected to the Portable Compressor at one end and to the PCP airgun at the other, close the air bleed screw on the front of themain unit by turning it clockwise [fig 10] .It need only be finger tight.
- Page 11 IMPORTANT: If the working temperature exceeds 80 degrees Celsius, the compressor function must be manually switched off (see page 7) and the cooling fan left running. Restart the compressor function once the Portable Compressor has cooled down. Pressure Gage:Real-time display of cylinder pressure, Turn off the power switch immediately,when the pressure gauge is about to reach...
- Page 12 DISCONNECTING THE AIR LINE (HOSE ASSEMBLY) After the charging cycle has been completed and/or the compressor has been manually switched off, the air line (hose assembly) will still contain high pressure air.This residual air MUST be released ( 'bled off) before the hose assembly can be safely disconnected from the PCP airgun and/or main unit.
- Page 13 THE FILTER The Portable Compressor comes with an integral The filter system on its airline as standard [fig 17]. This system uses a desiccant medium to remove moisture content from the compressed air, thereby reducing the risk of corrosion occurring inside the PCP airgun. It also features filters to avoid dirt ingress.
- Page 14 Routinely check the condition of the O-rings on all connection assemblies and replace if they look worn, cracked or damaged. O-rings are likely to be the cause of most charging issues, such as air leaks. - 13 -...
- Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support Made In China...
