Technical Support and E-Warranty Certificate www.vevor.com/support

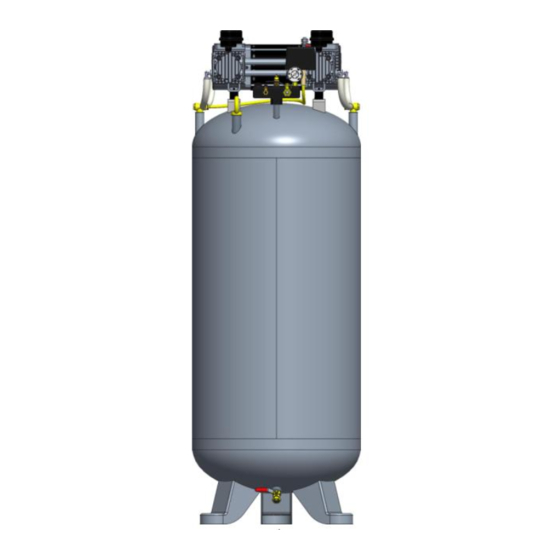

80 Gallon Air Compressor
User Manual
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the
major top brands and doses not necessarily mean to cover all categories of tools offered by
us. You are kindly reminded to verify carefully when you are placing an order with us if you
are actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR FB3500-10A300
Summary of Contents for VEVOR FB3500-10A300
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support 80 Gallon Air Compressor User Manual We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
-
Page 3: Technical Specifications
Technical Specifications Model N. W. G. W. Carton Size 348.3LBS 401.2LBS 23.8*23.8*65.6 inch FB3500-10A300 (158Kg) (182Kg) (605*605*1665 mm) Voltage Capacity Volume Flow 80Gallon 15.5 SCFM ± AC 220V/60Hz (3.78kW±10% ) (303L) 5%@ 90 PSI SAFETY Note / Remark. Caution / Warning. -
Page 4: Use Precautions
Use precautions ELECTRICAL SAFETY-TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING: ● The power supply environment of this product must have a good grounding device, must use a three-core plug, and with a well-grounded three-hole socket to ensure good grounding of this product. ●... -
Page 5: Packing List
General Assembly drawings Packing list... -
Page 6: Installation
Installation STEP1: To prevent collision and collapse of the machine, fix the machine to the ground with foot bolts before use. STEP2: Install the four air filters at the air compressor intake ports STEP3: Disassemble the screws fixing the cover shell of the air pressure switch, remove the cover shell, connect the external cable to the air pressure switch, and then... -
Page 7: Gas Circuit
Electrical principle chart Description: The motor is three-phase 220V/60Hz, the motor cable U1\V1\W1 is connected to the motor terminal on the air pressure switch, and the external power supply U2\V2\W2 is connected to the gas . The pressure switch is connected to the external power supply end. The pressure switch controls the power supply and the power failure of the motor through the set pressure induction. -
Page 8: Maintenance & Service
MAINTENANCE/ Service 1) The electric oil-free air compressor is oil-free lubrication, and it is strictly prohibited to fill any lubricating oil. 2) The machine should be used in the process of drainage once every one to two days, cleaning the noise filter. 3) If the electric oil-free air compressor stops suddenly and cannot be restarted in a short time (the voltage is normal) during the working process, it may be because the motor of the air compressor head works for a long time is... - Page 9 1 .Check the voltage, 1 .voltage is too low, Overload protector not less than 10% of 2 .ventilation is bad, the repeatedly cuts off the rated voltage temperature is too high, power 2. Put the air 3. three-phase motor compressor in a well- ...
- Page 10 The upper drainage valve does not line clogging Check and exclude discharge water 1. Fastener loose or damaged 1. Check and replace 2. piston ring with cylinder 2. Replace new excessive wear products abnormal sound 3.foreign matter into the air 3.
-
Page 11: Scope Of Warranty
OUR SERVICE TEAM PROMISES TO REPLY TO YOUR MESSAGE WITHIN 24H. Scope of Warranty 1. We guarantee that VEVOR products are produced in accordance with iso9001 Quality Management procedures and are free of manufacturing defects for the period of warranty. - Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support Made In China...
