T-Lock Oversized Insert Instructions
Items Needed for Installing T-Lock Oversized Platen Insert:
TLOCK OVERSIZED PLATEN INSERT - #TLOCKOSI

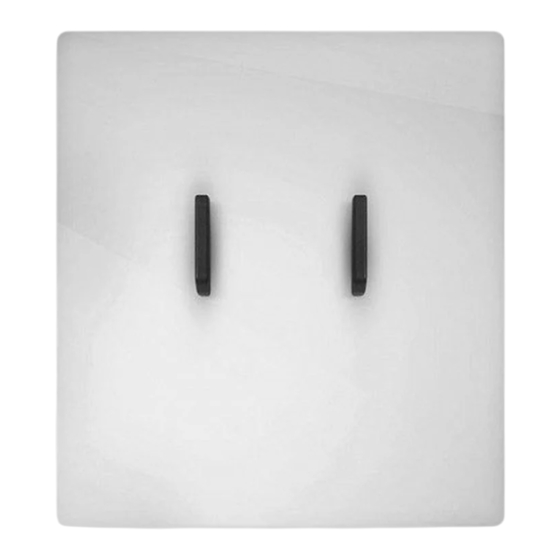

T-Lock Oversized Platen Insert.
Instructions for installing T-Lock Oversized Platen Insert:
Below are instructions for installing the Oversized Platen Insert on your T-Lock Base.
1
Step 1:
Remove the Adult Platen by loosening the Locking Lever and lifting the
platen straight up.
3
Step 3:
Install the T-Lock Oversized Insert so T-Lock brackets slide into the slots in
T-Lock Base.
BrotherDTG.com/Support • Visit www.BrotherDTG.com/Guides for additional platen instructions
T-Lock Base - #TLOCKBASE
T-Lock Base needed for using Inserts. T-Lock
Base is NOT included with Inserts.
2
Step 2:
Insert the T-Lock Base into the platen stem of the Brother DTG printer.
4
Step 4:
Secure the Platen Insert by rotating the center piece in the T-Lock
brackets.
