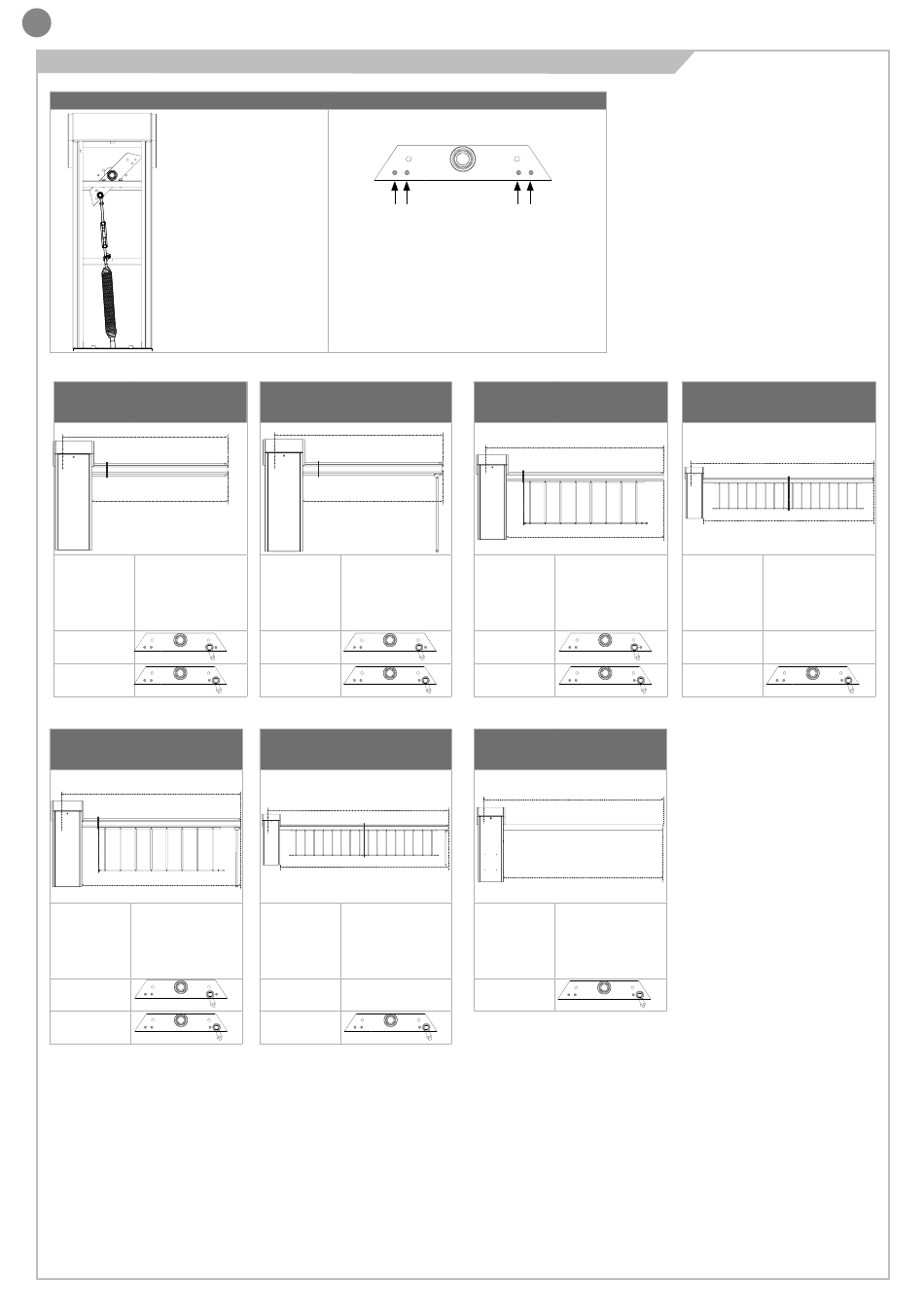

5.7 - ALT4 accessories and bar weight balancing
example of spring positioning
and type:
2 = HOLE NUMBER
BAR + RUBBER PROFILE
L= LUNGHEZZA ASTA L=BAR LENGTH
PL=LARGHEZZA PASSAGGIO (L-300 mm)
PL=PASSAGE WIDTH (L-230 mm)
L = BAR
LENGTH POSITION
(mm)
3000
4000
BAR + KIT FENCE (1x) +
MOBILE SUPPORT
L= LUNGHEZZA ASTA
L=BAR LENGTH
PL
PL
L = BAR
LENGTH POSITION
(mm)
3000
4000
N.B. The LED strips are always included in the balance system
