Kohler STANCE 76696T-B4 Installation Instructions

INSTALLATION INSTRUCTIONS
76696T-B4
3 Hole Deck Mount Bath Faucet With Handshower(Mini)
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. If possible, install this faucet before installing the bath.
5. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
6. The highest working pressure for handshower & showerhead is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar),
a pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handshower,
showerhead and shower arm away from heater, or it may become damaged and cause injury to the user.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water. Water flows out from
spout when diverter is in the normal position and it's diverted to handshower when the diverter knob is lifted.

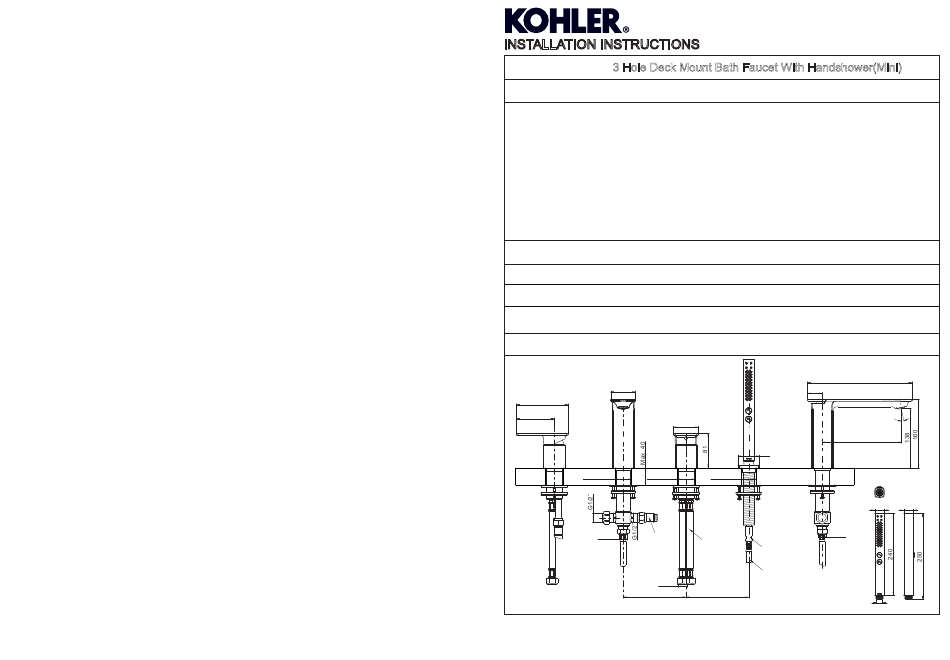

ROUGH-IN DIMENSIONS
58
120
88
58
KOHLER
Ø38~Ø40 Ø39~Ø42
G1/2˝ 415
G1/2˝
Min. 146
1338590-2A-B
STANCE
243
34
184
50
Ø33~Ø40
Handshower
28
G1/2˝
515
2000
600
Min. 146
G1/2˝
12°
28
1
