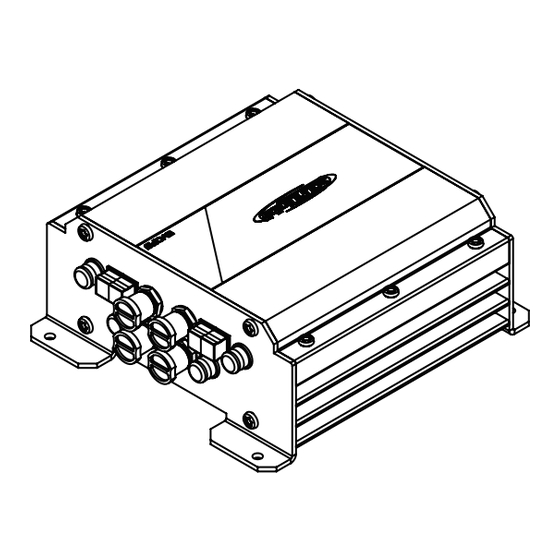

Soundigital EVOPS 2400.1 Owner's Manual
Hide thumbs Also See for EVOPS 2400.1:

Advertisement

Quick Links

OWNER'S MANUAL
2400.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOPS 2400.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soundigital EVOPS 2400.1

  • Page 1 OWNER’S MANUAL 2400.1...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ................................3 Package contents .............................. 3 Safety instructions.............................. 4 Technologies ® DTM ..............................5 Ultra compact PCB......................... 5 Robust construction....................... 5 I-Power Supply........................... 5 ® VAS ..............................6 Marinization with protection index IP64 ............... 6 Assembling and Disassembling the Plastic Seals ................. 7 Panels description Audio inputs and controls....................
  • Page 3: Introduction

    INTRODUCTION Dear Consumer, Congratulations, you have just acquired a SounDigital product of the highest technology and quality, so we thank you for your trust. SounDigital products are made with raw materials of the highest quality standards, and the most modern processes, equipment and technology are used in their production.
  • Page 4: Safety Instructions

    Wear gloves, safety glasses firmly. Avoid fixing to metallic and all necessary PPE during parts of the vehicle, as this the installation of SounDigital procedure may cause ground amplifiers. looping (noise); THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING THESE INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE EQUIPMENT.
  • Page 5: Technologies

    ULTRA COMPACT PCB An intelligent layout, with great use of the PCB area and the use of modern components with reduced structure guarantee SounDigital products a compact design, at the same time robust and with excellent thermal efficiency. ROBUST CONSTRUCTION...
  • Page 6: Vas

    TECHNOLOGIES VIBRATION ABSORPTION LOW SOUND HIGH SOUND ® WAVE ENERGY SYSTEM - VAS WAVE ENERGY ® Our VAS Technology reduces all impact caused by vibration on the electronic circuit board. This can include road vibration and even ABSORPTION vibration caused by sound waves, DEVICE increasing the reliability of our amplifiers.
  • Page 7: Assembling And Disassembling The Plastic Seals

    ASSEMBLING AND DISASSEMBLING THE PLASTIC SEALS DISASSEMBLING THE PLASTICS SEALS 1. Squeeze the assembled Flexible Plastics Seals; 2. Pull out the Plastics Seals. *Merely illustrative images. ASSEMBLING THE PLASTICS SEALS Plastic Seal Potentiometer Plastic Seal Slide switch Plastic Seal 1. Hold the disassebled Flexible Plastics Seals and fit them in their specific housing; 2.
  • Page 8: Panels Description

    PANELS DESCRIPTION Audio inputs and controls 9 10 Left Channel Audio inputs — RCA connectors Right Channel Variable Gain Control Low pass filter ON/OFF switch key Variable "LOW" filter control (50Hz ~ 500Hz) Variable "SUBSONIC" filter control (5Hz ~ 40Hz) Variable "BASS BOOST"...
  • Page 9: Power Inputs And Audio Outputs

    PANELS DESCRIPTION Power inputs and audio outputs 12 13 Minimum speaker load allowed (impedance) Negative speaker connector (-) Speakers output connectors Positive speaker connector (+) Positive power supply connector (+12VDC) Remote power supply connector (REM) Negative power supply connector (GND)
  • Page 10: Installation Sequence

    INSTALLATION SEQUENCE BEFORE PROCEEDING WITH THE INSTALLATION, UNPLUG THE NEGATIVE TERMINAL FROM ALL OF THE BATTERIES, TO AVOID FIRE, DAMAGE TO THE AMPLIFIER AND THE USER HIMSELF. Warning! Ø Mount the amplifier in such a way you have access to the connectors; Ø...
  • Page 11: Electrical Dimensioning

    ELECTRICAL DIMENSIONING AND AUDIO INPUTS ELECTRICAL DIMENSIONING For proper operation of your SounDigital amplifier, you need the proper dimensioning of the electrical system and the cables used. The table below shows the minimum section of GND cables, +12VDC cables and speaker output cables according to the power generated by the amplifier.
  • Page 12: Bass Boost And Crossover Set Up

    BASS BOOST AND CROSSOVER SET UP Using Bass Boost The Amplifier Bass Boost setting enables the user to boost the sound intensity at low frequencies of the sound system, where boost intensity can be adjusted. This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter, with an intensity boost adjustment from 0 to +12dB (16 times), and a central frequency adjustment of the filter in 50Hz, making it versatile for several types of sound systems.
  • Page 13: Wiring Diagram

    WIRING DIAGRAM All RCA inputs must be connected for the amplifier to work properly. "AUDIO on page 11. INPUTS" In case of connections with more than one battery, see the installation diagram on page 15. Model Minimum impedance 2400.1 EVOPS 4Ω 4Ω...
  • Page 14: Procedure For Setting The Gain

    GAIN SETTING GAIN SETTING Necessary equipament: Ø On the audio player, set the fader Ø Digital AC voltmeter; control to center position; Ø Media with sine wave test tone 60Hz Ø Set the "LP" switch to "OFF"; recorded at 0db; Ø...
  • Page 15: Battery Connection Diagram

    BATTERY CONNECTION DIAGRAM When necessary the association of one or more battery banks to supply the necessary current to the amplifier, it is recommended to use batteries of the same brand, model, and if possible the same manufacturing lot so that the system has the maximum performance.
  • Page 16: Parameters

    The values presented are based on measurements performed in Updates of information made in this document will always be SounDigital's laboratories. All the equipment used in the assays, tests, published and made available for consumer consultation, free of measurements and gauging of the technical parameters of SounDigital charge, on the brand's websites.
