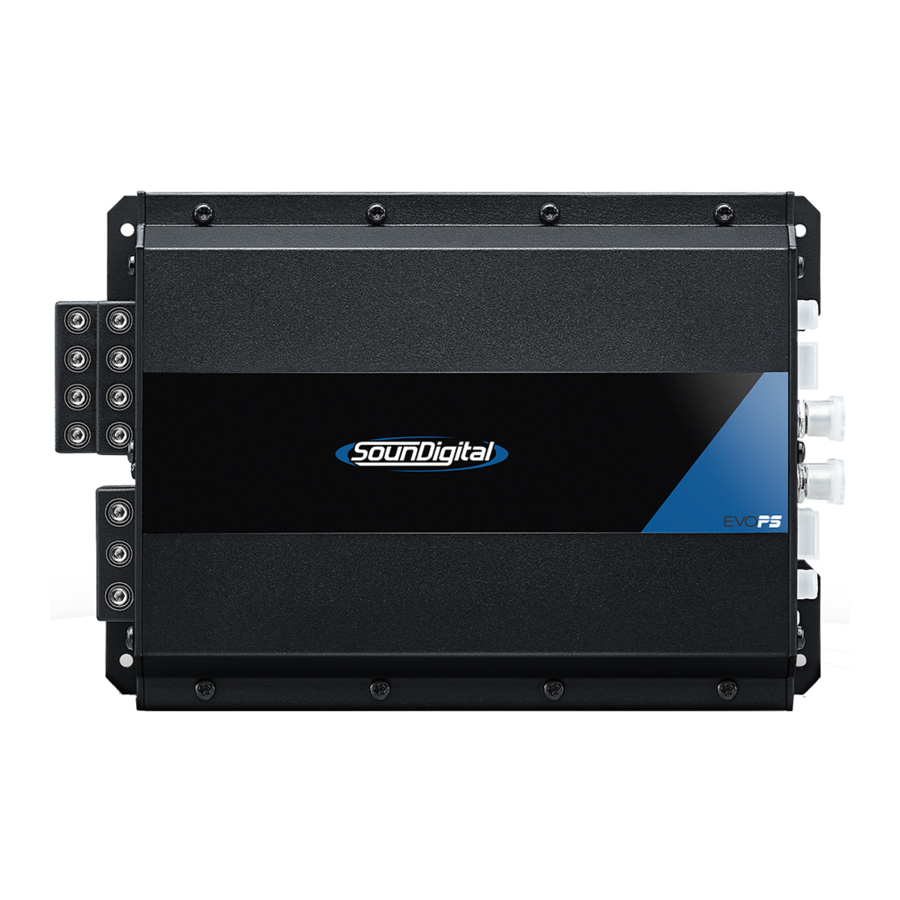

Summary of Contents for Soundigital EVOPS POWER SPORTS 2000.4
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ........................Features ........................Package contents ..................... Safety instructions ....................Technologies DTM ......................Ultra Compact PCB ................. Robust Construction ................ Vibration Absorption Device ............Low Battery consumption .............. Marinization with protection index IP64 ........Assembling and Disassembling the Plastic Seals ........Panels description Audio inputs and controls............. -
Page 3: Introduction
On this manual you will learn about the product, its features and characteristics, in order to obtain the best result and to be able to enjoy your music with SounDigital quality and power. -
Page 4: Safety Instructions
Make sure the cables are properly secured throughout the installation; Wear gloves, safety glasses and and all necessary PPE during the installation of SounDigital amplifiers. THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE EQUIPMENT. -
Page 5: Technologies
TECHNOLOGIES DYNAMIC THERMAL MENAGEMENT - DTM ALUMINIUM HEATSINK CONDUCTIVE COOPER LAYER ELECTRONIC COMPONENT The DTM* is a dynamic thermal management system which always maintains a high efficiency of the amplifier by accelerating the thermal exchange of electronic components with the heatsink * Patent. -
Page 6: Vibration Absorption Device
TECHNOLOGIES VIBRATION ABSORPTION DEVICE SounDigital added a new device to the EVOPS products which act like shock absorbers reducing the impact of vibration on the eletronic circuit board, thereby increasing the life and reliability of the amplifiers. LOW SOUND HIGH SOUND... -
Page 7: Assembling And Disassembling The Plastic Seals
ASSEMBLING AND DISASSEMBLING THE PLASTIC SEALS DISASSEMBLING THE PLASTICS SEALS 1. Squeeze the assembled Flexible Plastics Seals 2. Pull out the Plastics Seals ASSEMBLING THE PLASTICS SEALS Plastic Seal Potentiometer Plastic Seal Slide switch Plastic Seal 1. Hold the disassembled Flexible Plastics Seals and fit them in their specific housing; 2. -
Page 8: Panels Description
PANELS DESCRIPTION CH1/CH2 Variable crossover control - 45Hz to 850Hz CH3/CH4 CH1/CH2 Crossover Switch Low Pass - Full - High Pass CH3/CH4 Audio input - RCA connector CH1/CH2 Variable Gain Control CH3/CH4 "Power ON" LED indicator (Blue) -
Page 9: Power Inputs And Audio Outputs
PANELS DESCRIPTION Negative power supply connector (GND) Remote power supply connector (REM) Positive power supply connector (+12VDC) Positive speaker connector Negative speaker connector Negative speaker connector Positive speaker connector Negative speaker connector Positive speaker connector Positive speaker connector Negative speaker connector... -
Page 10: Electrical Dimensioning
ELECTRICAL DIMENSIONING AND AUDIO INPUTS ELECTRICAL DIMENSIONING For proper operation of your SounDigital amplifier, you need the proper dimensioning of the electrical system and the cables used. The table below shows the minimum section of GND cables, +12VDC cables and speaker output cables according to the power generated by the amplifier. -
Page 11: Installation Sequence
INSTALLATION SEQUENCE BEFORE PROCEEDING WITH THE INSTALLATION, UNPLUG THE NEGATIVE TERMINAL FROM ALL OF THE BATTERIES, TO AVOID FIRE, DAMAGE TO Warning! THE AMPLIFIER AND THE USER HIMSELF Mount the amplifier in such a way you have access to the connectors; Install the power cables in the vehicle/vessel properly, starting from the battery to the fuse holder or circuit breaker, use the cable with the appropriate size. -
Page 12: Wiring Diagram
WIRING DIAGRAM 4 CHANNEL WIRING DIAGRAM See "Audio Inputs" on page 8 * Check the minimum speaker impedance at specs table 3 CHANNEL WIRING DIAGRAM See "Audio Inputs" on page 8... -
Page 13: Two Channels Wiring Diagram
WIRING DIAGRAM / GAIN SETING 2 CHANNEL WIRING DIAGRAM * Check the minimum speaker impedance at specs table GAIN SETTING Set the crossover selector switch in "F" Necessary equipament: Use a 60Hz sine wave Digital AC voltmeter; Connect the AC voltmeter to the Media with sine wave test tone 60Hz speaker output connectors of the recorded at 0db;... -
Page 14: Crossovers Set Up
CROSSOVER SET UP "F" All the frequencies are reproduced; "LP " Set in the variable control on Low Pass Function; "HP " Set in the variable control on High Pass Function. Selector switch to "F" position (Full Range): All the frequencies are reproduced. -3dB 22kHz Selector switch to "HP"... -
Page 15: Technical Specs
TECHNICAL SPECS 2000.4 2Ω 2000.4 4Ω PARAMETERS Power RMS Bridge @ 2Ω* 2 X 1000W Power RMS Bridge @ 4Ω* 2 X 660W 2 x 1000W Power RMS @ 1Ω* 4 X 500W Power RMS @ 2Ω* 4 X 330W 4 X 500W Power RMS @ 4Ω* 4 X 217W...
