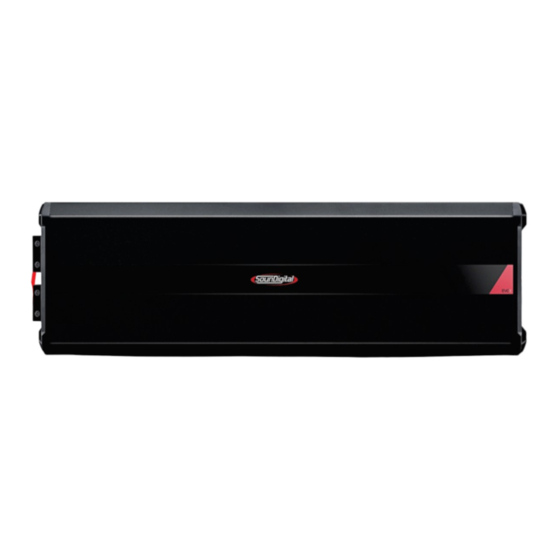

Soundigital 20000.1EVOX Owner's Manual

Soundigital 20000.1EVOX Owner's Manual

Hide thumbs Also See for 20000.1EVOX:

Advertisement

Quick Links

OWNER´S MANUAL
OWNER´S MANUAL
20000.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20000.1EVOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Soundigital 20000.1EVOX

  • Page 1 OWNER´S MANUAL OWNER´S MANUAL 20000.1...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ..............................3 Package contents ............................3 Safety instructions ............................. 4 Technologies Low Bass Correction ...................... 5 Ultra Compact PCB......................5 Vibration Absorption Device ..................6 I-Power Supply........................6 Assembling and Disassembling the plastic cover ..............7 Panels description Audio inputs, outputs and controls ................
  • Page 3: Introduction

    IMPORTANT INFORMATIONS On this manual you will learn about the product, its features and characteristics, in order to obtain the best result and to be able to enjoy your music with SounDigital quality and power. To better understand and take advantage of all the functions of the product and use it safely, read this manual carefully and if you have any questions, consult our support by email: info@soundigitalusa.com.
  • Page 4: Safety Instructions

    Make sure the cables are properly secured throughout the installation; Wear gloves, safety glasses and and all necessary PPE during the installation of SounDigital amplifiers. THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE EQUIPMENT.
  • Page 5: Technologies

    ULTRA COMPACT PCB An intelligent layout, with great use of the PCB area and the use of modern components with reduced structure guarantee SounDigital products a compact design, at the same time robust and with excellent thermal efficiency. ROBUST CONSTRUCTION...
  • Page 6: Vibration Absorption Device

    I-POWER SUPPLY SounDigital amplifiers are known for their low consumption of battery, and this feature was i m p r o v e d o n t h e E V O X L i n e . T h e n e w...
  • Page 7: Assembling And Disassembling The Plastic Cover

    ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER The plastic covers have the function of finishing and hiding the amplifier fixing screws. To disassembling and assembling them, follow the instructions below. DISASSEMBLING OF THE PLASTIC COVER 1. Carefully pull out the top of plastic cover to release the upside latches, as shown in the picture 1. 2.
  • Page 8: Panels Description

    PANELS DESCRIPTION 10 11 Input Audio RCA connectors Output Variable Bass Boost Level Control (0dB ~ +12dB) Variable Bass Boost Frequency Control (35Hz ~ 55Hz) Variable Low Pass filter control (50Hz ~ 500Hz) Variable Subsonic filter control (3Hz ~ 30Hz) Variable Gain control Remote level control connector Blue...
  • Page 9: Power Inputs

    PANELS DESCRIPTION Negative power supply connector (GND) Negative power supply connector (GND) Remote power supply connector (REM) Positive power supply connector (+12VDC) Positive power supply connector (+12VDC) Positive power supply connector (+12VDC) Positive power supply connector (+12VDC) Remote power supply connector (REM) Negative power supply connector (GND) Negative power supply connector (GND)
  • Page 10: Electrical Dimensioning

    ELECTRICAL DIMENSIONING AND AUDIO INPUTS ELECTRICAL DIMENSIONING For proper operation of your SounDigital amplifier, you need the proper dimensioning of the electrical system and the cables used. The table below shows the minimum section of GND cables, +12VDC cables and speaker output cables according to the power generated by the amplifier.
  • Page 11: Installation Sequence

    INSTALLATION SEQUENCE Warning! Mount the amplifier in such a way you have access to the connectors; Ø Install the power cables in the vehicle properly, starting from the battery to the fuse Ø holder or circuit breaker, use the cable with the appropriate size. Make all connections, install fuse holders or circuit breakers, but without placing the fuses or with the circuit breakers in the "OFF"...
  • Page 12: Gain Setting

    GAIN SETING GAIN SETTING Necessary equipament: Ø On the CD player, set the fader Ø Digital AC voltmeter; control to center position; Ø Media with sine wave test tone Ø Set the variable "LOW" crossover in 60Hz recorded at 0dB; 500Hz and the "HIGH"...
  • Page 13: Bass Boost Set Up

    BASS BOOST AND CROSSOVER SET UP Using Bass Boost The Amplifier Bass Boost setting enables the user to boost the sound intensity at low frequencies of the sound system, where boost intensity can be adjusted, as well as the frequency of the region to be boosted, as indicated in the chart . This is a semi-parametric equalizer type circuit with "Q"...
  • Page 14: Wiring Diagram

    WIRING DIAGRAM Unplug the negative (-) terminal of the battery before proceeding with any eletrical installation in the vehicle to avoid fire starts, wounds or damage to the amplifier. POWER CONNECTIONS FUSES +12V REMOTE INPUT CONNECTIONS +12V MAIN UNIT REMOTE OUTPUT AUDIO INPUT AND OUTPUT CONNECTIONS POWER CLIP...
  • Page 15: Technical Specs

    TECHNICAL SPECS 20000.1 1Ω PARAMETERS RMS Power @ 4Ω** 1 x 8712W RMS Power @ 2Ω** 1 x 13200W RMS Power @ 1Ω** 1 x 20000W Frequency Response (-3dB) 5Hz ~ 500Hz Low Pass Filter (24dB/oct) 50Hz ~ 500Hz Subsonic Filter (12dB/oct) 3Hz ~ 30Hz Operating Voltage 8V ~ 16V...
