Summary of Contents for Soundigital EVOX2 1600.1

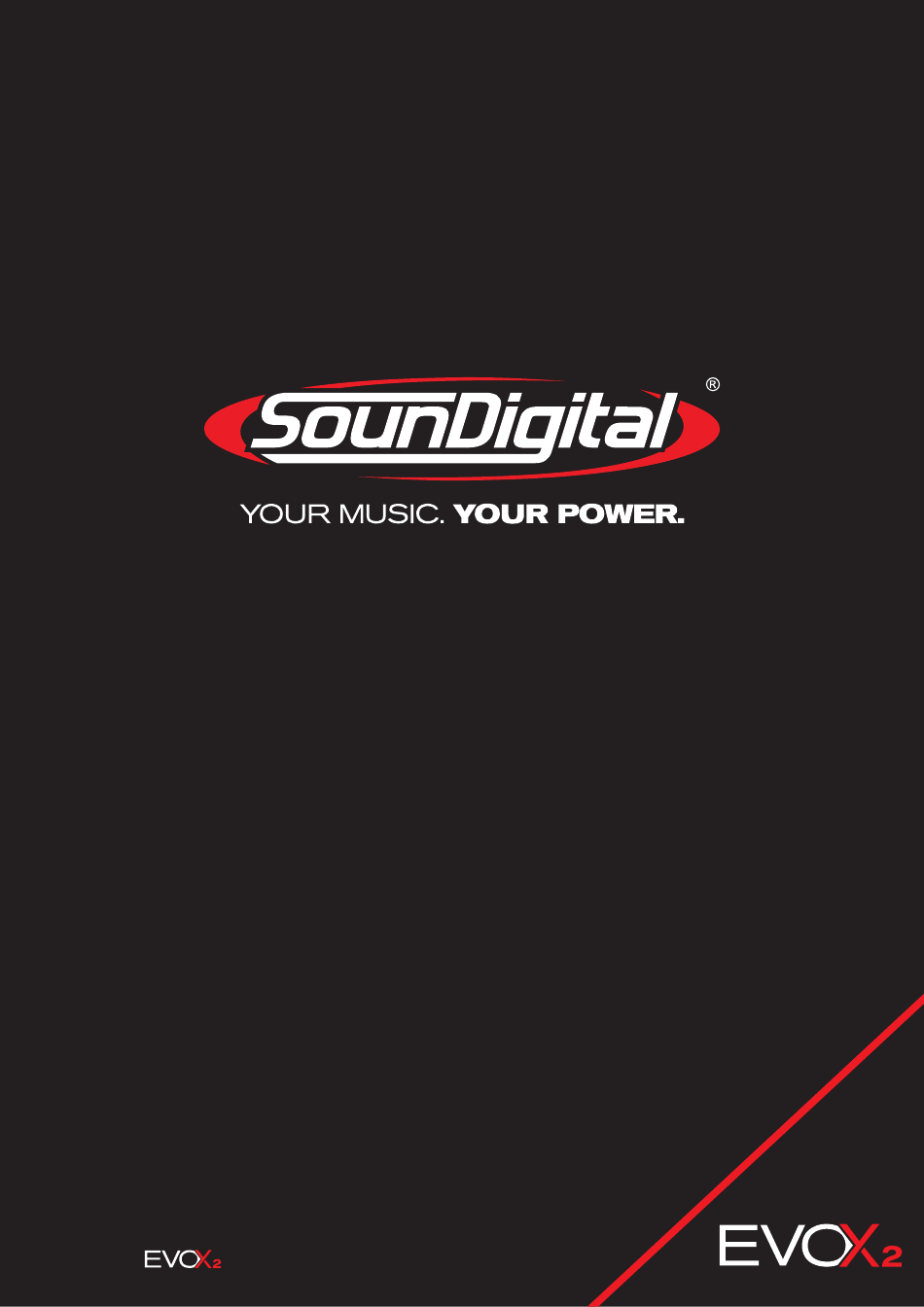

  • Page 1 OWNER´S MANUAL 1600.1...
  • Page 2: Table Of Contents

    Introduction ................................3 Package contents .............................. 3 Safety instructions.............................. 4 Technologies ® DTM ..............................5 I-Power Supply ........................... 5 Vibration Absorption System .................... 6 Reduced size ..........................6 Assembling and disassembling the plastic cover ................7 Panels description Audio inputs and controls....................8 Power inputs and audio outputs ..................
  • Page 3: Introduction

    INTRODUCTION Dear Consumer, Congratulations, you have just acquired a SounDigital product of the highest technology and quality, so we thank you for your trust. SounDigital products are made with raw materials of the highest quality standards, and the most modern processes, equipment and technology are used in their production.
  • Page 4: Safety Instructions

    Wear gloves, safety glasses firmly. Avoid fixing to metallic and all necessary PPE during parts of the vehicle, as this the installation of SounDigital procedure may cause ground amplifiers. looping (noise); THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING THESE INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE EQUIPMENT.
  • Page 5: Technologies

    I-POWER SUPPLY SounDigital amplifiers are known for their low consumption of battery, and this feature was i m p r o v e d o n t h e E VOX 2 L i n e . T h e n e w...
  • Page 6: Vibration Absorption System

    TECHNOLOGIES VIBRATION ABSORPTION ® SYSTEM - VAS ® Technology reduces all impact caused by vibration on the electronic circuit board. This can include road vibration and even vibration caused by sound waves, increasing the reliability of our amplifiers. 7.1" REDUCED SIZE technology used amplifiers...
  • Page 7: Assembling And Disassembling The Plastic Cover

    ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER The plastic covers are used to finish and hid the amplifier ’s fixing screws. To disassembl and assembl them, follow the instructions below. DISASSEMBLING OF THE PLASTIC COVER 1. Carefully pull out the top of the plastic cover to release the upside latches, as shown in picture 1. 2.
  • Page 8: Panels Description

    PANELS DESCRIPTION 11 10 Blue "POWER ON" LED indicator Yellow "CLIP" LED indicator "PROTECTION" LED indicator Remote level control connector Variable Bass Boost Control 50Hz (0dB ~ +12dB) Variable Subsonic filter control (5Hz ~ 40Hz) Variable Low Pass filter control (50Hz ~ 500Hz) Low Pass filter ON/OFF switch key Variable Gain control Right Channel...
  • Page 9: Power Inputs And Audio Outputs

    PANELS DESCRIPTION Negative power supply connector (GND) Remote power supply connector (REM) Positive power supply connector (+12VDC) Positive speaker connector (+) Speakers Output Connectors Negative speaker connector (-) Minimum speaker load allowed (impedance)
  • Page 10: Installation Sequence

    INSTALLATION SEQUENCE BEFORE PROCEEDING WITH THE INSTALLATION, UNPLUG THE NEGATIVE TERMINAL FROM ALL OF THE BATTERIES, TO AVOID FIRE, DAMAGE TO THE AMPLIFIER AND THE USER HIMSELF. Warning! Ø Fix the amplifier so that the connectors can be easily accessed; Ø...
  • Page 11: Electrical Dimensioning

    ELECTRICAL DIMENSIONING AND AUDIO INPUTS ELECTRICAL DIMENSIONING For proper operation of your SounDigital amplifier, you need the proper dimensioning of the electrical system and the cables used. The table below shows the minimum section of GND cables, +12VDC cables and speaker output cables according to the power generated by the amplifier.
  • Page 12: Sd Rlc And Gain Setting

    SD RLC / GAIN SETTING EXTERNAL LEVEL CONTROL - SD RLC (*Not included) The SD RLC is an easy-to-install external level control accessory that allows you to tune the level of SOUNDIGITAL amplifiers that have remote level control. POWER CLIP...
  • Page 13: Bass Boost Set Up

    BASS BOOST AND CROSSOVER SET UP Using Bass Boost The Amplifier Bass Boost setting enables the user to boost the sound intensity at low frequencies of the sound system, where boost intensity can be adjusted. This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter, with an intensity boost adjustment from 0 to +12dB (16 times), and a central frequency adjustment of the filter in 50Hz, making it versatile for several types of sound systems.
  • Page 14: Wiring Diagram

    WIRING DIAGRAM 1 CHANNEL WIRING DIAGRAM All RCA inputs must be connected for the amplifier to work properly. If the signal source is a mono type, use a "Y" cable at the input. POWER CLIP LEVEL SD REMOTE LEVEL CONTROL* *Sold separately In case of connections with more than one battery, see...
  • Page 15: Battery Connection Diagram

    BATTERY CONNECTION DIAGRAM When necessary the association of one or more battery banks to supply the necessary current to the amplifier, it is recommended to use batteries of the same brand, model, and if possible the same manufacturing lot so that the system has the maximum performance.
  • Page 16: Parameters

    The values presented are based on measurements performed in Updates of information made in this document will always be SounDigital's laboratories. All the equipment used in the assays, tests, published and made available for consumer consultation, free of measurements and gauging of the technical parameters of SounDigital charge, on the brand's websites.
