RED115X
Safety instructions
The device must only be installed by a qualified
electrician in accordance with the installation
standards in force in your country.
Do not install outside of the building.
1
Secondary 2-wire line coupler
z
Overview
5 2
RED115X
6 1

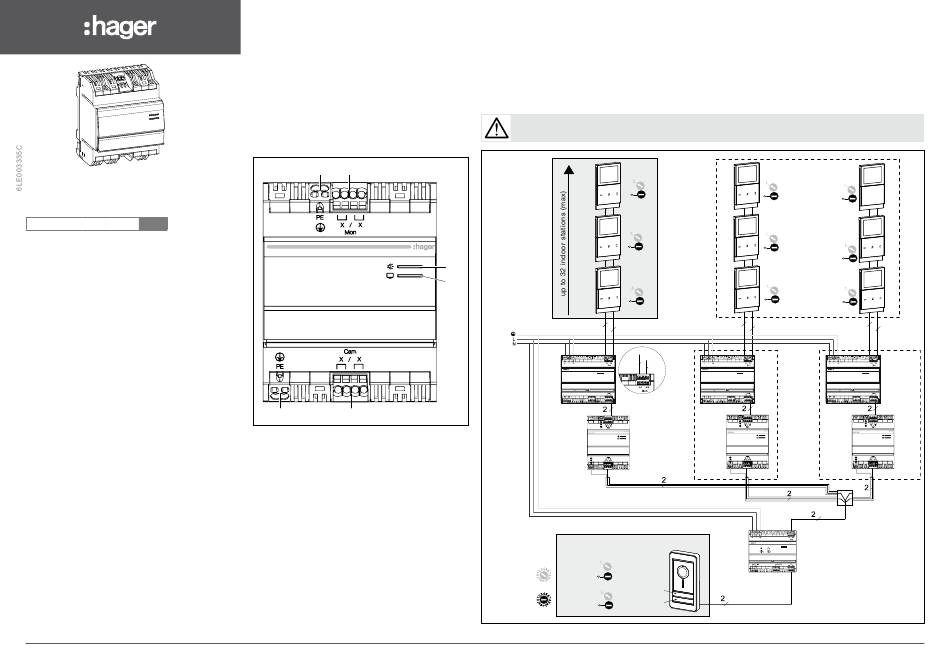

Figure 1: layout and design
1 2-wire bus input from outdoor (street) video
plate
2 Terminal for connection of one or more indoor
video station(s)
3 Audio coupling LED (green)
4 Video coupling LED (red)
56 Ground connection terminal
Operation
The device makes it possible:
• To connect 32 indoor stations within a single
installation,
• To call 3 indoor video stations simultaneously from
a single button on the outdoor (street) plate.
Typical uses
• Coupler for audio and/or video installations.
• DIN rail mounting in accordance with DIN Standard
EN 60715.
• Not compatible with intercom systems of other
manufacturers.
• Suitable only for indoor installation with no
moisture.
In the same installation, you don't have to connect a RED111X and a REK350X
3
4
2
2
230 V~
shielding
outdoor video plate
button 1:
intercom
address
group
button 2:
address
Figure 2: operation
Product features
• Overload protection.
• All connections are fitted with spring terminals.
• Installations can use a maximum of 8 couplers in
parallel with 32 indoor stations per line, making a
total of 256 video indoor stations.
indoor video
stations
controlled
simultaneously
from one
button on the
outdoor video
plate
2
2
s/s
x/x
2
2
shielding
button 2
button 1
2
2
coupler
and
power
supply
REK350
shielding
4 outputs
video
distributor
