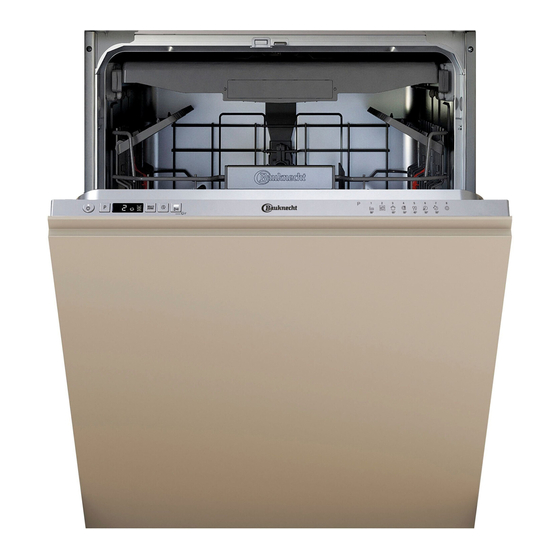

Bauknecht OBIC Ecosilent 8650 Quick Manual

Quick Guide
THANK YOU FOR BUYING A BAUKNECHT PRODUCT.
In order to receive a more complete assistance, please
register your appliance on: www.bauknecht.eu/register
Before using the appliance carefully read the Safety Instruction.
CONTROL PANEL
1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet indicator light
FIRST TIME USE
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and on
the machine's functional components.
• It is mandatory that the salt reservoir never be empty.
• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher and must be
filled when the SALT REFILL indicator light
1. Remove the lower rack and unscrew the reservoir cap
(anticlockwise).
2. Only the first time you do this: fill the salt reservoir
with water.
3. Position the funnel (see figure) and fill the salt reservoir
right up to its edge (approximately 1 kg); it is not unu-
sual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.
Make sure the cap is screwed on tightly, so that no detergent can get into
the container during the wash program (this could damage the water
softener beyond repair).
Whenever you need to add salt, it is mandatory to complete the proce-
dure before the beginning of the washing cycle to avoid corrosion.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse
aid dispenser A should be filled when the RINSE
D
AID REFILL indicator light
C
el is lit. NEVER pour the rinse aid directly into
the appliance tub.
A
PROGRAMS TABLE
Pro-
gram
Eco 50°- Program is suitable to clean normally soiled tableware,
that for this use, it is the most efficient programme in terms of its
1.
combined energy and water consumption, and that it is used to
assess compliance with the EU Ecodesign legislation.
Sensor 50°-60° - For normally soiled dishes with dried food re-
2.
sidues. Senses the level of soiling on the dishes and adjusts the
program accordingly.
Intensive 65° - Program recommended for heavily soiled croc-
3.
kery, especially suitable for pans and saucepans.
Fast Wash&Dry 50° - Normally soiled crockery. Everyday cycle,
4. that ensures optimal cleaning and drying performance in shor-
ter time.
Glass 45° - Program for delicate items, which are more sensitive
5.
to high temperatures, for example glasses and cups.
Rapid 30' 50° - Program to be used for half load of lightly-soiled
6.
dishes with no dried food residues. Without drying.
Silent 50° - Suitable for night-time operation of the appliance.
7.
With the lowest noise.
Prewash - Use to refresh crockery planned to be washed later.
8.
No detergent to be used with this program.
ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.
Note for Test Laboratories: For information on comparative EN testing conditions, please send an email to the following address: dw_test_support@whirlpool.com
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and
pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor
calibration. The sensor calibration can increase program duration up to 20 min.
7. Display
8. Multizone indicator lights
9. Multizone button
10. Delay button
11. START/Pause button with indicator
light / Tablet (Tab)
in the control panel is lit.
in the control pan-
Programs description
PLEASE SCAN THE QR CODE ON YOUR
APPLIANCE IN ORDER TO HAVE MORE
DETAILED INFORMATION
1 2
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device C. Introduce the
detergent into the dry dispenser D only. Place the amount of detergent for
pre-washing directly inside the tub.
If all-in-one detergents are used, we recommend using the TABLET button,
because it adjusts the program so that the best washing and drying results
are always achieved.
Usage of detergent not designed for dishwashers may cause
malfunction or damage to the appliance.
WATER SOFTENING SYSTEM
Water softener automatically reduces water hardness, consequently pre-
venting scale buildup on heater, contributing also to better cleaning effi-
ciency. This system regenerates itself with salt, therefore it is required
to refill salt container when empty.
Frequency of regeneration depends on water hardness level setting - regen-
eration takes place once per 6 Eco cycles with water hardness level set to 3.
Regeneration process starts in final rinse and finishes in drying phase, be-
fore cycle ends.
• Single regeneration consumes: ~3.5L of water;
• Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.
Available
options
*)
-
- -
3 4 5 6 7 8 9 10
Duration
Water
of wash
consumption consumption
program
(litres/cycle) (kWh/cycle)
(h:min)
**)
3:20 9.5
1:25 - 3:00 7.0 - 14.0
2:50 17.0
1:25 11.5
1:40 12.0
0:30 9.0
3:30 16.0
0:12 4.5
EN
11
Energy
0.64
0.90 - 1.40
1.60
1.10
1.20
0.50
1.15
0.01
