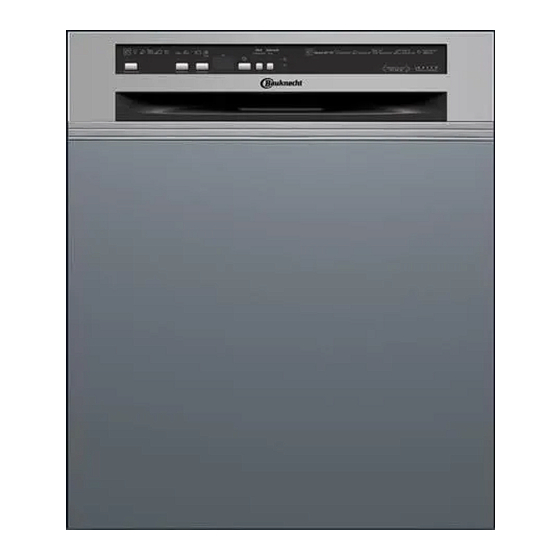

Bauknecht GSIP 6143 Manual

Before using the dishwasher, read the installation and maintenance instructions carefully!
GB GSIP 6143
Programme selection button
Press the button (repeatedly) until the indicator lamp of the
desired programme lights up (see table 1.1).
At the end of the wash cycle, the last programme selected is
memorized.
Half Load/Multizone
Load the upper or lower rack only.
Factory setting = Wash upper and lower rack (both indicator
lamps light up)
Press once = Wash lower rack (the indicator lamp lights up)
Press twice = Wash upper rack (the indicator lamp lights up)
At the end of the programme, the most recently selected setting
remains memorised.
If the upper rack is not being washed, the "Wash lower rack"
indicator lamp should be lit.
Rotating Power Clean
This function is activated by pressing (short) the button (the
indicator lamp lights up).
High pressure with an additional jet for better washing results and
greater lower rack load flexibility. At the end of the programme, the
most recently selected setting remains memorised.
Detergent setting upon initial use and when using a different
type of detergent
Indicator lamp off = Powder/gel detergent (factory setting).
If using combined detergents, press and hold the button for 3
seconds; the indicator lamp lights up = rinse aid and salt
indicators are deactivated.
From water hardness level 5, the salt indicator remains active.
At the end of the programme, the most recently selected setting
remains memorised.
P
Programmes
1
Sensor
2
Pre-Rinse
3
Glasses
4
Quickwash
5
Bio Normal
6
Overnight
1) Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads, extra
functions, different settings, water supply temperatures, water hardness and power supply voltage.
2) Programme for energy data label in conformity with EN 50242. - Information for Test Laboratories: for detailed information on the EN/Standard
loading comparison test and other tests, contact the following address: "nk_customer@whirlpool.com".

1. OVERVIEW

Table 1.1.
Programme Table
Additional
options
Normally or heavily soiled crockery,
40-70°C
including pots and pans.
cold
Crockery to be washed later.
Light soiling, for example glasses and
40°C
cups.
Lightly soiled crockery, with no dried-on
45°C
food.
Normally soiled crockery. Energy-saving
2)
50°C
programme.
Gentle, quiet cycle for normally soiled
55°C
crockery, thanks to the lower spray
pressure (39dbA).
Fault indication and wash time display
In normal operation it indicates the remaining time (h:min),
whereas with "Delayed start" selected it indicates the time
remaining until programme start (e. g. h 01). If using a sensor
programme, a dotted line indicates that the calibration process
is underway (lasting up to 20 minutes).
In the presence of a fault indication "F.. / E..", refer to Section 5
"What to do if...".
Delayed Start button
Push the button (repeatedly) to delay the start of the
programme. Adjustable from 1 to 24 hours. With each
successive touch of the button, the delayed start indicator
increases by 1 hour, and after "h 24" returns to "h 00". Then
press the START button. The wash programme will start after
the set time.
Start/Resume button
The indicator lamp lights up during operation, flashes when the
programme is interrupted before completion and switches off
at the end of the programme.
Cancel/Off button
Press the button to switch the dishwasher off or to interrupt
the selected programme.
If the Cancel/Off indicator lamp flashes repeatedly, this indicates
a fault: see chapter 5 "What to do if...".
Salt level indicator and rinse aid level indicator
These light up at the end of the programme if salt or rinse aid
needs topping up.
Only add just before starting a wash cycle.
Description of programme
Detergent
Consumption
dispenser
large small Litres kWh
X X 7-14 0.99-1.80 70-185±
— — 4.0 0.03
X — 10.0 0.85
X — 11.0 0.80
X X 11.0 0.98
X X 13.0 1.20
5019 496 01155
1)
Minutes
1)
1)
14 ±
1)
100 ±
1)
30 ±
1)
170 ±
1)
290 ±
