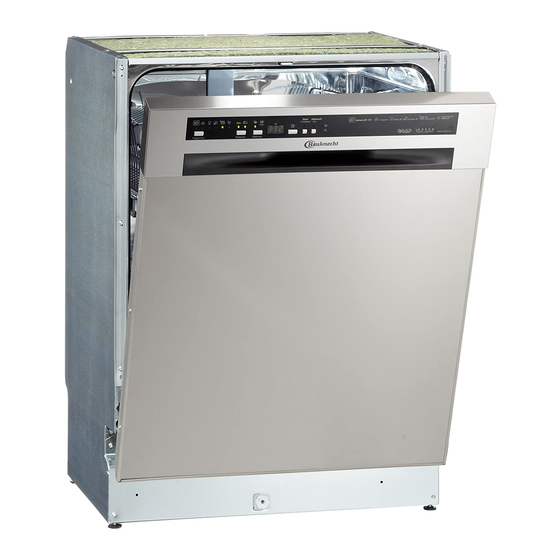

Bauknecht GSFP 6142 A+ Quick Reference Manual

Program chart
WHIRLPOOL
5019 496 01623/B
8573 030 22040
8573 030 22050
Quick reference guide
(see at right for options description)
PROGRAM SELECTION START/RESUME BUTTON
BUTTON Push this button to start the selected program: the
Push "Programs" button indicator lights up and goes off at the end of the
(repeatedly) until the indicator program.
of the required program lights When the door is opened during a washing cycle,
up (see "Table of programs" the cycle is temporarily paused: the Start indicator
below). blinks. To resume the cycle close the door and
push Start button again.
Table of programs
P
Programs
1
Sensor 40-70°C
2
Pre-Wash cold
3
Glasses 40°C
4
Quickwash 45°C
5
2)
50°C
Bio Normal
6
Overnight 55°C
1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional
options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the
appliance's automatic calibration system.
2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the
EN/Standard loading comparison test and other tests, contact the following address: "nk_customer@whirlpool.com".
CANCEL/OFF BUTTON
Push this button to switch off the control panel.
If pressed when a program is running it cancels the
program ongoing draining water for 1 minute (0:01
is shown into the display).
If pressed when the dishwasher is switched off, it
drains any possible liquids from dishwasher
(1minute process).
Available
Loading instructions
options
Normally or heavily soiled crockery,
Delay including pots and pans. None soaking
Multizone or hand pretreatment is needed. In
Power Clean addition hygiene of the complete
loading is ensured with this program.
Delay
Crockery to be washed later.
Multizone
Delay
Light soiling, for example glasses and
cups.
Multizone
Delay
Lightly soiled crockery, with no
dried-on food.
Multizone
Delay
Multizone Normally soiled crockery.
Power Clean
Normally soiled crockery, gentle and
Delay
quiet (39 dbA) thanks to the lower
Multizone
pressure jet.
BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ
THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!
THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING
AUTOMATICALLY AFTER 30 SECONDS IF NO CYCLE HAS STARTED.
Options and display description
SALT INDICATOR
When lit (at the end of the cycle),
the salt reservoir needs to be
refilled.
WASH TIME DISPLAY
Indicated the cycle duration and the remaining time (h:min). With "Delayed start" selected it indicates
the time remaining until program start (h.00) - below 1h (0:mim).
If "Fx Ey" messages appears on the display, see page 6 - chapter "What to do if...".
Consumption
Deter-
MULTIZONE
gent
Allows you to choose the washing
1)
Litres kWh
Minutes
zones. Press this button (repeatedly)
to select the wash zones:
X 7-14 1.00-1.80 70-185
— 4.0 0.03 14
X 10.0 0.85 100
X 11.0 0.80 30
POWER CLEAN
Thanks to the additional power jets
this option provides a more intensive
and powerful wash in the lower rack,
X 11.0 0.98 150
in the specific area. This option is
recommended for washing pots and
casseroles (see page 4). Press this
button to activate Power Clean (the
X 13.0 1.20 290
indicator lights up).
GSFP 6142 DI
ANY BUTTON EXCEPT CANCEL/OFF BUTTON.
FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES
both racks
only lower rack
only upper rack
TABLET SETTING
This setting allows to
- indicator lits optimize the cycle
performances according
the type of detergent
used. Push the Tablet
button for 3 seconds (until
the indicator lights up) if
you are using the
combined detergents in
tablet (rinse aid, salt and
detergent in 1 dose). If you
are using powder
detergent or liquid
detergent, the Tablet
indicator on the control
panel has to be off.
A+
Chart
RINSE AID INDICATOR
When lit (at the end of the cycle),
the rinse aid dispenser needs to
be refilled.
DELAYED START
BUTTON
Push the button
(repeatedly) to delay the
start of the program.
Adjustable from 1 to 24
hours. With each press of
the button, the delayed
start indicator increases
by one hour and after 24
restarts from 0. Then
press the START button.
The dishwasher will start
after the set time.
5019 496 01623
5019 496 01623/B
GB -1-
