Rohde & Schwarz R&S FSH Service Manual

Rohde & Schwarz R&S FSH Service Manual

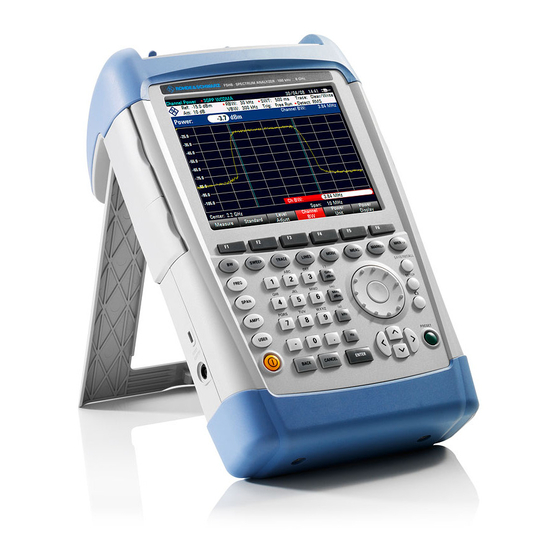

Handheld spectrum analyzer
